Technical Information

G 1xxx/G 2xxx

Position 3 - Drying, latch completely extended, Drying plus position:

After the end of the wash sequence, the latch extends by approximately

3.5 inches (9 centimeters), but the door lock remains locked. See Figure 020-7.

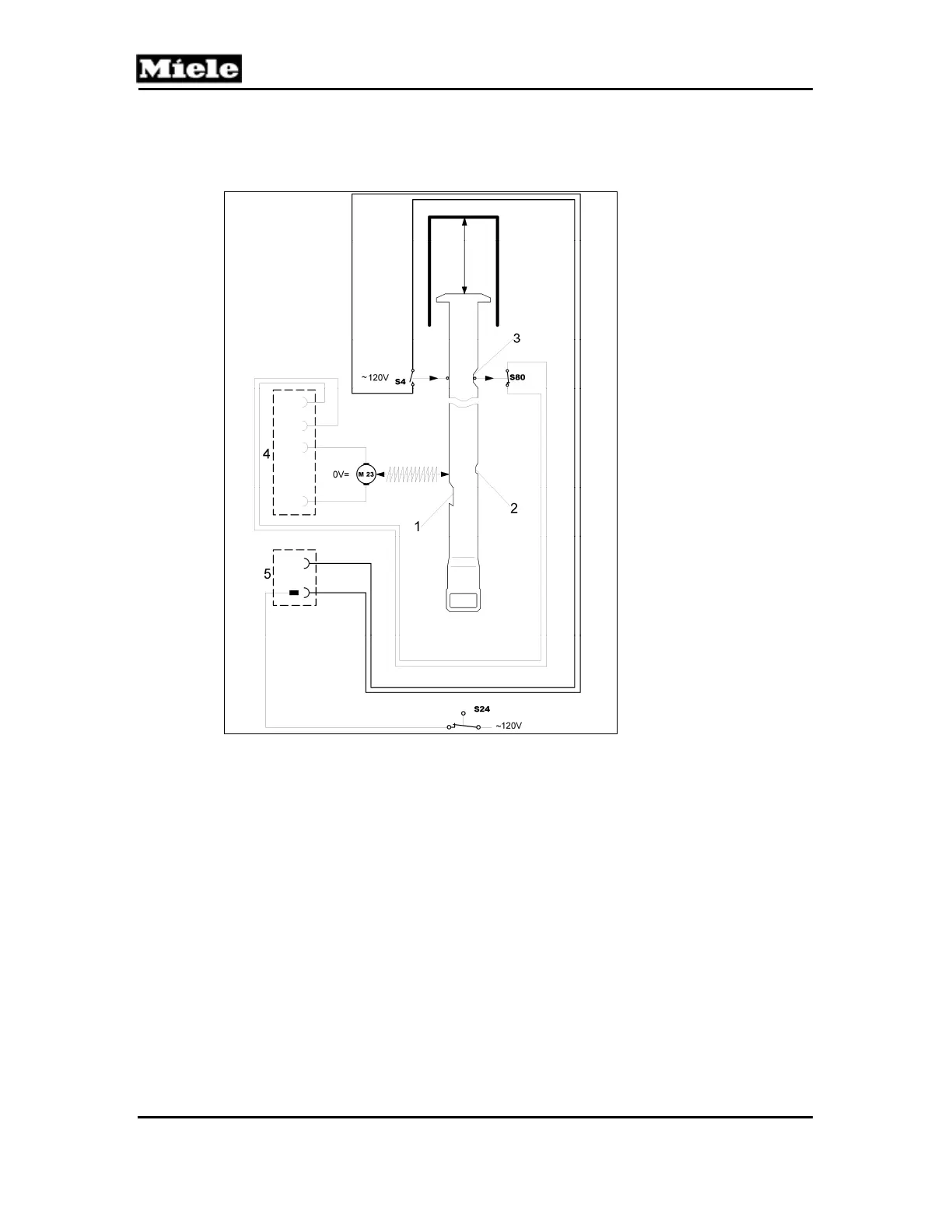

Figure 020-7: Door Lock Latch, Position 3

1, 2, 3

Latch positions 1, 2, 3

Plug 2

Plug 1

Door switch (supply voltage 120VAC), open

S80

Door movement switch (low voltage), closed

S24

Door contact switch (supply voltage 120VAC), closed

M23

Door-locking motor (DC motor); no voltage applied
