Technical Information
65
G 1xxx/G 2xxx
4 Service

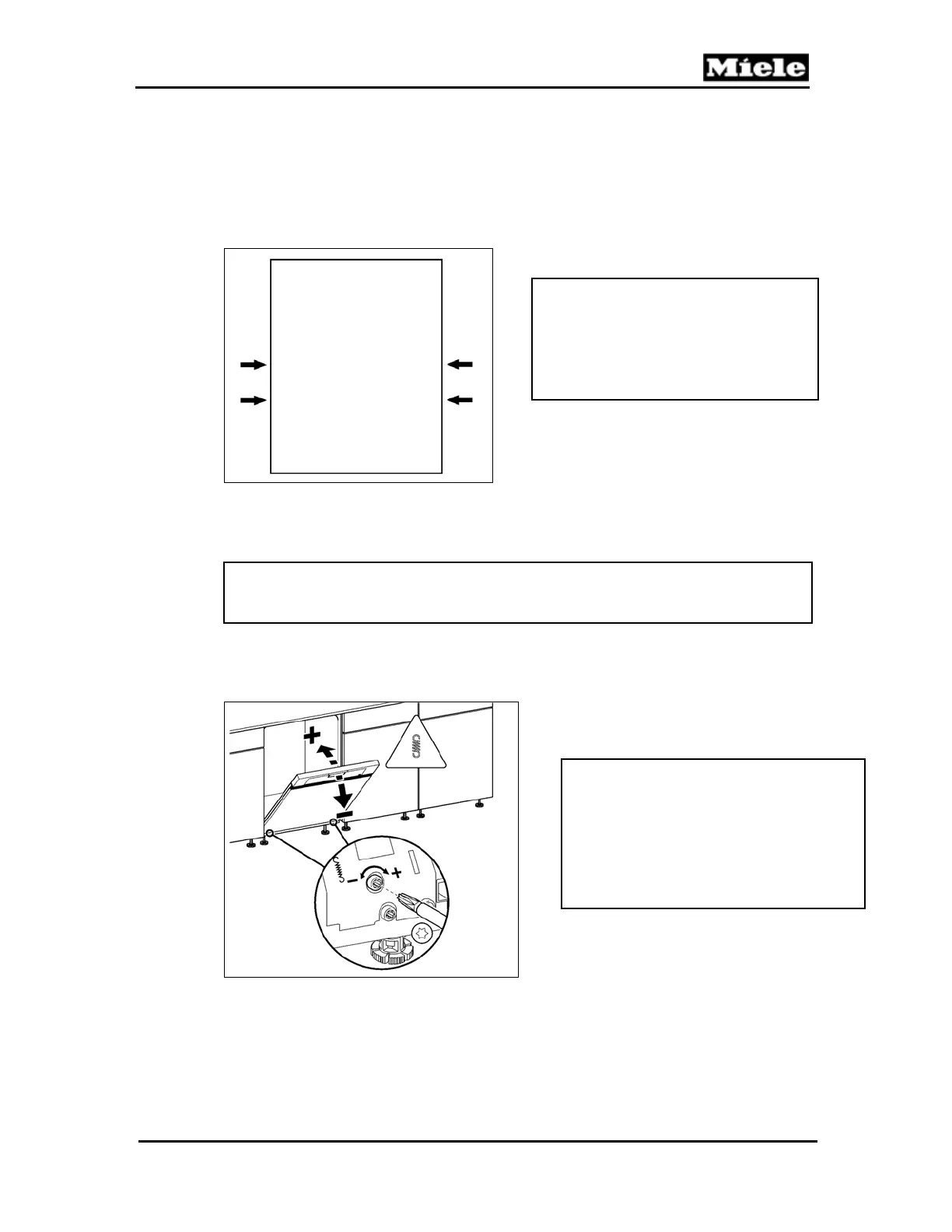

4.1 Custom Door Panel (GDU) Removal
1. Remove the screw caps from the sides of the door (2 per side).
2. Support the panel while loosening the 4 screws; see Figure 030-1.
3. Lift/remove the panel from the appliance.
Figure 030-1: Integrated Door Panel Screw Locations
4.2 Door Tension Adjustment
Note:
The front door must be completely assembled before performing the door
adjustment. This includes the installation of the GDU or custom panel.
1. Remove the toekick (Section 040-4.3).
2. Open the door halfway. See Figure 030-2.
3. Adjust the tension using a Torx T-20 screwdriver.
Figure 030-2: Door Tension Adjustment
Important:
1. Loosen the screws only; do
NOT completely remove them.
2. During reassembly, do NOT
over-tighten the screws.
Important:
The door tension should be adjusted
so the door stays in place when
opened. It should neither spring
open nor require a loaded basket to
hold it in place to prevent it from
closin
.
