Technical Information
114
G 1xxx/G 2xxx
4.28 Filter Combination Assembly (New Microfine Filter and Handle)
Note:
During assembly, the dishwasher is used as a guide.
If a new microfine filter and handle (crown coarse filter) are used, a locking
piece is not required.
1. Place the microfine filter in the sump. Ensure that the lug is positioned
towards the rear of the machine.
2. Turn the microfine filter clockwise as far as possible; see Figure 050-26.
3. Install the large surface area fine filter.

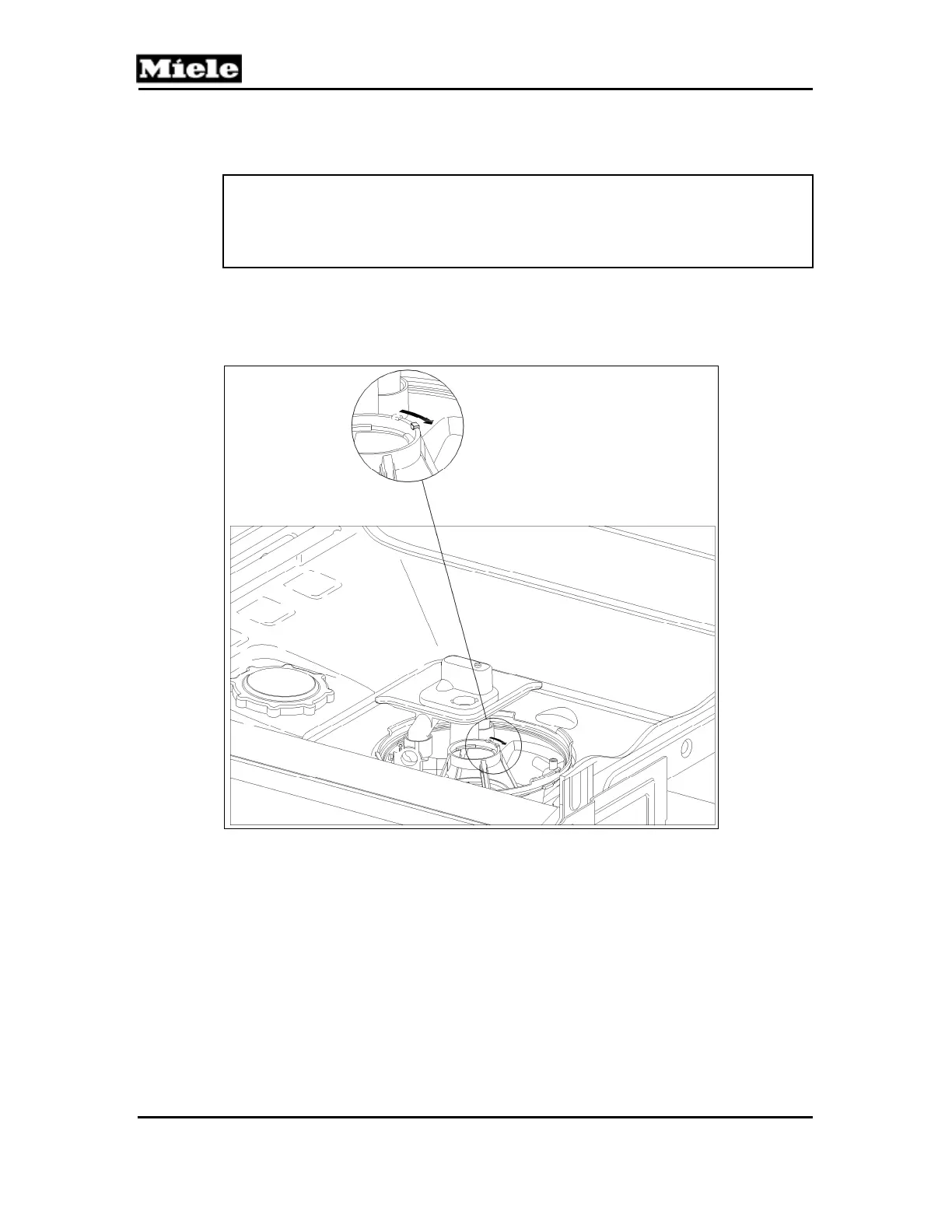

Figure 050-26: Microfine Filter Installation
4. Press the large surface area fine filter downwards; see Figure 050-27, Item 1.
5. Install the handle (crown coarse filter) and turn it clockwise as far as possible;
see Figure 050-27, Item 2.
6. Carry out a visual check: The handle (crown coarse filter) should be parallel
to the door as shown in Figure 050-27.
7. Carry out a functional check: Remove the filter combination and re-install it.
