Technical Information

G 1xxx/G 2xxx

3.5 G 1262, G 2170, G x18x (Optima Slimline, Advanta, Diamante,

Inspira with Incognito)

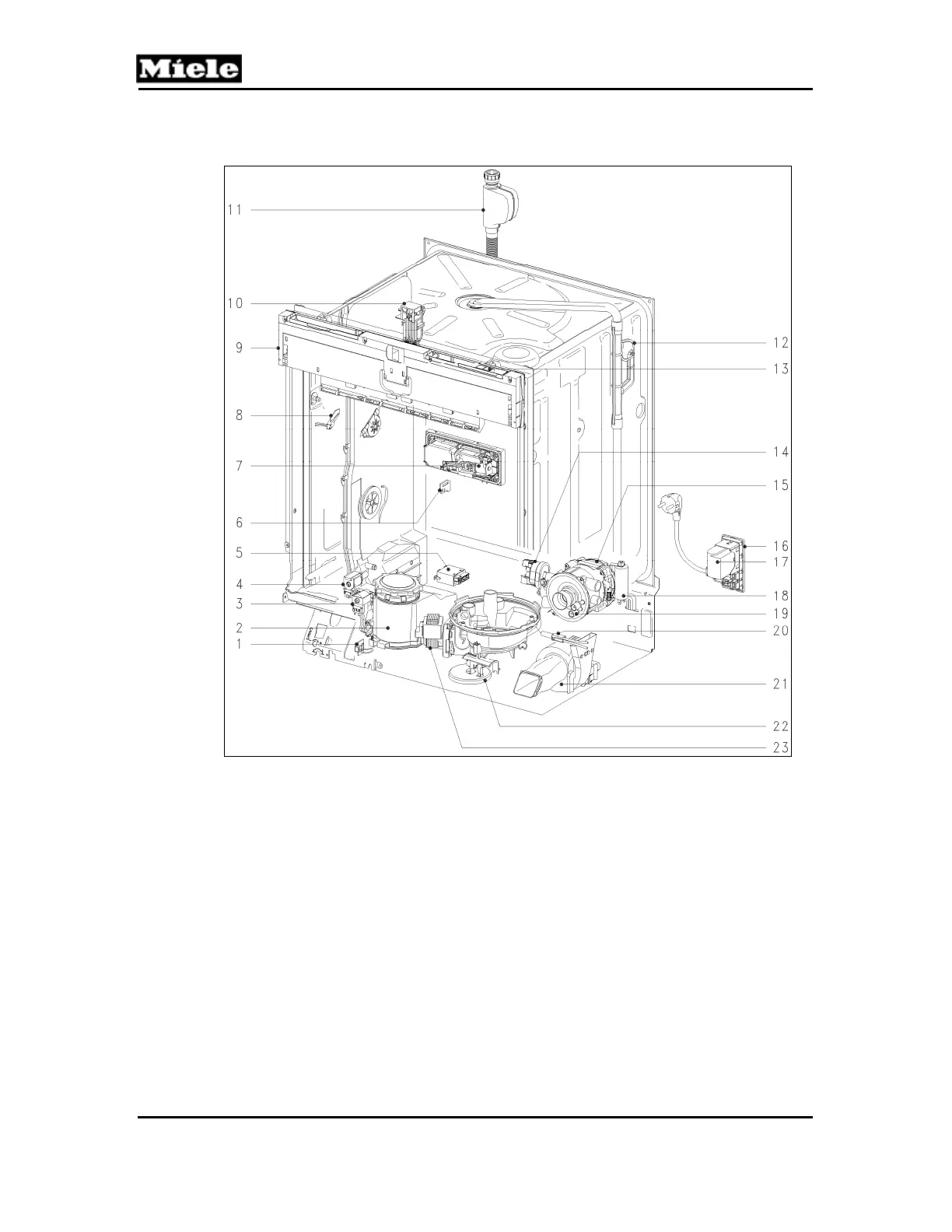

Figure D-24: G 1262, G 2170, G x18x Component Layout

Salt float switch, B8/2 (not G 1262)

Main switch, S2

Salt container (not G 1262)

Heater pressure switch, B1/13

Reactivation solenoid, Y38

Circulation pump (MPEH), M6

Wash-water hardness solenoid, Y5

Terminal block, X3/1

Heater relay, K1/1

Interference suppression, Z1

Rinse aid float switch, B8/1

Circulation pump capacitor, C6

Combination dispenser solenoid, Y50

Heater, R1

Flow rate sensor, B3/4

Temperature sensor (NTC), R30

Electronic, 1N1

Fan, M2

Door contact switch, S24

Overflow float switch, B8/3

Water intake solenoid, Y2

Drain pump, M8

Turbidity sensor, B3/10
