G 1xxx/G 2xxx

Intermediate position, closing:

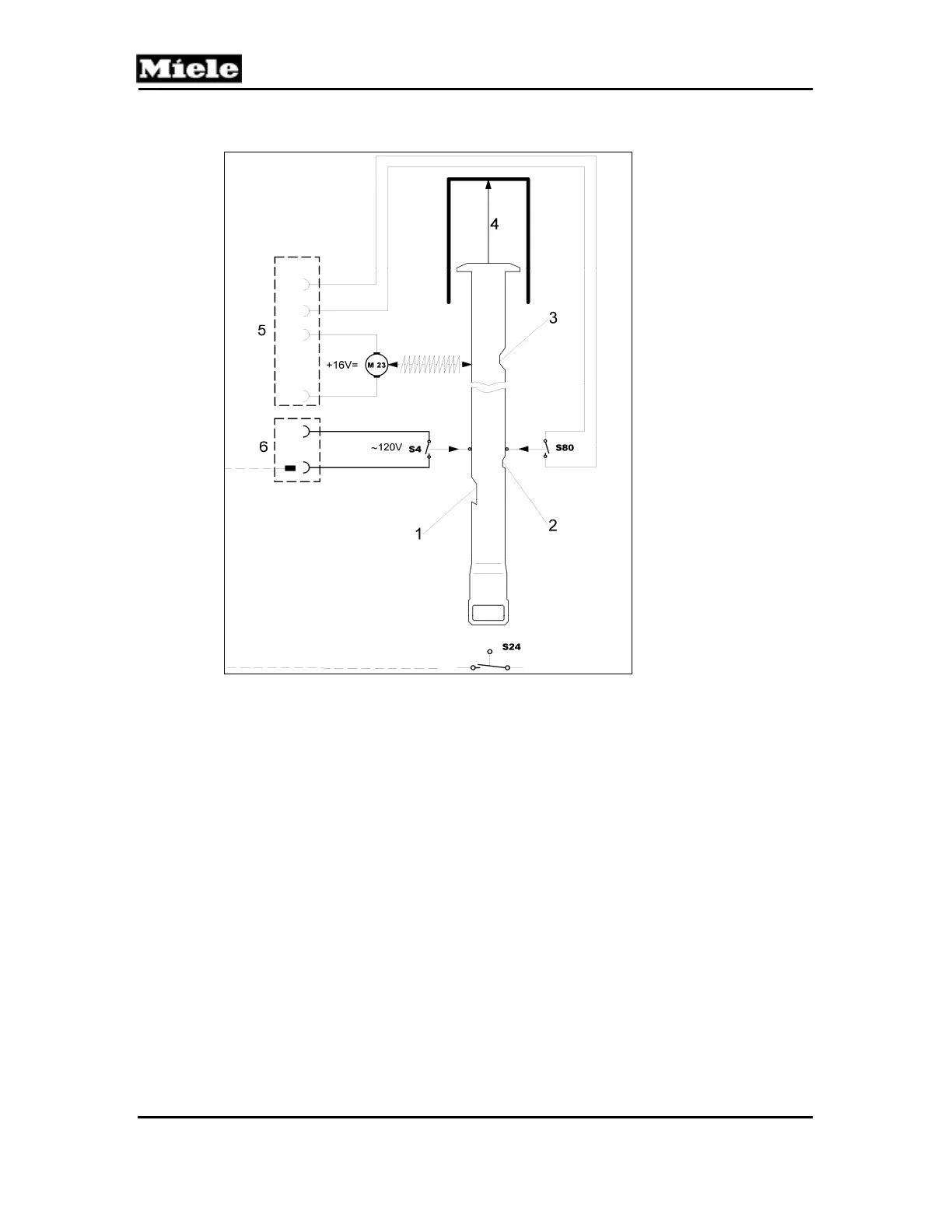

Figure 020-9: Door Lock Latch, Intermediate Closing Position

1, 2, 3

Latch positions 1, 2, 3

Direction of latch movement

Plug 2

Plug 1

Door switch (supply voltage 120VAC), open

S80

Door movement switch (low voltage), open

S24

Door contact switch (supply voltage 120VAC), open

M23

Door-locking motor (DC motor); voltage applied, motor is closing door

The function can be tested using component test V18; see Section 080-2.2.1.

For service mode access and component test selection, see Section 080-4.3.11.
