MAINTENANCE OPERATIONS
This section explains simple maintenance procedures. See the relevant Group in this manual for further details.

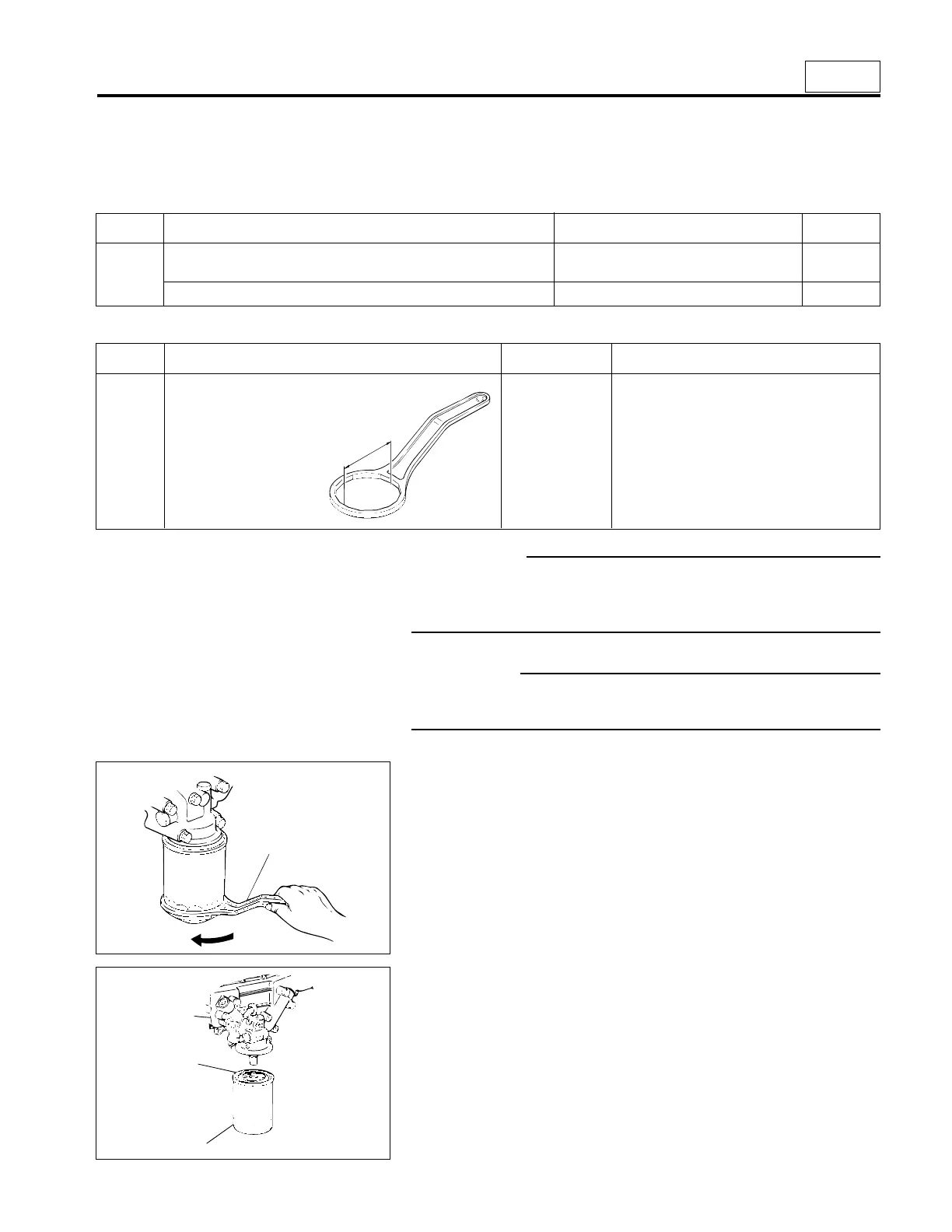

Replacement of Oil Filter
- Lubricant
Location Points of application Kinds Quantity
2 Inside oil filter Engine oil
Approximately
1 L {1.1 qts}
Gasket area of oil filter with thin application Engine oil As required
10818
[Installation]
• Clean the surface of oil cooler body 1 that makes contact with oil filter
2.
• Apply engine oil thinly and evenly to gasket area A of oil filter 2.
• Screw oil filter 2 into oil cooler body 1 until gasket area A sits on the
body. From this position, tighten further by rotating by three quarters of
a turn.
• After installation, run the engine and check that there is no oil leakage
from gasket area A.
• Check the oil level and if it is low, top it up.
1
A
2
06446
0
0 Special tools Unit : mm {in.}
Location Tool name and shape Part No. Application
2 Oil filter wrench MH061587 Removal of oil filter
06478
101.2 {3.98}
WARNING–
• Wipe up any engine oil that has been spilled because it can
cause a fire.
• Do not touch the engine while it is hot because it will burn you.
CAUTION–
Take care not to spill engine oil on the V-belts, because this
would cause them to slip, reducing service life.
[Removal]
