01-17
01

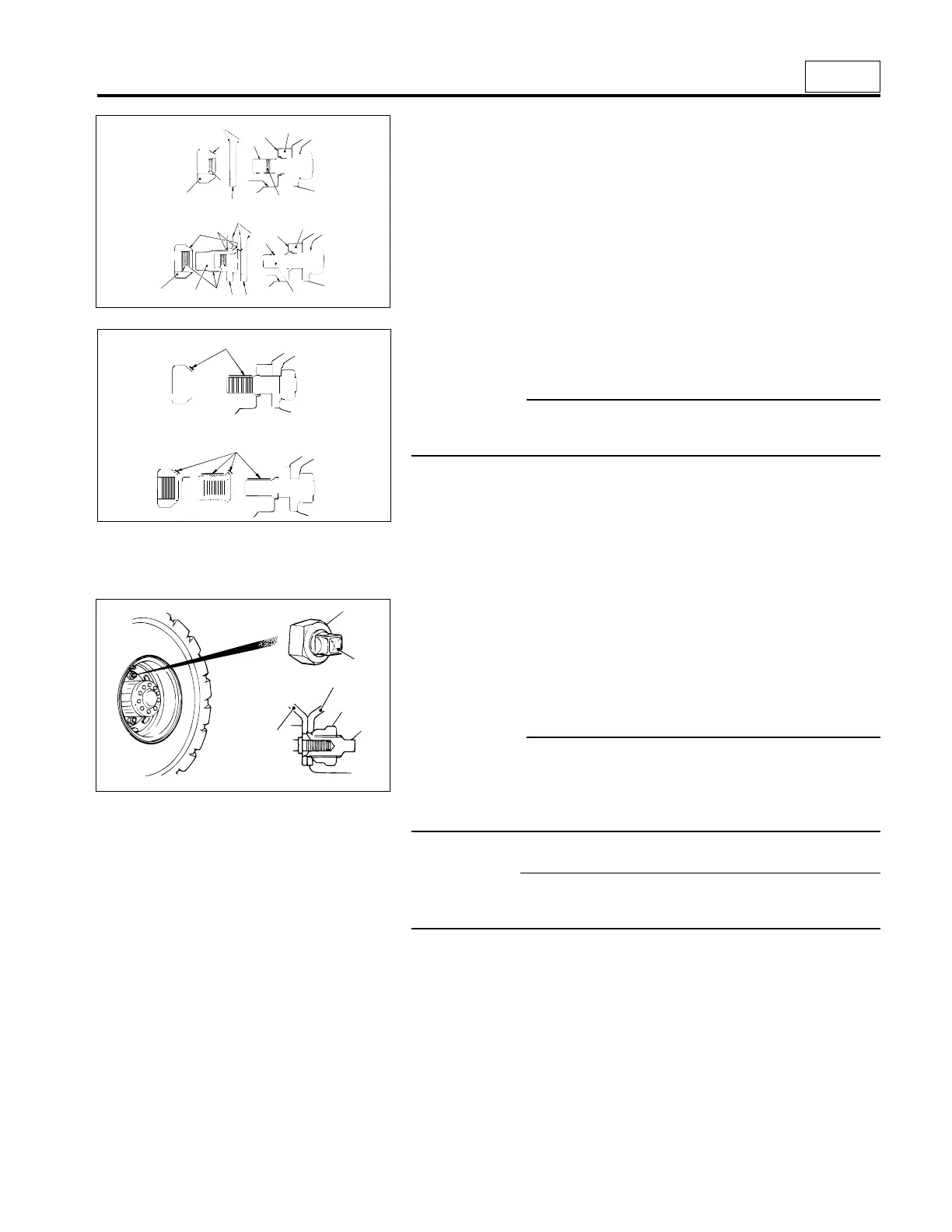

Mounting tires
• To prevent wheel nuts 2, 4 and hub bolt 6 from becoming loose and to
prevent mounting parts (tire assemblies 3, 5 and hub 7) from being
damaged, remove rust, dust, additional coatings of paint, and foreign
particles from the following areas:
F : Hub bolt thread area
G : Wheel mounting surface of hub
H : Wheel alignment area of hub
J : Disc wheel mating surface
K : Disc wheel nut mounting surface
L : Wheel nut thread area
M: Wheel nut spherical area
N : Grease application area
WARNING–
Never use grease containing molybdenum disulfide, since it can
cause loosening of fitted screws.
06707
• Put on the double rear tires as follows:
• After mounting inner tire 5 and fully tightening inner wheel nuts 4,
jack the vehicle up and mount on outer tire 3, then tighten outer
wheel nuts 2.
• Even if only outside tire 3 is to be changed, do not mount it until
inner wheel nuts 4 have been fastened at the specified torque.
• Slide the air valves on the inside and outside tires down when
mounting the tires.
WARNING–
If the threads are scored, or the disc wheel is deformed or
cracked, change bolts 6, nuts 2, 4 and disc. Driving the truck
before correcting such problems can cause the tire in question to
come loose, which could be the source of major accidents.
CAUTION–
Check hub bolt 6 threads carefully for scratches before putting
the tire on.
• Place the tapered end of wheel nuts 2, 4 towards the disc wheel and
fasten temporarily. Center so that there is no eccentricity between
bolts 6 and the disc wheel bolt holes.
• Lower the vehicle.
N
N
00626
5
3
2
4
4
2
06706
5
7
G
F
J
2
L
6
M
K
J
7
F
G
L
4
2
3
H
6
3
H
M
