- Lubricant
Location Points of application Kinds Quantity
3 Thread area of bolt Engine oil As required
9, 10 Inner surface of camshaft bushing Engine oil As required
12, 13

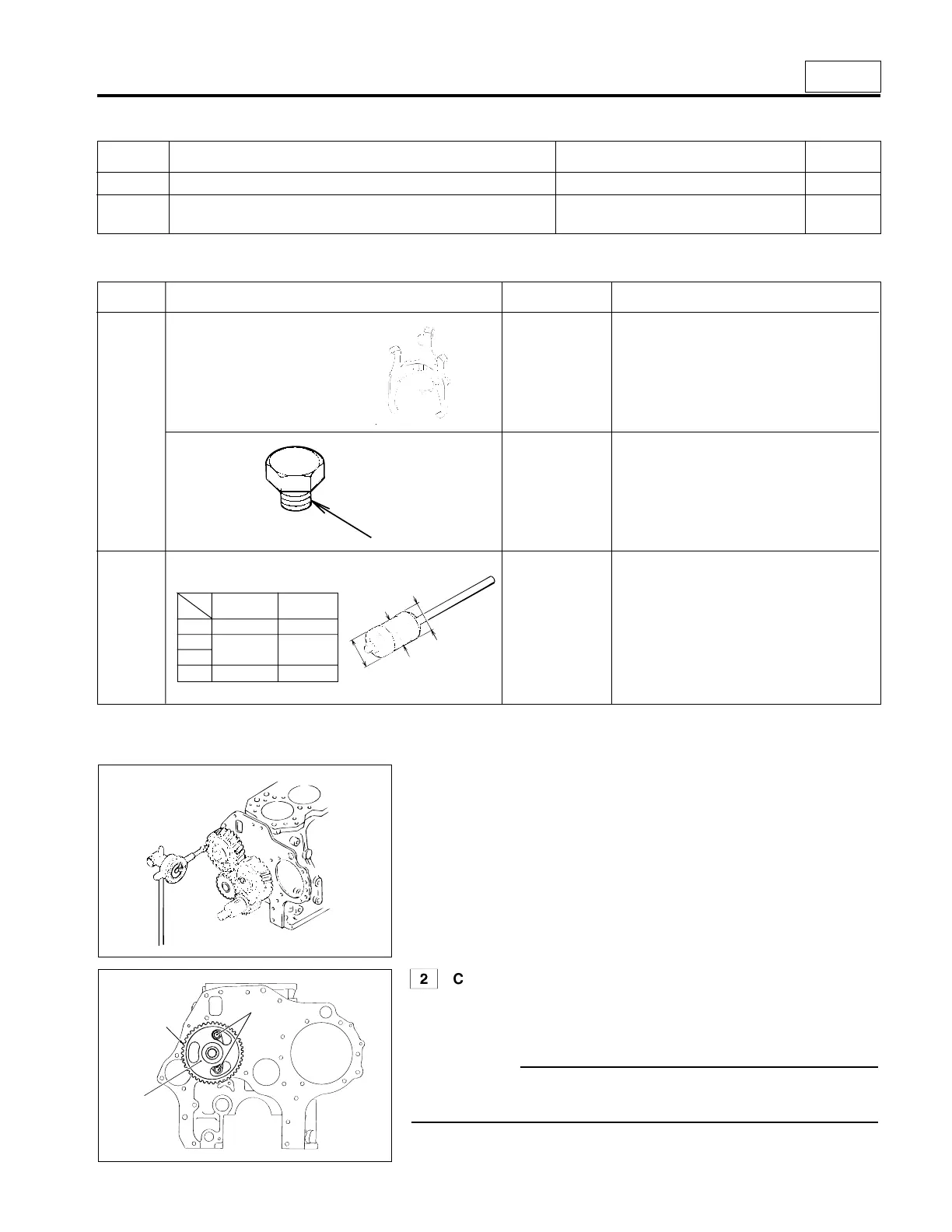

◆ Service procedure
● Inspection before disassembly
Camshaft end play
If the measured value is higher than the limit, replace the faulty parts.
12650
2
Camshaft assembly
[Removal]
Remove camshaft assembly 2 by undoing bolts 1 through the holes in
camshaft gear 5.
CAUTION–
Be careful not to damage the camshaft bushings when you
remove camshaft assembly 2.
12651
1
5
2
0 Special tools Unit : mm {in.}
Location Tool name and shape Part No. Application
Gear puller MH061326 Removal of camshaft gear
5
Plug MF665004 Blind plug for removal of camshaft gear
Camshaft bushing
installer and extractor
9, 10,
MH061276 Removal and press-fitting of camshaft
12, 13
bushing
02065
03543
02083
M14×1.5
B
C
A
A, CB
Dimension Dimension
No. 1 ø58.5 {2.30} ø54.5 {2.15}
No. 2
ø58 {2.28} ø54.5 {2.15}
No. 3
No. 4 ø57 {2.24} ø53 {2.09}
