< If interference is sufficient >
• Press-fit cylinder sleeve 6 into crankcase *2 from the chamfered end
using 0 cylinder sleeve installer.
NOTE
Align the top of cylinder sleeve 6 with the top of crankcase *2
when press-fitting.
• After press-fitting, make the inner diameter of cylinder sleeve 6 con-
form to the standard value by honing the surface.
< If interference is insufficient >
• Prepare cylinder sleeve 6 which is 0.5 mm {0.020 in.} oversize in
diameter.
• Hone crankcase *2, making the clearance between the outer diam-
eter of cylinder sleeve 6 and the sleeve hole of crankcase *2 conform
to the standard value.
• Press-fit cylinder sleeve 6 into crankcase *2 from the chamfered end
using 0 cylinder sleeve installer.
NOTE
Align the upper face of cylinder sleeve 6 with the upper face of
crankcase *2 when press-fitting.
• After press-fitting, make the inner diameter of cylinder sleeve 6 con-
form to the standard value by honing the surface.

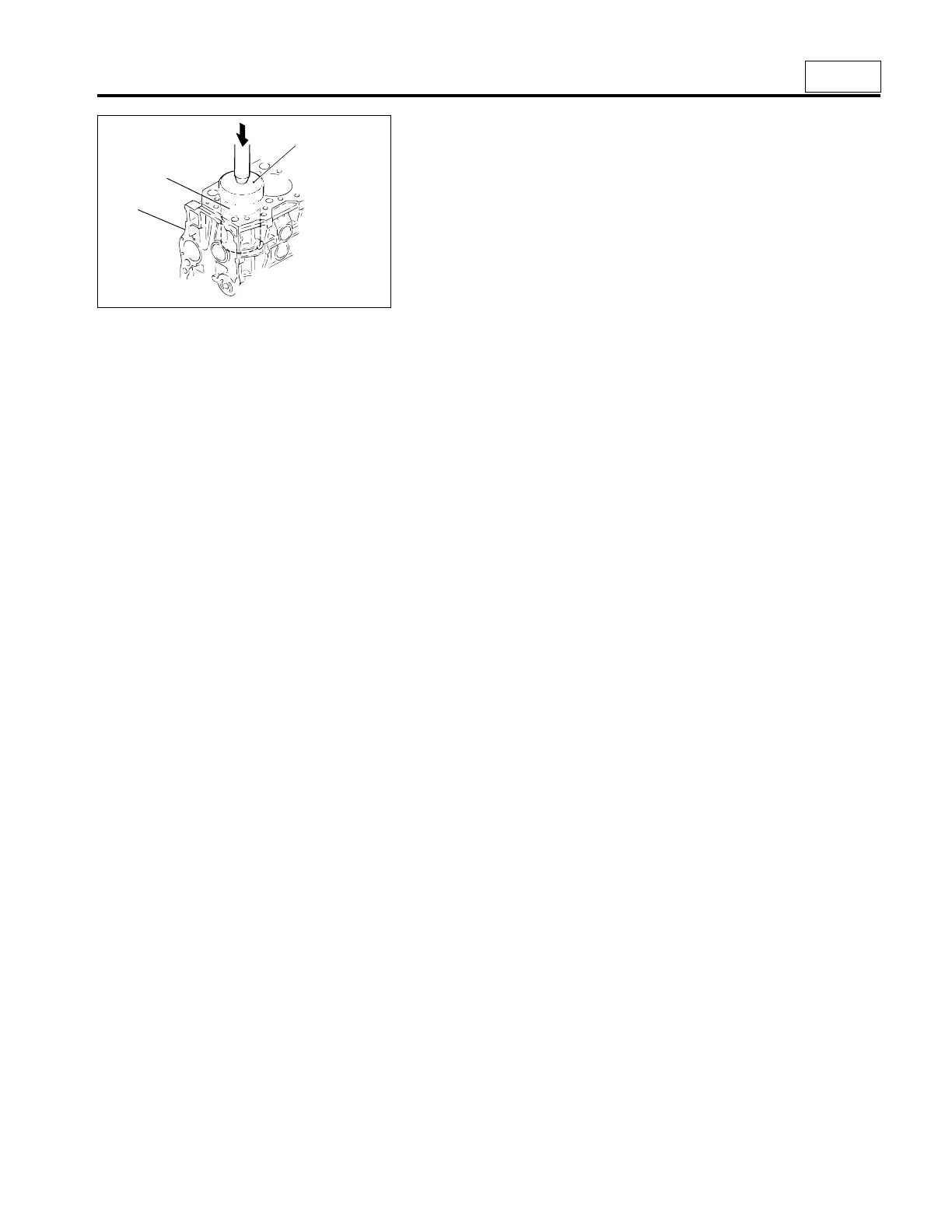

03346
0
*2
6
