Mitsubishi FUSO FH 1997 User Manual

11-48

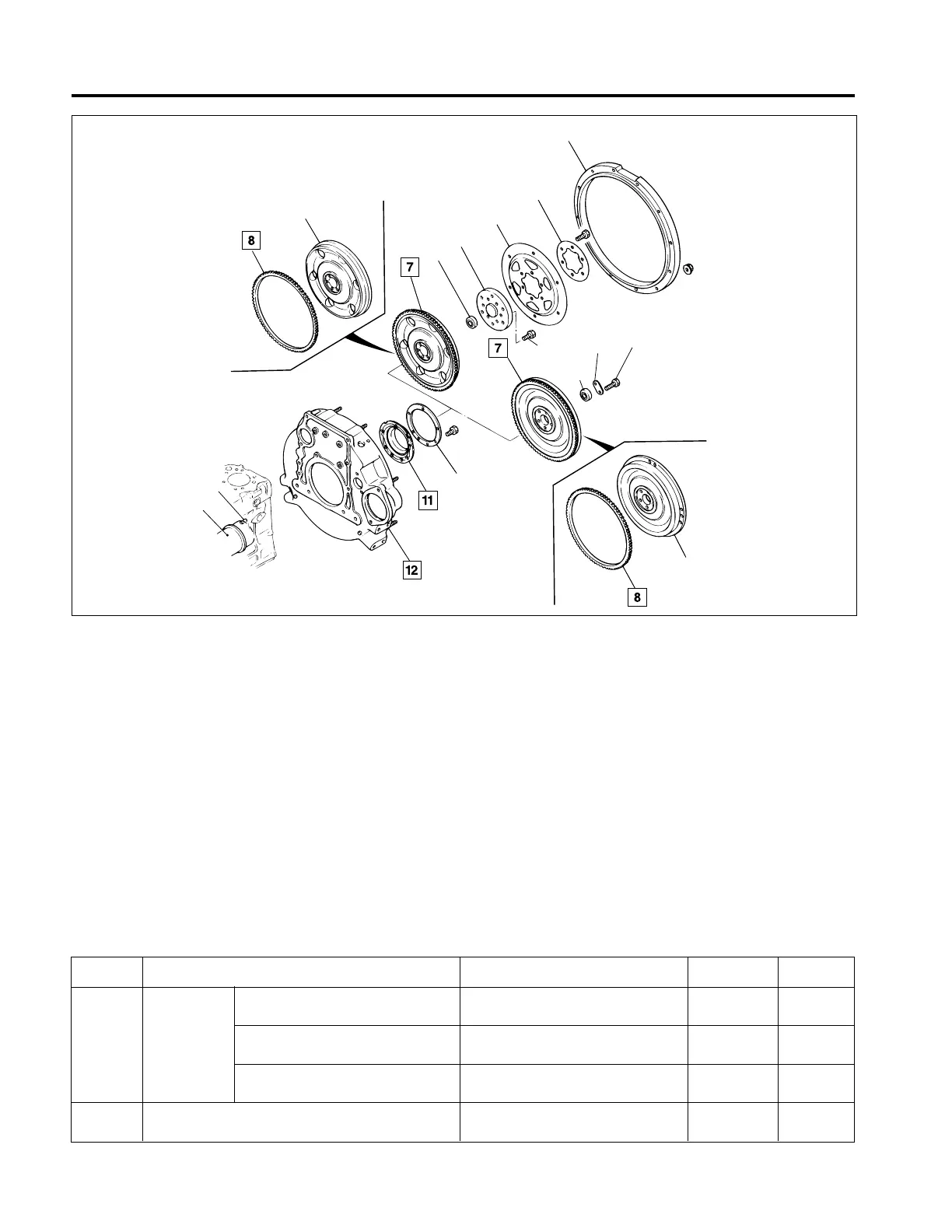

FLYWHEEL
12719
3
4
6
5
1
9
10
-
A
9
*
● Disassembly sequence
1 Flywheel housing adaptor
< Automatic transmission >
2 Bolt
3 Plate < Manual transmission >
Wear plate
< Automatic transmission >
4 Flex plate
< Automatic transmission >
5 Flywheel adaptor
< Automatic transmission >
6 Bearing
7 Flywheel assembly
8 Ring gear
9 Flywheel
10 Washer plate
11 Rear oil seal
12 Flywheel housing
* : Crankshaft assembly Õ P11-52
A : Positioning pin
< Automatic transmission >
< Manual transmission >
Service standards Unit : mm {in.}
Location Maintenance item Standard value Limit Remedy
7 Height from bolt mounting surface 20 {0.787} 19 {0.748} Correct
to friction surface or replace
Distortion of friction surface 0.050 {0.002} or less 0.2 {0.008} Correct
or replace
Wobble of friction surface when — 0.2 {0.008} Correct
installed or replace
12 Eccentricity of flywheel housing when install — 0.2 {0.008} Inspect
or replace
● Assembly sequence
Follow the disassembly sequence in reverse.
NOTE
Be sure to check wobble of flywheel 9 after installing flywheel assembly 7. Õ P11-49
Flywheel
assembly
< Manual
transmission >
2 Ê-
2 Ê-
3
6
