STRUCTURE AND OPERATION

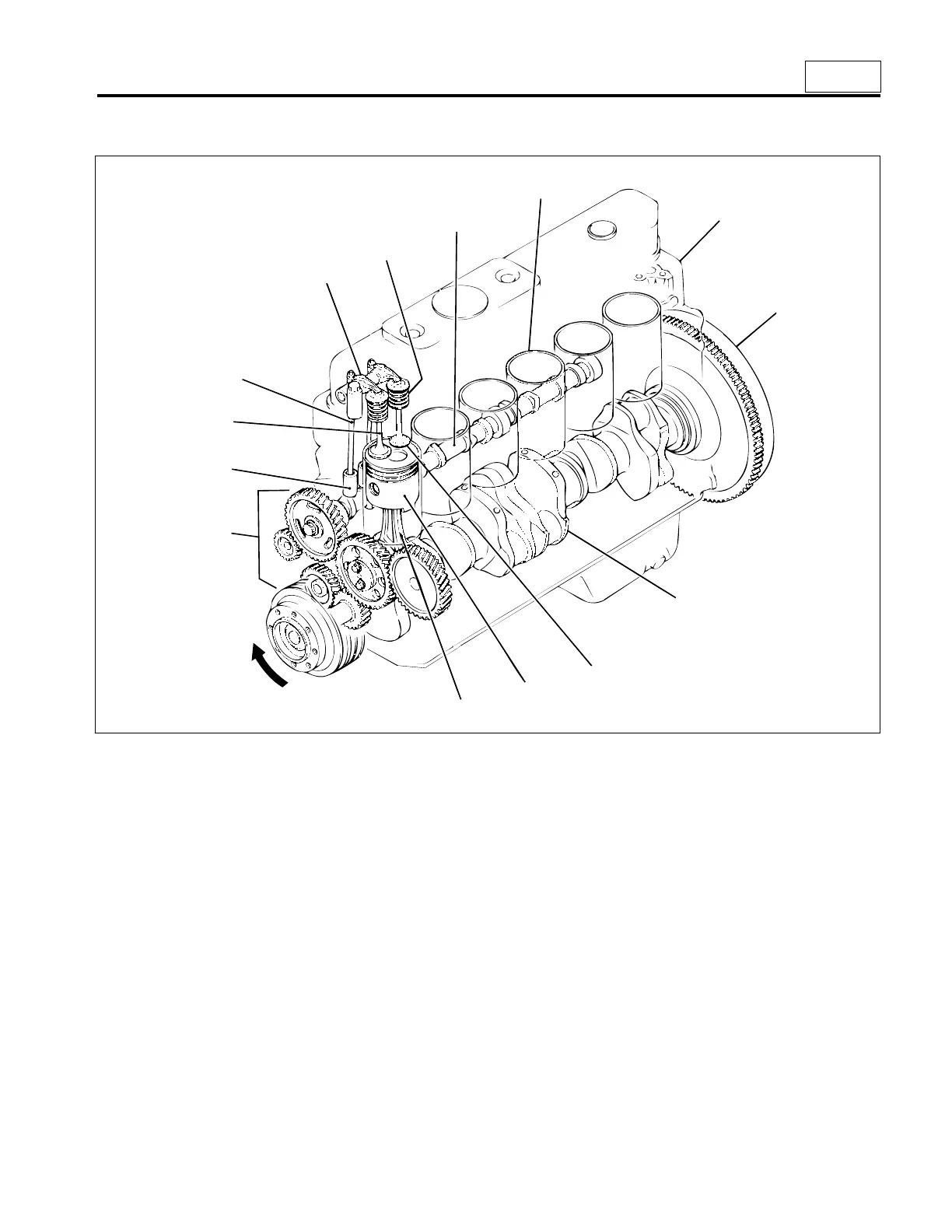

Engine Body
12384
1 Rocker arm
2 Valve spring
3 Camshaft
4 Cylinder sleeve
5 Cylinder head
6 Flywheel
7 Crankshaft
8 Exhaust valve
9 Piston
10 Connecting rod
11 Timing gear
12 Tappet
13 Inlet valve
14 Push rod
A : Direction of rotation
10
A
11
13
12
14
1
2
3
4
5
6
7
8
9
