01-36
Power Steering Fluid
Ê Tightening torque Unit : N·m {lbf.ft, kgf·m}
Location Parts to be tightened Tightening torque Remarks
3 Oil pipe 66.69±12.75 {49±9.4, 6.8±1.3} —
LUBRICATION
01340
WARNING–
Because the brake booster (hydraulic booster) uses power steer-
ing fluid, do not let other fluids such as brake fluid, etc. get mixed
with the power steering fluid inside the power steering oil tank.
[Inspection and replenishment]
• Straighten the front wheels and stop the engine.

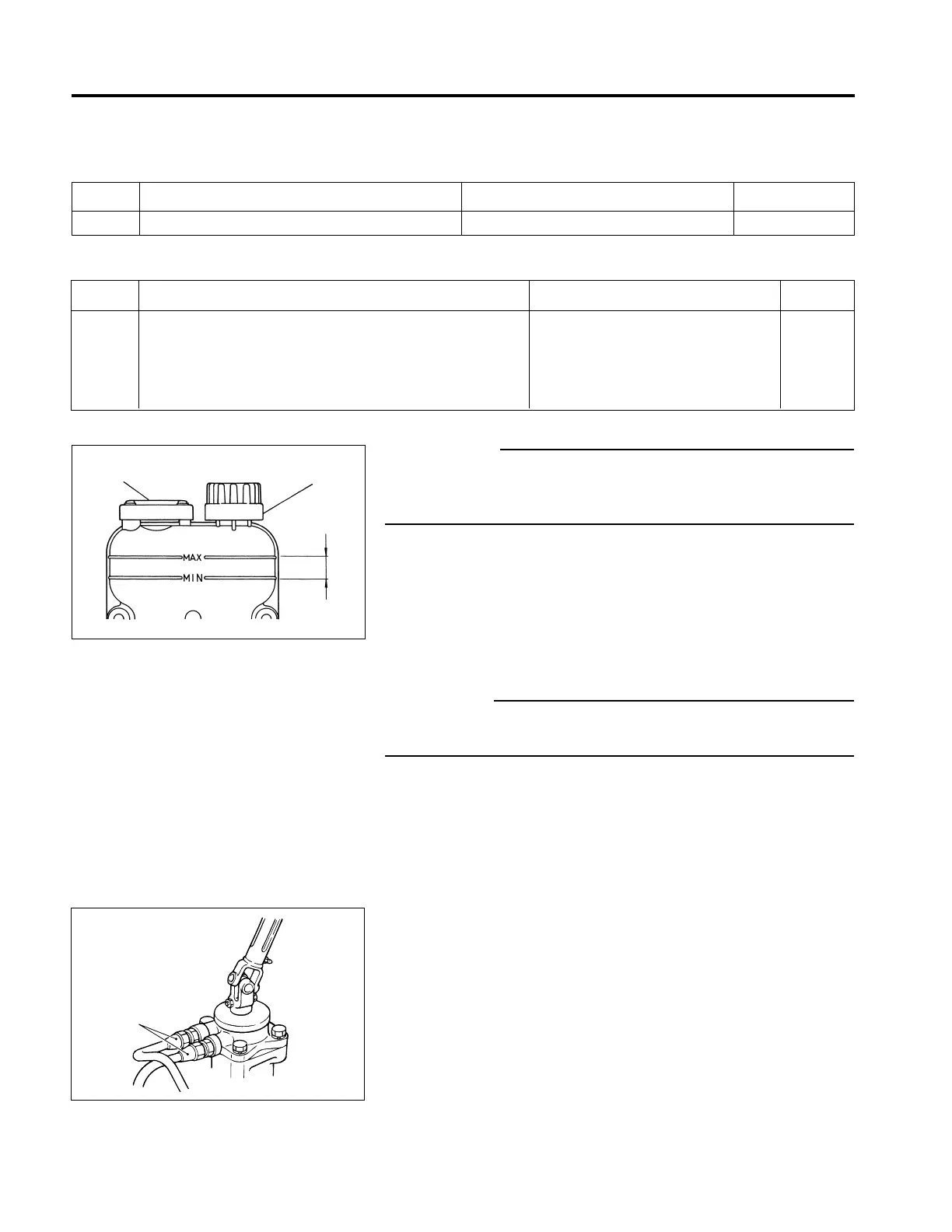

• Inspect the level of the fluid in power steering oil tank 1. It should fall
between fluid level range A.
• If it is below the “MIN” level, remove filler cap 2 from power steering
oil tank 1, then supply the specified fluid until the level has come up to
the “MAX” level. Do not fill above the “MAX” level.
CAUTION–
If the fluid level is far below the recommended range, the fluid
may be leaking.
- Fluid
Location Points of application Specified fluid Quantity
1 Power steering oil tank Automatic transmission fluid
(DEXRON or DEXRON II type)
Between
"MAX" and
"MIN" on
the power
steering oil
tank
[Replacement]
• Drainage
• Jack up the front wheels.
• Disconnect oil pipe 3 connected to the power steering booster.
• Turn the steering wheel fully left and right repeatedly, and drain the
fluid from the power steering booster.
• After draining the fluid, tighten oil pipe 3 at specified torque.
12603
3
2
1
A
