01-31
01
Manual Transmission Gear Oil
Ê Tightening torque Unit : N·m {lbf.ft, kgf·m}
Location Parts to be tightened Tightening torque Remarks
1 Inspection plug 69±15 {51±11, 7±1.5} —
2 Drain plug 69±15 {51±11, 7±1.5} —
- Sealant
Location Points of application Specified sealant Quantity
1 Thread area of inspection plug THREEBOND 1105D As required
2 Thread area of drain plug THREEBOND 1105D As required
WARNING–
The engine is hot immediately after the vehicle stopped, so take
care not to burn yourself.

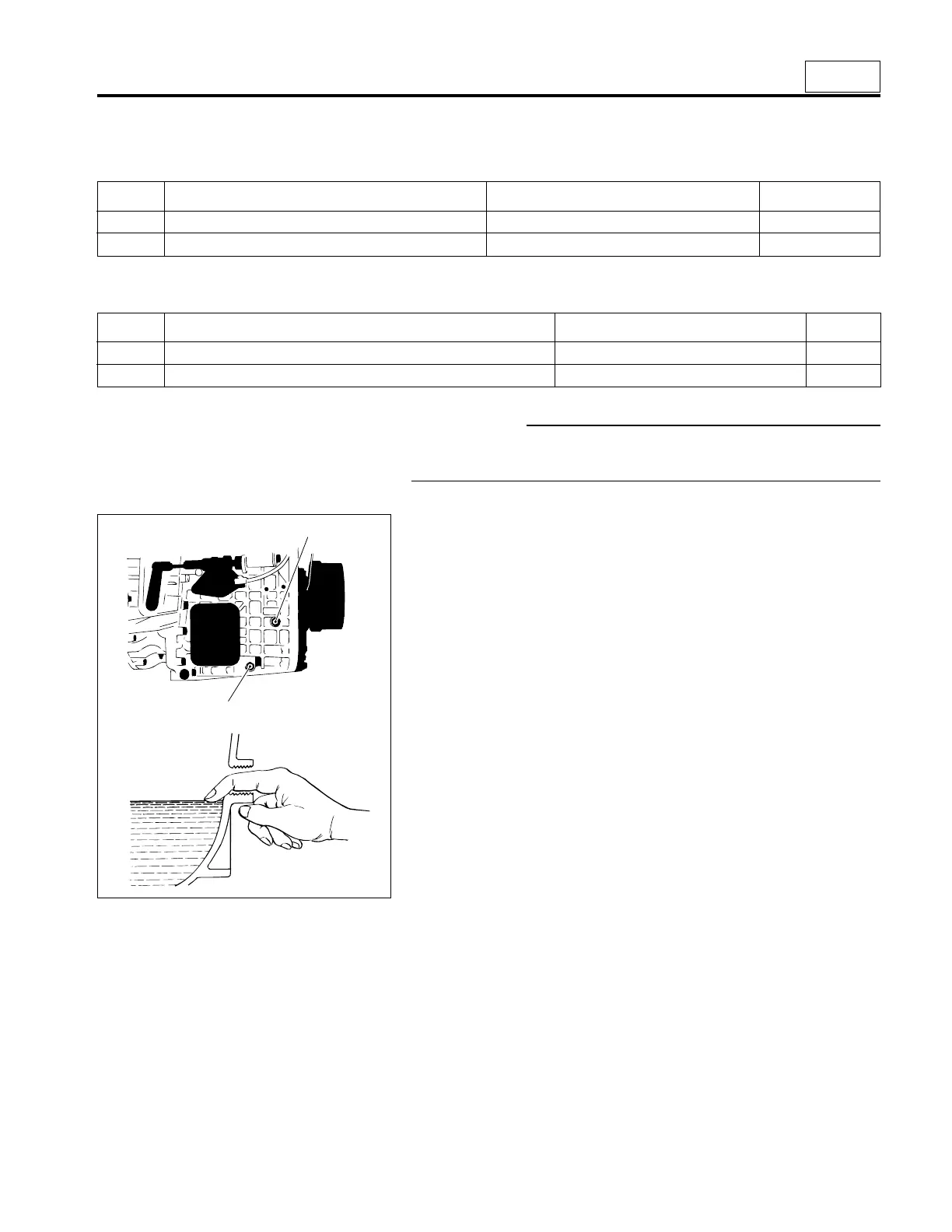

[Inspection and replenishment]
• Remove inspection plug 1 and check whether the oil level is up to the
edge of the entrance.
• If the level is low, add oil through the inspection plug hole until the
level comes up to the edge of the entrance.
02199
02336
[Replacement]
• Drain the oil after removing inspection plug 1 and drain plug 2.
• Remove any metal particles sticking to the magnetic part of drain plug
2 before reinstalling the plug.
• Add oil through the inspection plug hole until the level comes up to the
edge of the entrance.
• Insert inspection plug 1.
2
1
To Next Page
