11-43
11

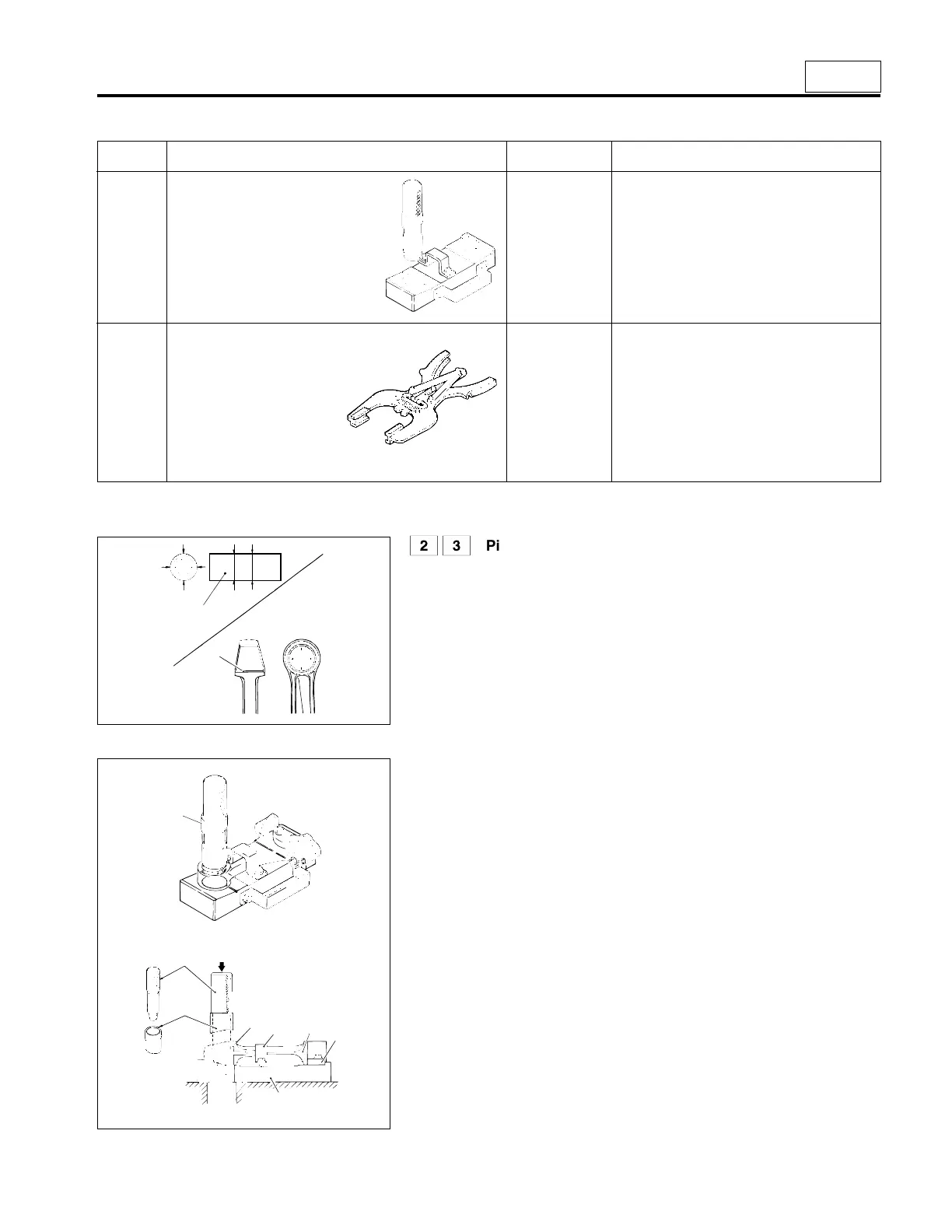

0 Special tools Unit : mm {in.}
Location Tool name and shape Part No. Application
3 Connecting rod bushing puller kit MH062225 Removal and installation of connecting
rod bushing
5 to 7 Piston ring tool MH060014 Removal and installation of piston ring
02013
02015
12171
Connecting rod bushing
Use 0 connecting rod bushing puller kit to replace connecting rod
bushing 3.
(Components of 0 connecting rod bushing puller kit)
A : Base B : Bracket C : Puller D : Collar
E : Plate F : Collar G :
Nut
[Pulling-out]
• Remove upper connecting rod bearing from the big end of connecting
rod 4.
• Place connecting rod 4 on base A and fix it to the base at two points,
bracket B and plate E.
• Fit collar D in puller C in the direction as illustrated, and pull out
connecting rod bushing 3 with a gradual load of approximately 49 kN
{11020 lbf, 5000 kgf}.
02020
02019
C
D
3
B
4
E
A
◆ Service procedure
23
Piston pin and connecting rod bushing
[Inspection]
If the clearances are higher than the limit, replace the faulty parts.
0
ø60 to 120
{2.36 to 4.72}
3
2
To Next Page
