01-29
01
Clutch Fluid (Brake Fluid)
Ê Tightening torque Unit : N·m {lbf.ft, kgf·m}
Location Parts to be tightened Tightening torque Remarks
2 Air bleeder 25 to 34 {18 to 25, 2.5 to 3.5} —
- Fluid
Location Points of application Kinds Quantity
1 Fluid tank Brake fluid As required
(SAE J1703f or FMVSS No.116 DOT3)
CAUTION–
• Be careful not to splash brake fluid on related parts as this could
damage the paintwork.
• Be sure to wipe off brake fluid immediately if you splash it on the
paintwork.
• You must use new brake fluid (SAE J1703f or FMVSS No.116
DOT3). Do not add different quality fluid or mineral oil (gas oil,
engine oil, gear oil, automatic transmission fluid, etc.) to the
clutch system, because this will cause the rubber parts of the
clutch system to swell, resulting in faulty clutch operation.
• Do not allow foreign particles or water to become mixed into the
brake fluid when refilling, because this will cause faulty clutch
operation.
• If you use a mug for adding brake fluid, keep it solely for that
purpose to prevent contamination from different quality fluids or
mineral oils.

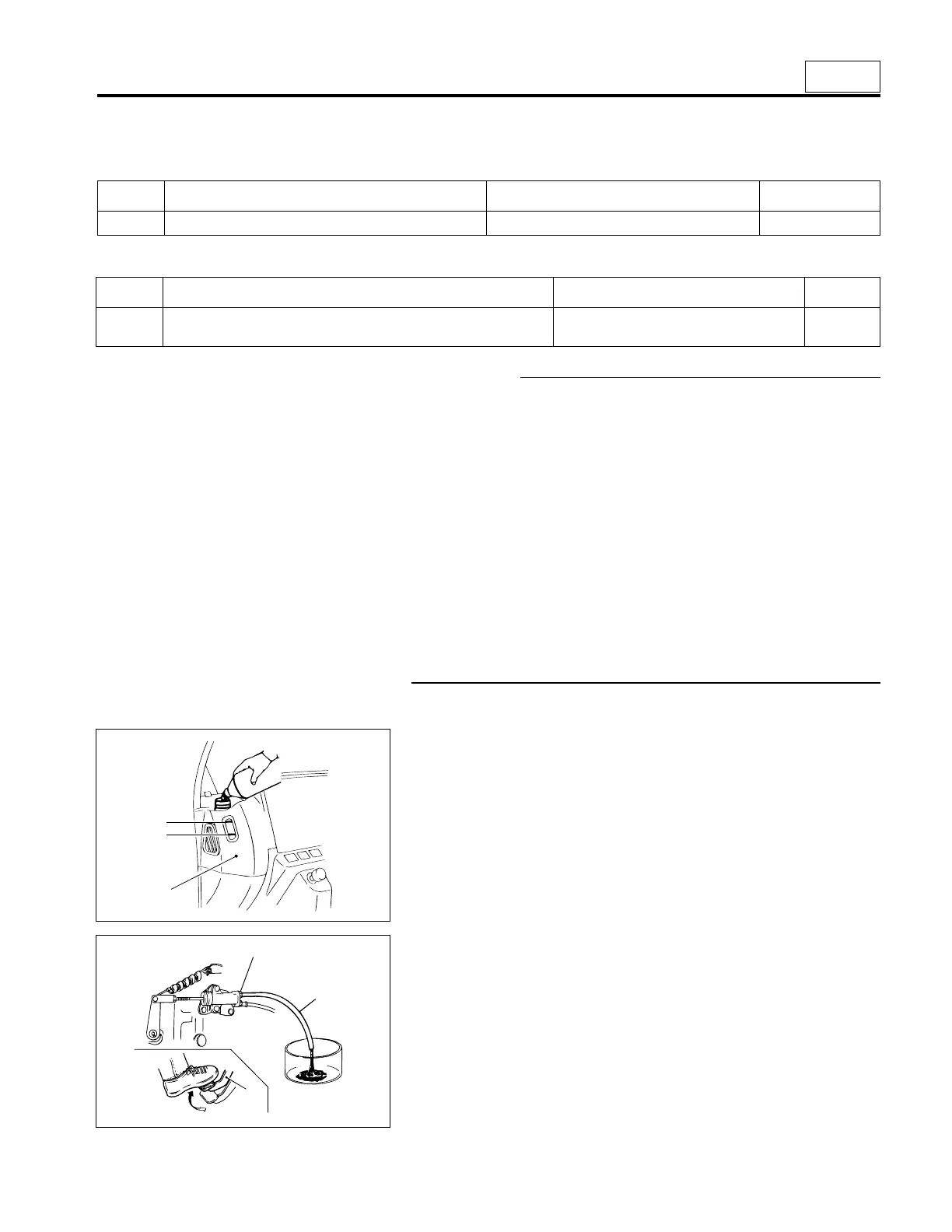

[Inspection and replenishment]
• Inspect the level of the brake fluid in fluid tank 1. It should fall between
the “MAX” and “MIN” levels.
• If it is below the “MIN” level, lift up the lid flap and remove the cap from
fluid tank 1, then supply the specified brake fluid until the level has
come up to the “MAX” level. Do not fill above the “MAX” level.
11773
11772
2
3
4
[Replacement]
• Attach vinyl pipe 3 to air bleeder 2 of the clutch power cylinder.
• Loosen air bleeder 2 and depress clutch pedal 4 several times to drain
brake fluid completely.
“MAX”
“MIN”
1
To Next Page
