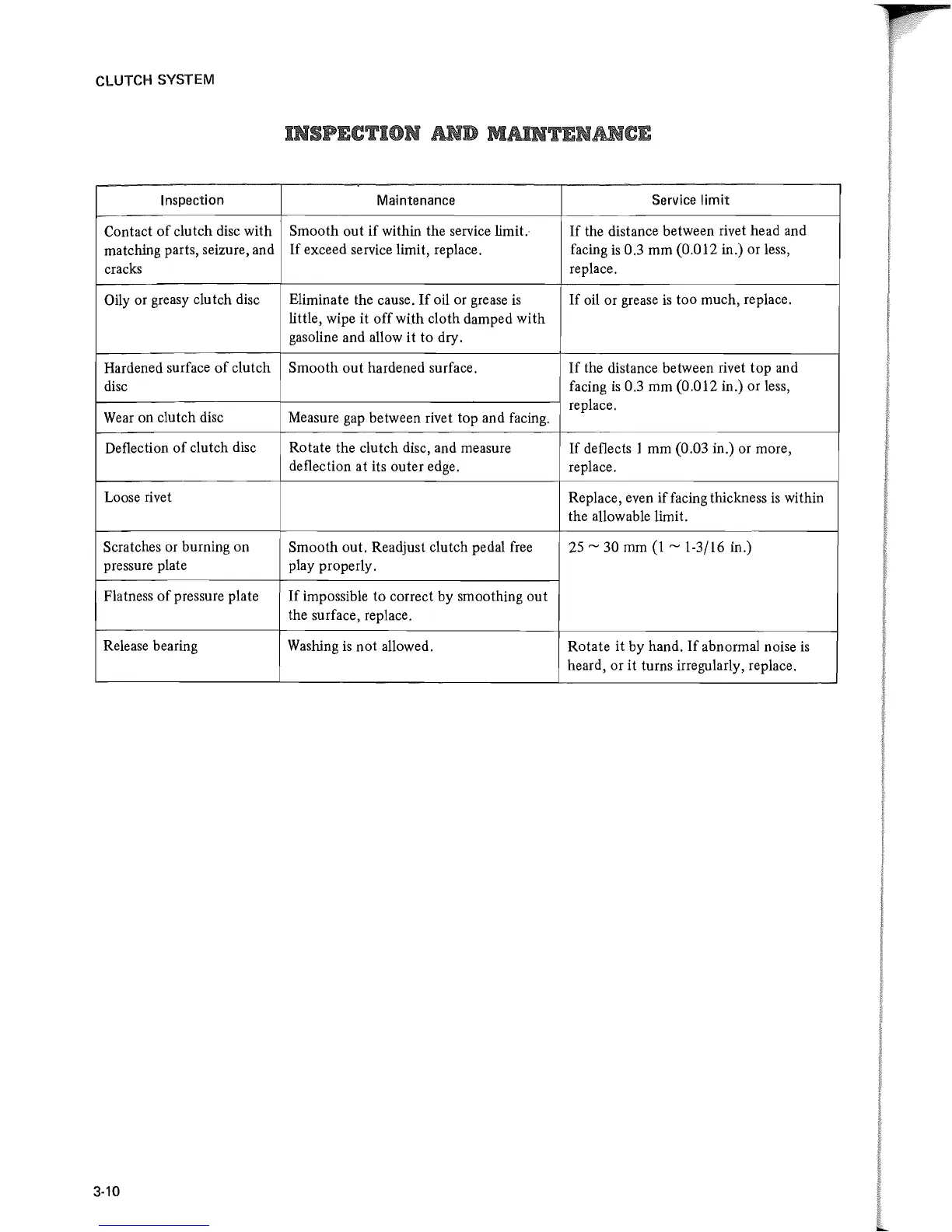

CLUTCH SYSTEM
INSPECTION
Inspection Maintenance
Service limit
Contact
of clutch disc with
Smooth
out if within the service limit. If the distance between rivet head and
matching parts, seizure, and
If exceed service limit, replace. facing is 0.3 mm (0.012 in.) or less,
cracks
replace.
Oily or greasy clutch disc Eliminate the cause.
If oil or grease is If oil or grease is too much, replace.
little, wipe it
off with cloth damped with
gasoline and allow
it to dry.
Hardened surface
of clutch Smooth out hardened surface. If the distance between rivet top and
disc facing
is 0.3 mm (0.012 in.) or less,
Wear on clutch disc
Measure gap between rivet top and facing.
replace.
Deflection
of clutch disc Rotate the clutch disc, and measure
If deflects 1 mm (0.03 in.) or more,
deflection at its outer edge.
replace.
Loose rivet
Replace, even
if facing thickness is within
the allowable limit.
Scratches or burning on
Smooth out. Readjust clutch pedal free
25
~ 30 mm (1 ~ 1-3/16 in.)
pressure plate
play properly.
Flatness
of pressure plate
If impossible to correct by smoothing out
the surface, replace.
Release bearing
Washing
is not allowed. Rotate it by hand. If abnormal noise is
heard, or it turns irregularly, replace.
3-10
