ENGINE
SYSTEM
DESCRIPTION
Fuel oil in the tank flows by gravity through
the fuel filter
to the injection pump, by which it
is pumped to the three injection nozzles through
injection pipes. The injection nozzle
is in the
holder, and has its spraying tip exposed to the
combustion chamber. Some
of the oil reach-
ing the nozzle from
the top of the nozzle holder
is spilled into overflow pipe and returns to the
fuel tank.
Overflow pipe
~
Injection pipe
Nozzle holder
Air vent screw
Fuel
filter
Injection pump

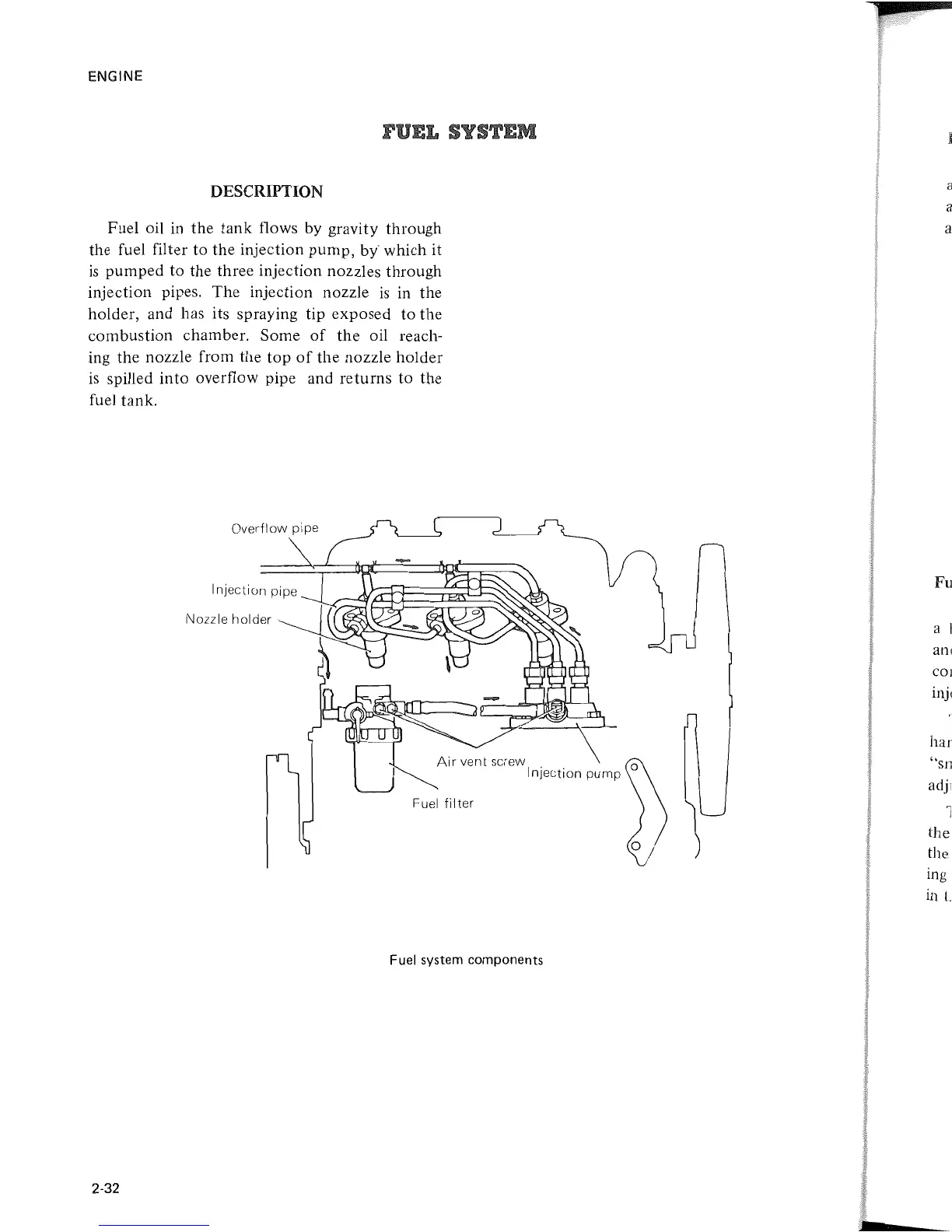

Fuel system components
2-32
