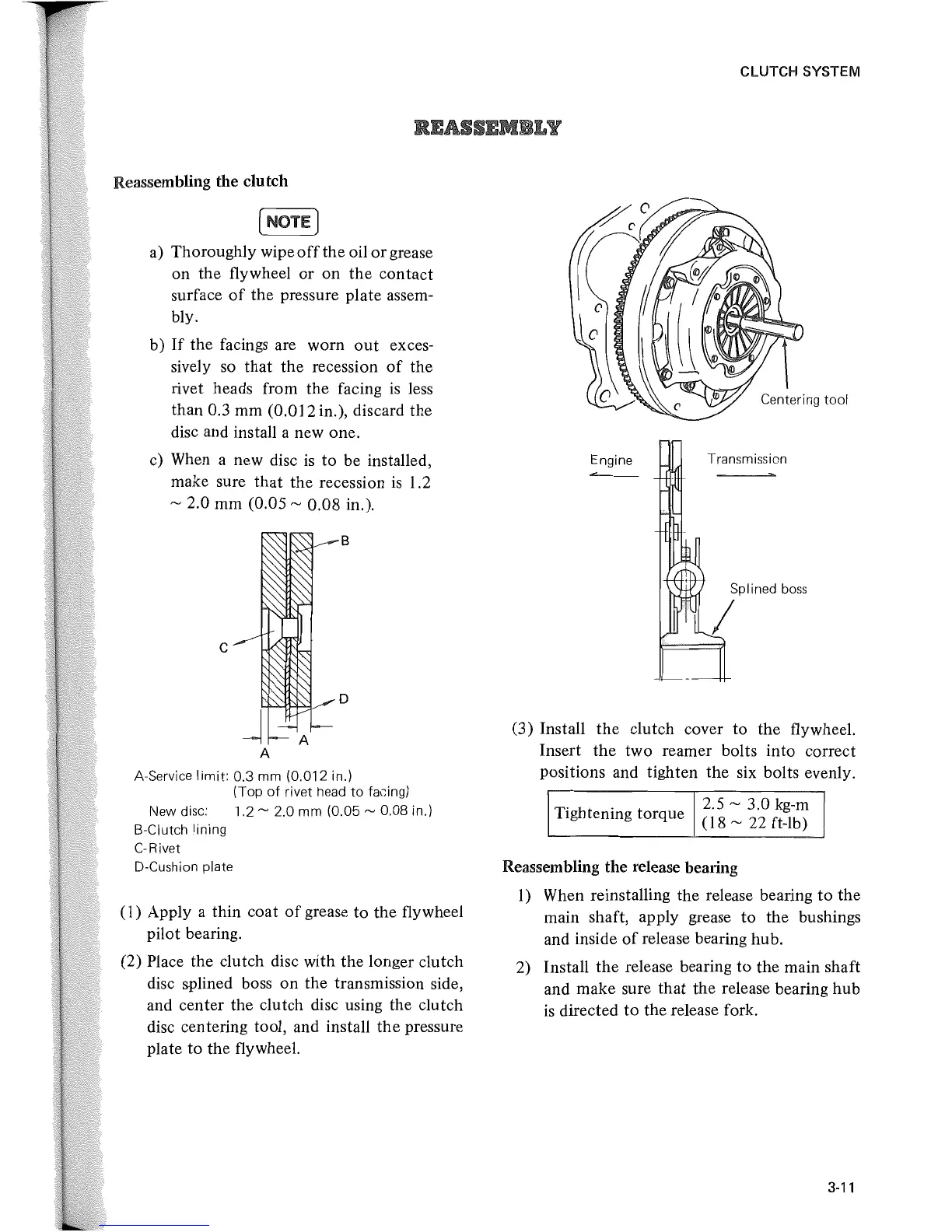

Reassembling the clutch
[NOTE]
a) Thoroughly wipe
off
the
oil
or
grease
on the flywheel
or
on
the
contact
surface
of
the pressure plate assem-
bly.
b)
If
the facings are worn
out
exces-
sively
so
that
the recession
of
the
rivet heads from the facing
is
less
than 0.3 mm (0.012 in.), discard the
disc and install a new one.
c) When a new disc
is
to
be installed,
make sure
that
the recession
is
1.2
~
2.0 mm (0.05
~
0.08 in.).
B
C
o
A
A-Service
limit:
0.3 mm (0.012 in.)
(Top
of
rivet head
to
facing)
New disc: 1.2
~
2.0
mm
(0.05
~
0.08 in.)
B-Clutch lining
C-Rivet
D-Cushion plate
(1) Apply a thin coat
of
grease to the flywheel
pilot bearing.
(2)
Place the clutch disc with the longer clutch
disc splined boss
on
the transmission side,
and center the clutch disc using the clutch
disc centering tool, and install
the
pressure
plate
to
the flywheel.
CLUTCH SYSTEM
Centering
tool
Engine
T ransm ission
(3) Install
the
clutch cover to
the
flywheel.
Insert
the
two reamer bolts
into
correct
positions and tighten the six bolts evenly.
. h . 2.5
~
3.0
kg-m
Tlg tellIng torque (18
~
22 ft-lb)
Reassembling the release bearing
1)
When reinstalling the release bearing
to
the
main shaft, apply grease
to
the bushings
and inside
of
release bearing hub.
2) Install
the
release bearing
to
the main shaft
and make sure
that
the release bearing
hub
is
directed
to
the release fork.
3-11
