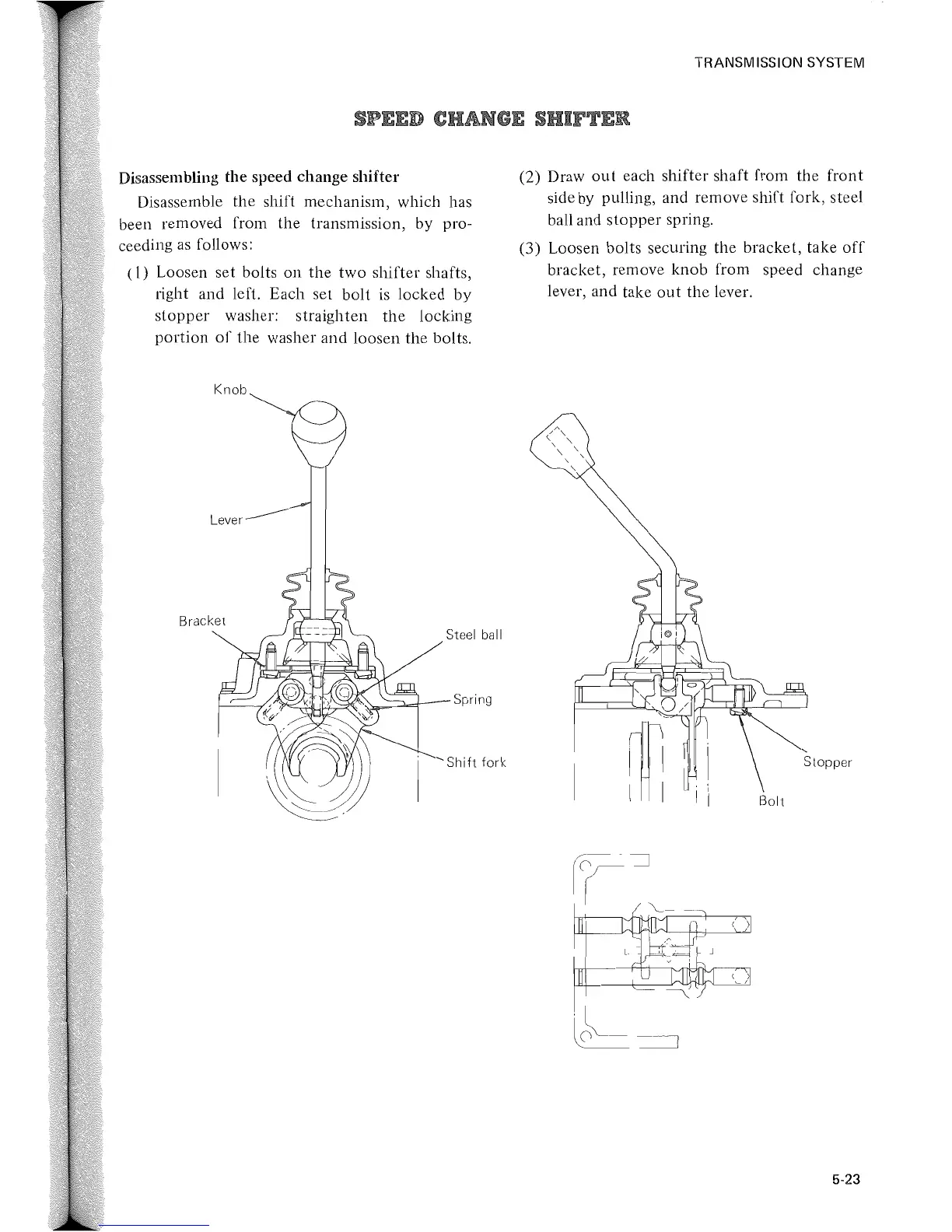

Disassembling the speed change
shifter
Disassemble the shift mechanism, which has
been removed from the transmission, by pro-
ceeding
as
follows:
(1)
Loosen set bolts
on
the
two
shifter
shafts,
light
and left.
Each
set
bolt
is
locked
by
stopper
washer:
straighten
the
locking
portion
of
the washer
and
loosen the bolts.
Knob
Steel ball
Spring
Sh
ift
fork
TRANSMISSION SYSTEM
(2) Draw
out
each shifter
shaft
from
the
front
side by pulling, and remove shift fork, steel
ball and
stopper
spring.
(3) Loosen bolts securing
the
bracket,
take
off
bracket,
remove
knob
from speed change
lever, and take
out
the lever.
Stopper
,
-~
lcl~
5-23
