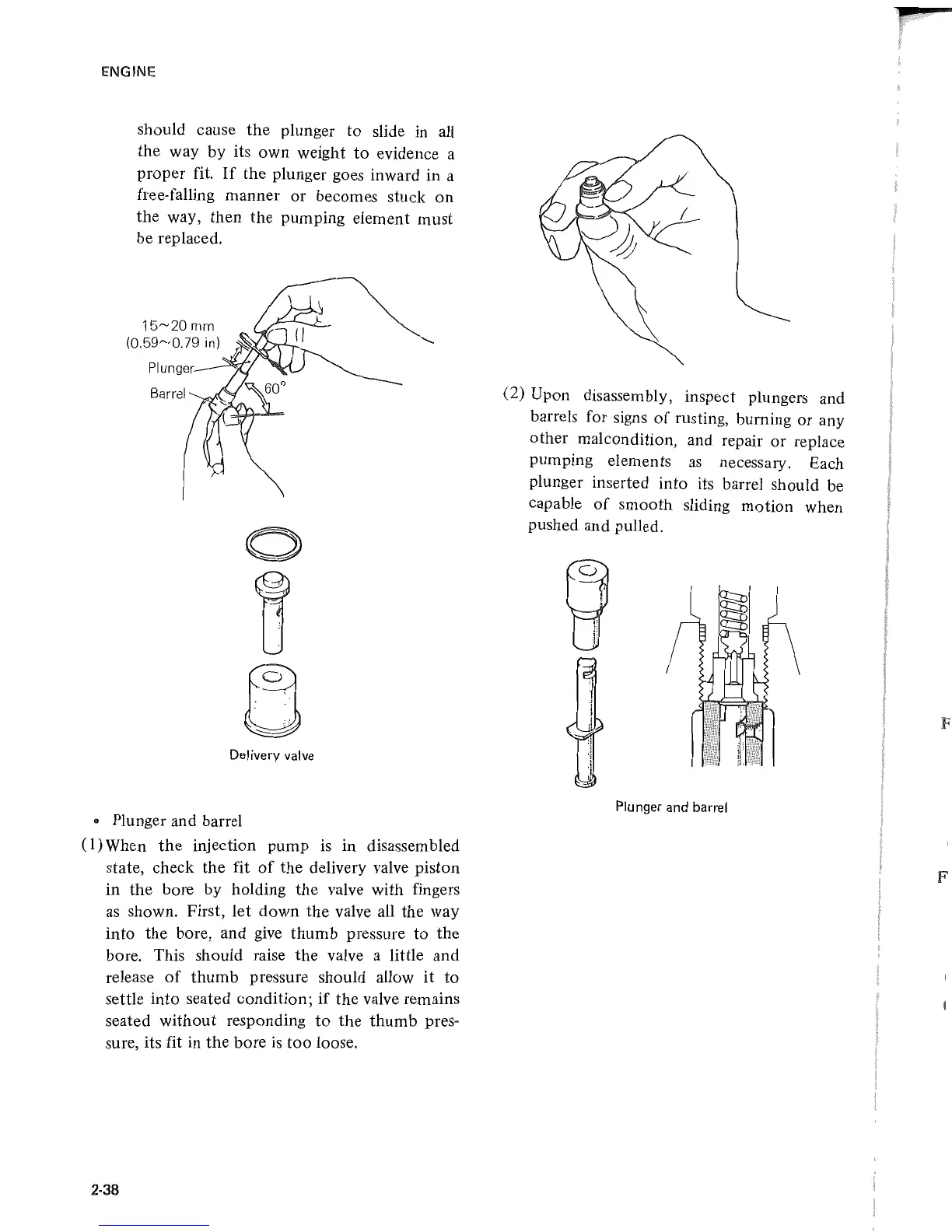

ENGINE
should cause the plunger to slide in all
the way by its own weight to evidence a
proper fit.
If the plunger goes inward in a
free-falling
manner or becomes stuck on
the way, then the pumping element must
be replaced.
15~20 mm
(O.59~O.79 in)
Barrel
o
tt
[J
,
,
." ,:
Delivery valve
• Plunger and barrel
(I) When the injection pump is in disassembled
state, check
the fit of the delivery valve piston
in the bore
by holding the valve with fingers
as shown. First, let down the valve all the way
into the bore, and give thumb pressure to the
bore. This should raise the valve a little and
release
of thumb pressure should allow it to
settle into seated condition; if the valve remains
seated
without responding to the thumb pres-
sure, its fit in
the bore is too loose.
2·38
(2) Upon disassembly, inspect plungers and
barrels for signs
of rusting, burning or any
other ma1condition, and repair
or replace
pumping elements
as necessary. Each
plunger inserted
into its barrel should be
capable
of smooth sliding motion when
pushed and pulled.
Plunger and barrel
r
F
F
