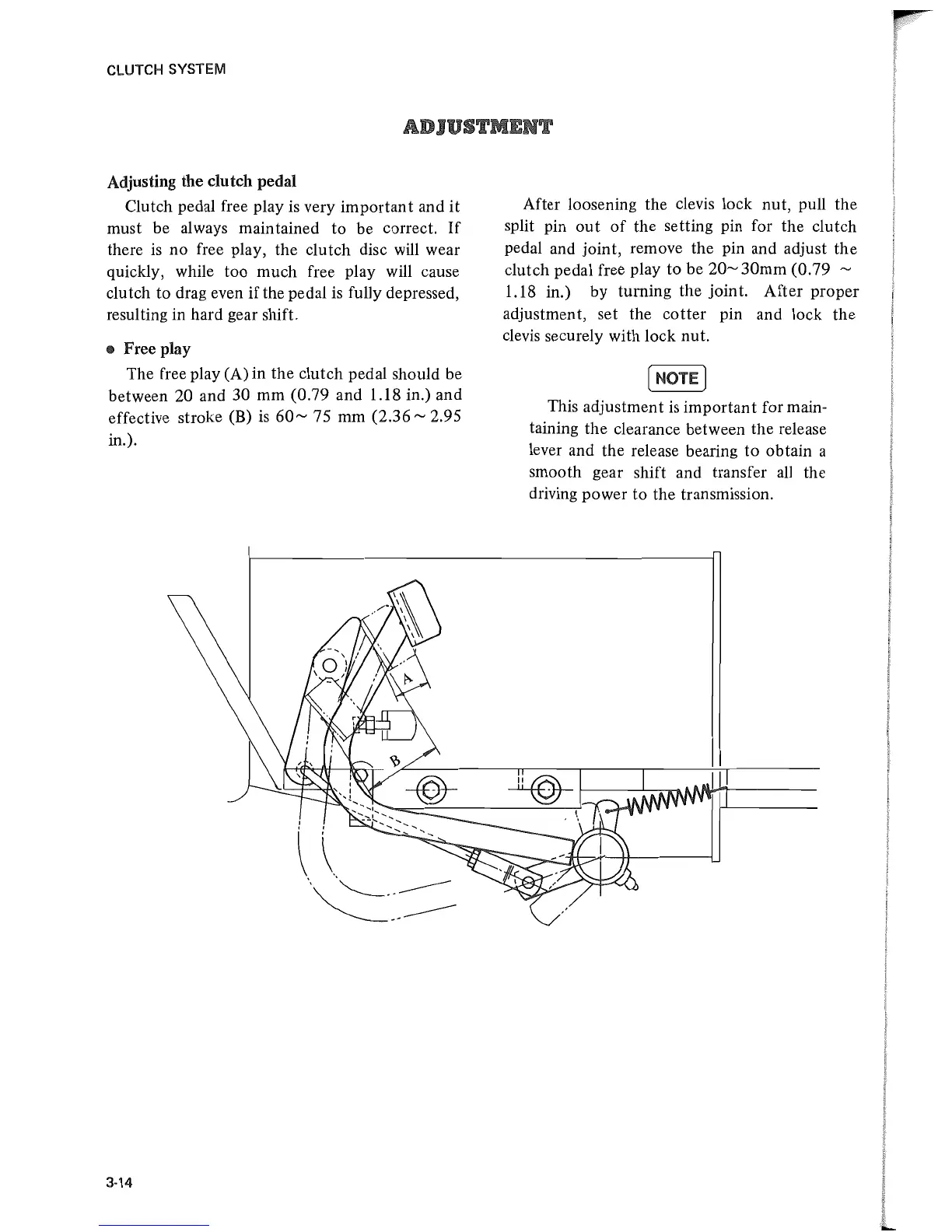

CLUTCH SYSTEM
ADJUSTMENT
Adjusting the
c1u
tch pedal
Clutch pedal free play
is
very
important
and
it
must be always maintained to be correct.
If
there
is
no free play, the clutch disc will wear
quickly, while
too
much free play will cause
clutch to drag even
if
the pedal is fully depressed,
resulting in hard gear shift.
4&
Free play
The free play (A) in the clutch pedal should be
between 20 and 30
mm
(0.79 and 1.18 in.)
and
effective stroke (B) is
60~
75
mm
(2.36
~
2.95
in.).
3·14
After loosening the clevis lock nut, pull the
split pin
out
of
the setting pin for the clutch
pedal and joint, remove the pin and adjust the
clutch pedal free play
to
be
20~
30mm
(0.79
~
1.18 in.)
by
tuming
the joint.
After
proper
adjustment, set the
cotter
pin and lock
the
clevis securely with lock nut.
[NOTE]
This adjustment
is
important
for main-
taining the clearance between the release
lever and the release bearing to obtain a
smooth gear shift and transfer all the
driving power
to
the transmission.
