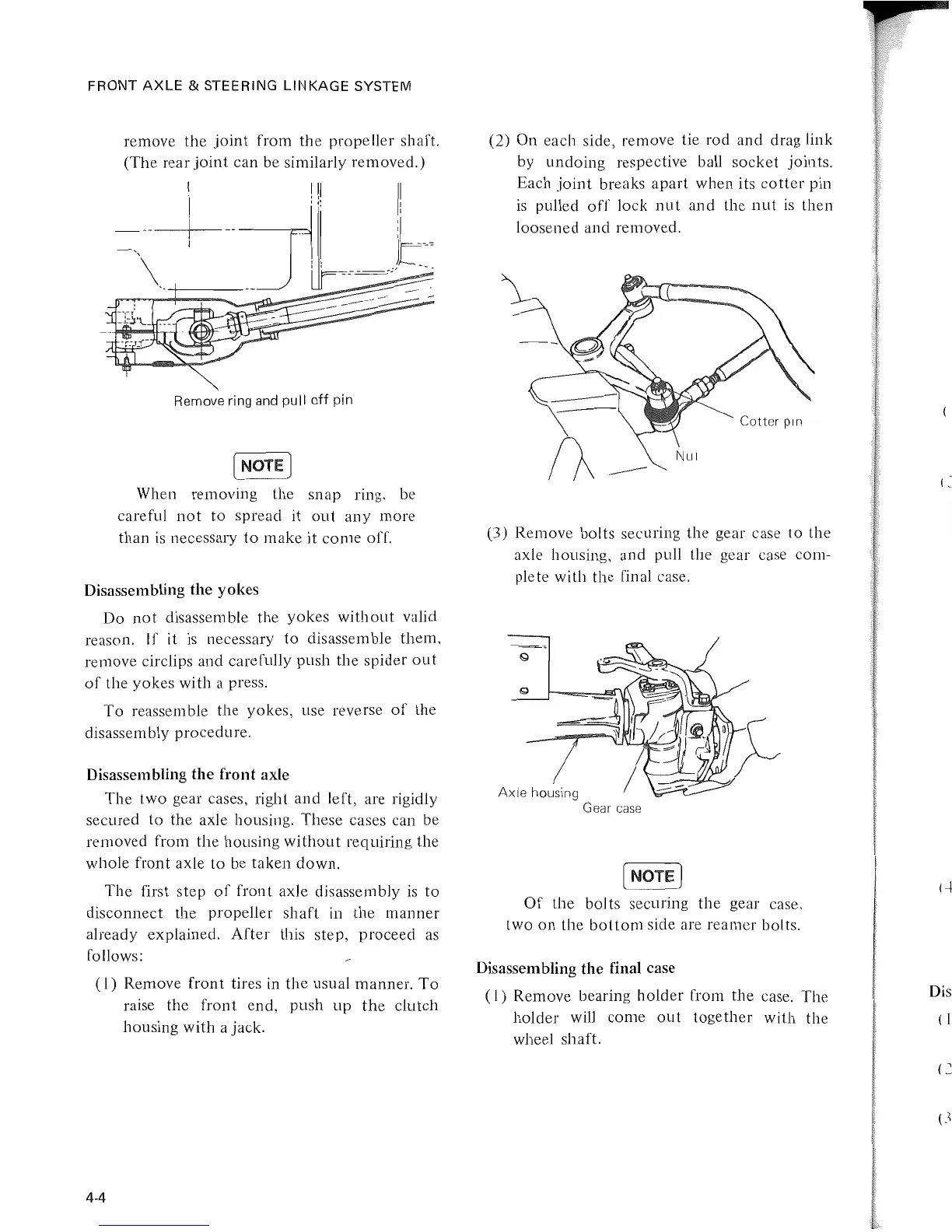

FRONT AXLE & STEERING LINKAGE SYSTEM
remove the joint from the propeller shaft.
(The rear
joint can be similiuly removed.)
t
I
I
Remove ring and pull off pin
[NOTE]
When removing the snap ring, be
careful
not to spread it out any more
than is necessary to make it come off.
Disassembling the yokes
Do
not disassemble the yokes without valid
reason.
If it is necessary to disassemble them,
remove circlips and carefully
push the spider out
of the yokes with a press.
To reassemble the yokes, use reverse of the
disassem bly procedure.
Disassembling
the front axle
The two gear cases, right and left, are rigidly
secured
to the axle housing. These cases can be
removed from the housing
without requiring the
whole
front axle to be taken down.
The first step of front axle disassembly is to
disconnect the propeller shaft in the manner
already explained. After this step, proceed as
follows:
(I) Remove front tires in the usual manner. To
raise the front end, push up the clutch
housing
with a jack.
4-4
(2) On each side, remove tie rod and drag link
by
undoing respective ball socket joints.
Each
joint breaks apart when its cotter pin
is pulled off lock nut and the nut is then
loosened and removed.
Cotter pin
(3) Remove bolts securing the gear case to the
axle housing, and pull the gear case com-
plete with
the final case.
[NOTE]
Of the bolts securing the gear case,
two
on the bottom side are reamer bolts.
Disassembling
the final case
(I) Remove bearing holder from the case. The
holder will come out together with the
wheel shaft.
(
( ~
Dis.
( 1
