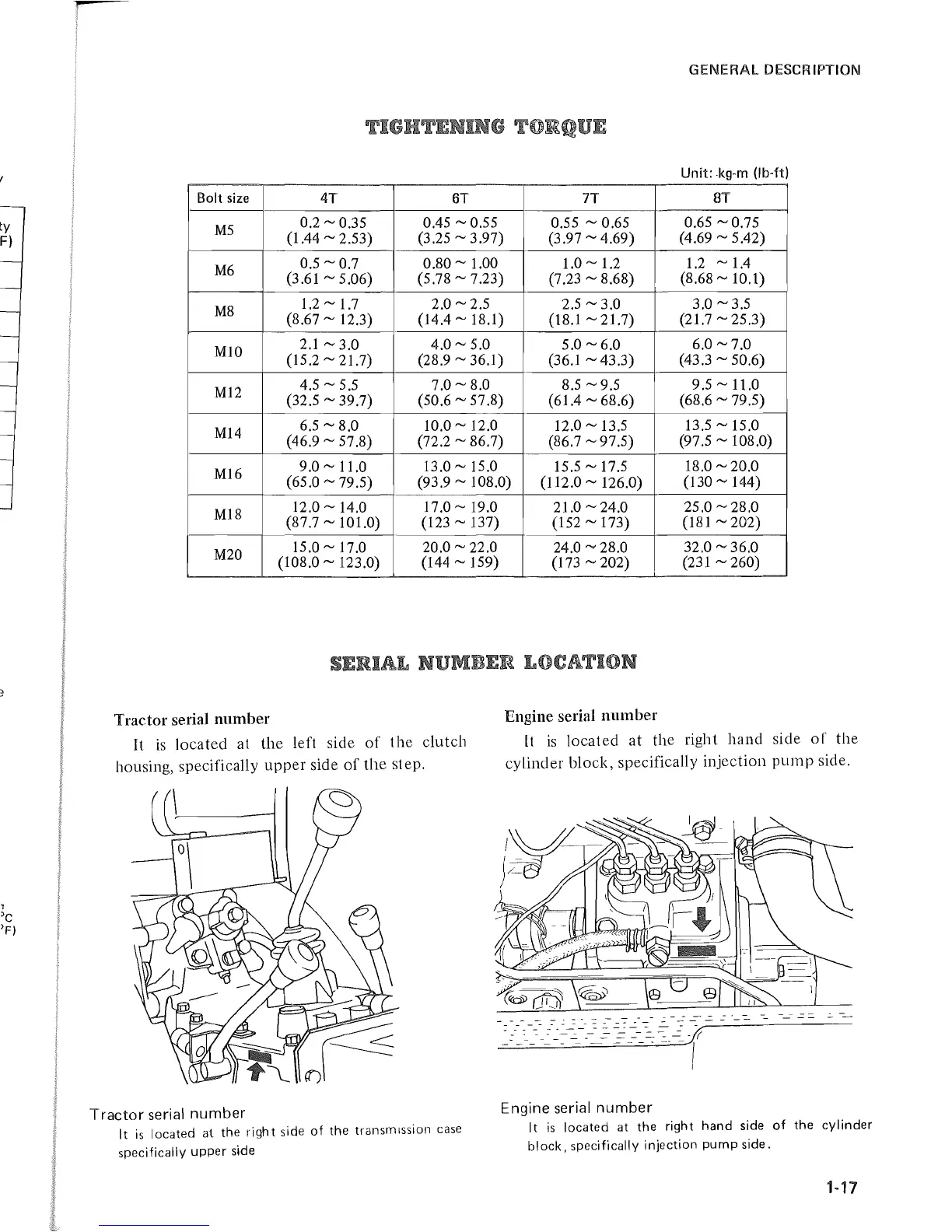

GENERAL DESCRIPTION
Unit· kg-m (lb-tt)
."
Bolt size 4T
6T 7T
8T
M5
0.2 ~ 0.35 0.45 ~ 0.55
0.55
~ 0.65
0.65
~ 0.75
(1.44
~ 2.53)
(3.25
~ 3.97)
(3.97
~ 4.69)
(4.69
~ 5.42)
M6
0.5 ~ 0.7
0.80
~ 1.00 1.0 ~ 1.2
1.2 ~1.4
(3.61 ~ 5.06)
(5.78
~ 7.23)
(7.23
~ 8.68)
(8.68
~ 10.1)
M8
1.2 ~ 1.7 2.0 ~ 2.5 2.5 ~ 3.0
3.0 - 3.5
(8.67
~ 12.3) (14.4 ~ 18.1)
(18.1
~ 21.7)
(21.7
~ 25.3)
MlO
2.1
~ 3.0 4.0 ~ 5.0
5.0 - 6.0
6.0 ~ 7.0
(15.2
~ 21.7) (28.9 ~ 36.1) (36.1 ~ 43.3)
(43.3
~ 50.6)
M12
4.5
~ 5.5 7.0 ~ 8.0 8.5 ~ 9.5 9.5 ~ 11.0
(32.5
~ 39.7)
(50.6 ~ 57.8)
(61.4 - 68.6)
(68.6 ~ 79.5)
M14
6.5 ~ 8.0 10.0 ~ 12.0
12.0~13.5
13.5 ~ 15.0
(46.9
~ 57.8) (72.2 ~ 86.7) (86.7 ~ 97.5)
(97.5
~ 108.0)
9.0
~ 11.0
13.0
~ 15.0
15.5
~ 17.5
18.0
~ 20.0
M16
(65.0
~ 79.5) (93.9 ~ 108.0)
(112.0
~ 126.0)
(130 ~ 144)
MI8
12.0 ~ 14.0
17.0 - 19.0
(87.7
~ 101.0) (123 ~ 137)
M20
15.0~17.0 20.0 ~22.0
(108.0 ~ 123.0)
(144
~ 159)
Tractor serial number
It is located at the left side of the clutch
housing, specifically
upper side of the step.
Tractor serial number
It is located at the right side of the transmission case
specifically upper side
21.0 ~ 24.0
25.0
~ 28.0
(152
~ 173)
(181
~202)
24.0,...., 28.0 32.0 ~ 36.0
(173
~ 202)
(231
~ 260)
Engine serial number
It is located at the right hand side of the
cylinder block, specifically injection
pump side.
---------
- - - -::-: :---= ::---=- --- - - -~-----------------
- ~ =- =-= ~~-.:::- ~ -= -=--==- =: ~-~1
Engine serial number
It is located at the right hand side of the cylinder
block, specifically injection pump side.
1-17
