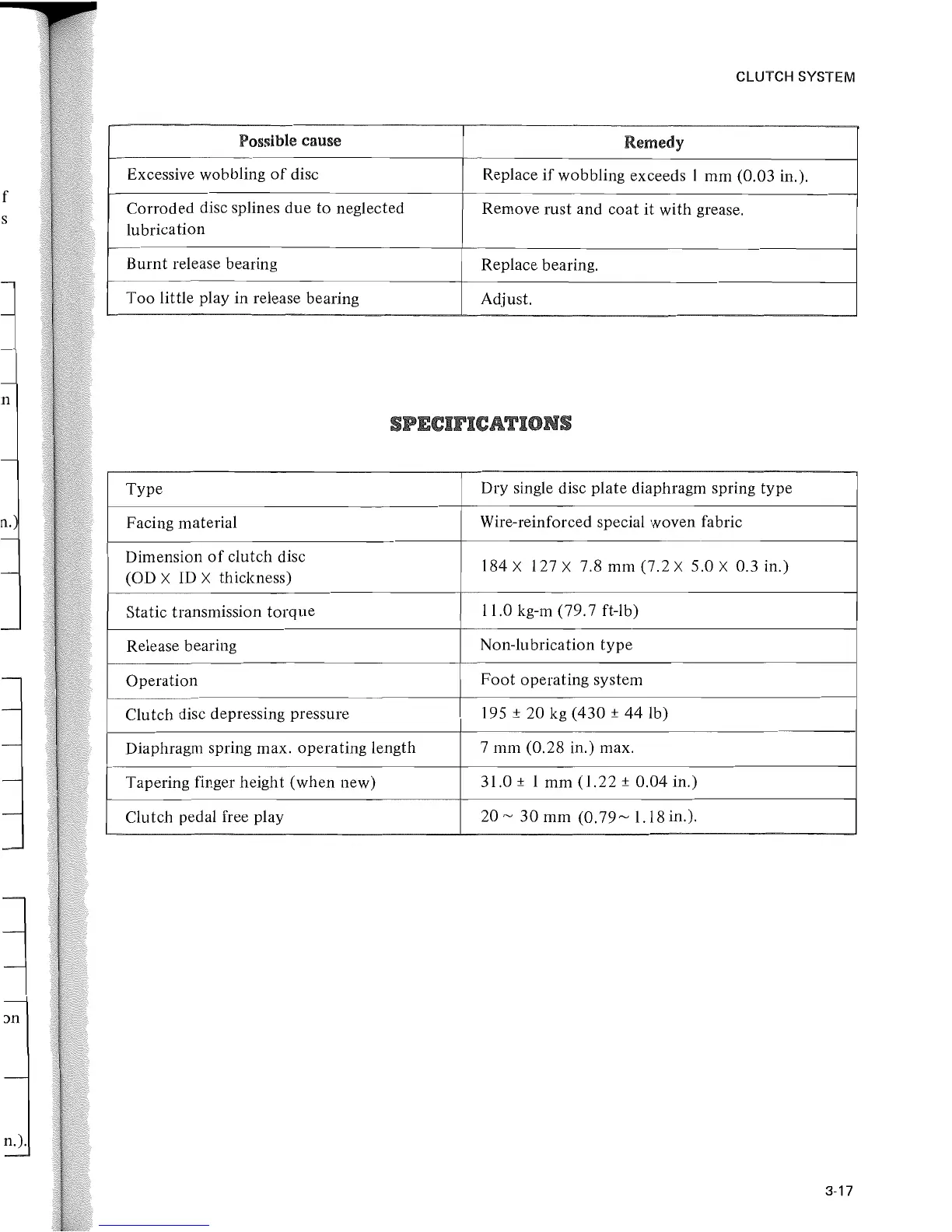

CLUTCH SYSTEM
Possible cause
Remedy
Excessive wobbling
of
disc
Replace
if
wobbling exceeds 1
mm
(0.03 in.).
Corroded disc splines due
to
neglected
Remove rust and
coat
it
with grease.
lubrication
Burnt release bearing
Replace bearing.
Too
little play in release bearing
Adjust.
Type
Dry single disc plate diaphragm spring
type
Facing material Wire-reinforced special woven fabric
Dimension
of
clutch disc
184 X 127 X 7.8 mm (7.2 X 5.0 X 0.3 in.)
(OD X
ID X thickness)
Static transmission
torque
11.0 kg-m (79.7 ft-lb)
Release bearing
Non-lubrication
type
Operation
Foot
operating system
Clutch disc depressing pressure
195
± 20 kg (430 ±
441b)
Diaphragm spring max. operating length 7
mm
(0.28 in.) max.
Tapering finger height (when new)
31.0
± 1 mm
(1.22
± 0.04 in.)
Clutch pedal free play
20
~
30
mm
(0.
79~
1.18 in.).
:m
n.).
3-17
