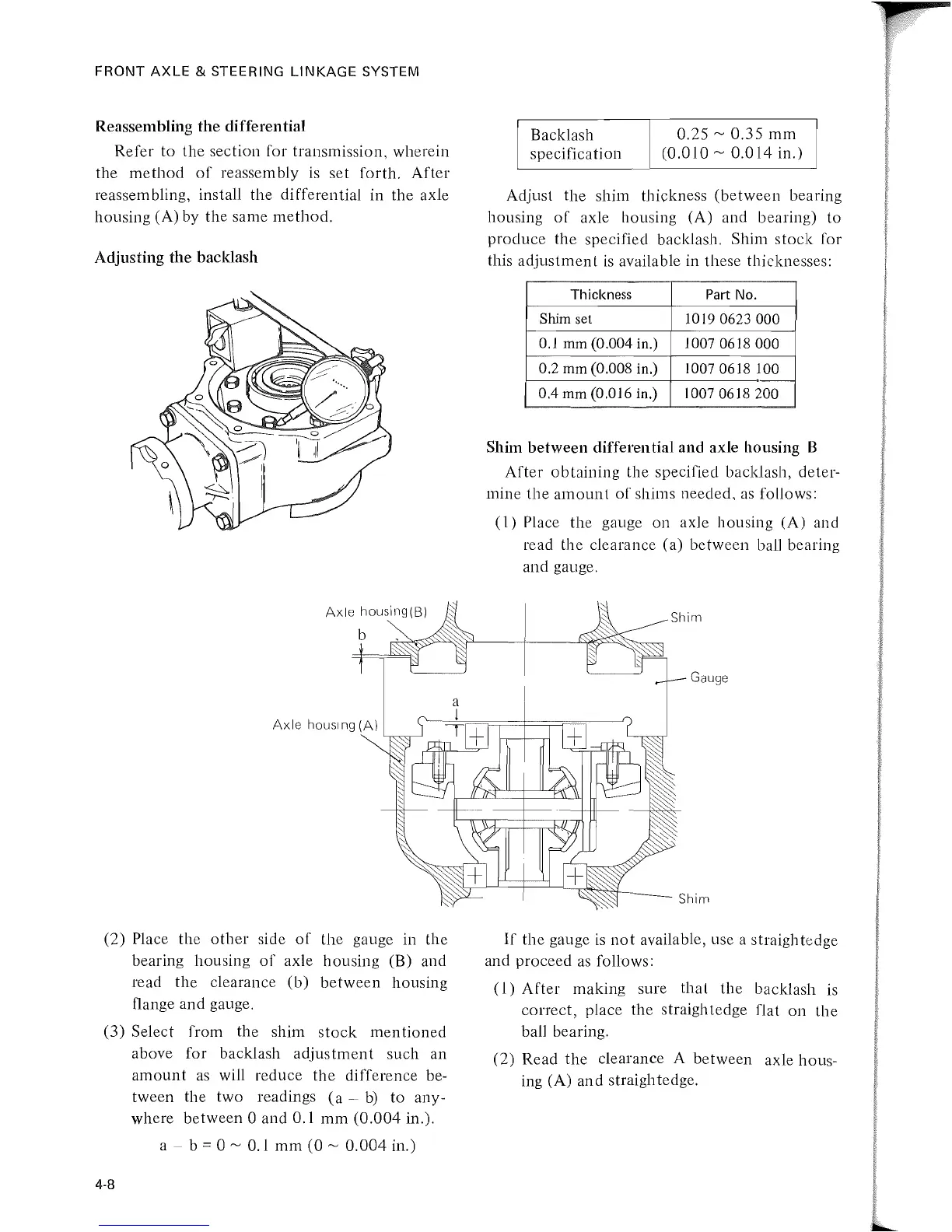

FRONT
AXLE
& STEERING
LINKAGE
SYSTEM
Reassembling
the
differential
Refer
to
the section for transmission, wherein
the
method
of
reassembly
is
set
forth.
After
reassembling, install
the
differential in
the
axle
housing (A) by the same
method.
Adjusting
the
backlash
Axle
housillg(B)
(2)
Place the
other
side
of
the
gauge in
the
bearing housing
of
axle housing (B) and
read the clearance (b)
between
housing
flange and gauge.
(3)
Select from
the
shim
stock
mentioned
above for backlash
adjustment
such an
amount
as
will reduce
the
difference be-
tween the two readings
(a
-
b)
to
any-
where between 0 and 0.1
mm
(0.004
in.).
a - b = 0
~
0.1
mm
(0
~
0.004
in.)
4-8
Backlash
specification
0.25
~
0.35
mm
(0.010
~
0.014
in.)
Adjust the shim thickness
(between
bearing
housing
of
axle housing (A) and bearing)
to
produce
the
specified backlash. Shim
stock
for
this
adjustment
is
available in these thicknesses:
Thickness Part
No.
Shim set
10190623000
0.1 mm (0.004 in.)
10070618000
0.2 mm (0.008 in.)
10070618
100
0.4 mm (0.016
in.)
10070618200
Shim
between
differen
Hal
and axle housing B
After
obtaining
the specified backlash, deter-
mine
the
amount
of
shims needed,
as
follows:
(1)
Place the gauge on axle housing (A) and
read
the
clearance (a)
between
ball bearing
and gauge.
Gauge
Shim
If
the
gauge is
not
available, use a straightedge
and proceed
as
follows:
(1)
After
making sure
that
the backlash
is
correct, place the straightedge flat on
the
ball bearing.
(2)
Read
the
clearance A between axle hous-
ing (A) and straightedge.
To Next Page
