5-TRANSPORTOPERATIONS

Rearworklight(optional)

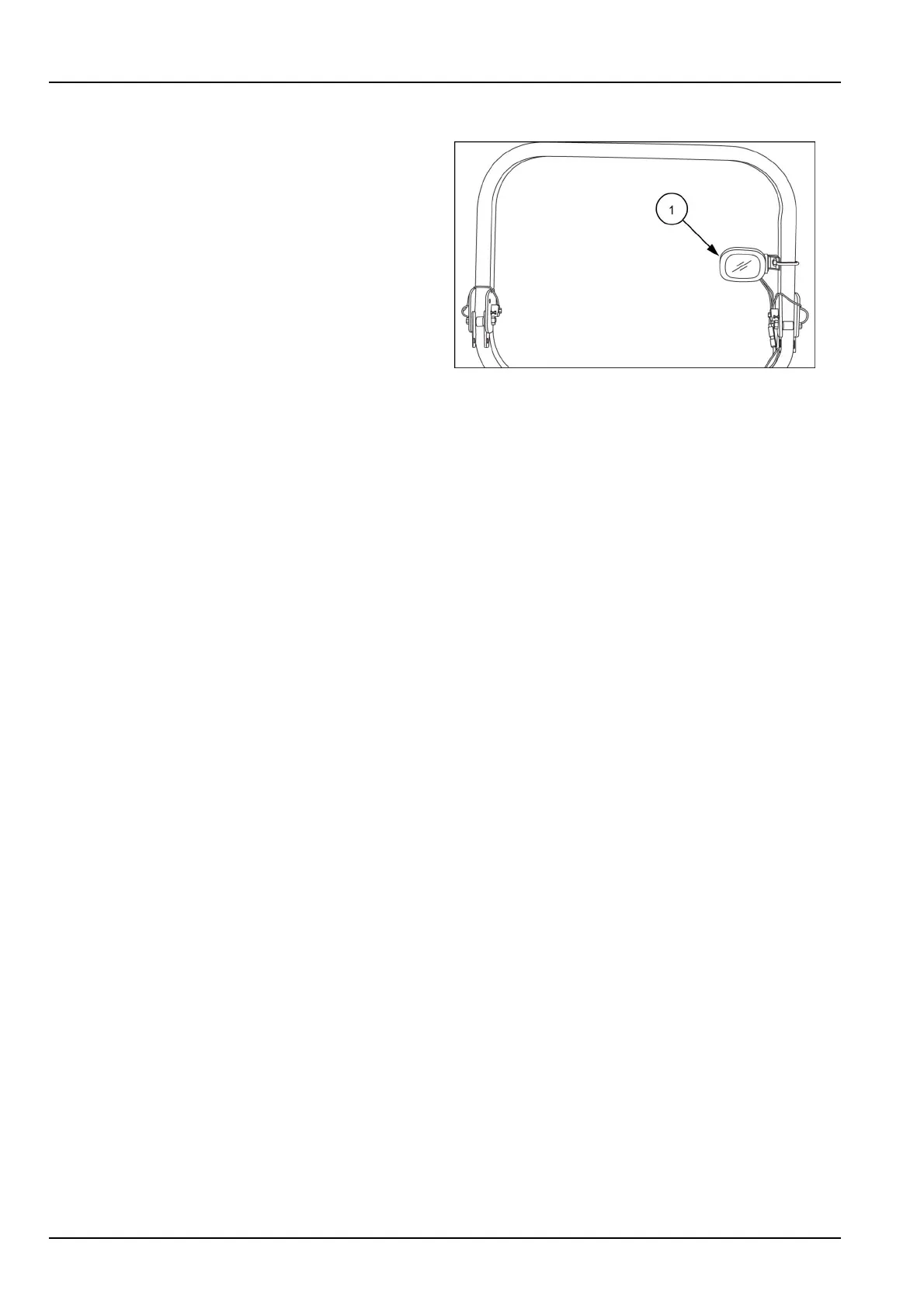

Theoptionalrearworklight(1)ismountedtotheRollOver

ProtectionStructure-ROPSandisoperatedbyaswitch

locatedonthelight.Theworklightcanbemountedtothe

ROPS,facingforwardorrearward.

931103791

5-4
