3-CONTROLSANDINSTRUMENTS
Hydraulichoseconnection
WARNING
Crushinghazard!
Beforedisconnectingthecylindersorequip-
ment,makesureyouadequatelysupportand
securetheequipmentorimplement.
Failuretocomplycouldresultindeathorse-
riousinjury.
W0243A
WARNING
Escapinguid!
Remotecouplersmustbeproperlymounted
andsecurelyfastenedtothemachinemount-
ingbracketforproperfunctioningofthesafety
disconnectfeature.
Failuretocomplycouldresultindeathorse-
riousinjury.
W0131A

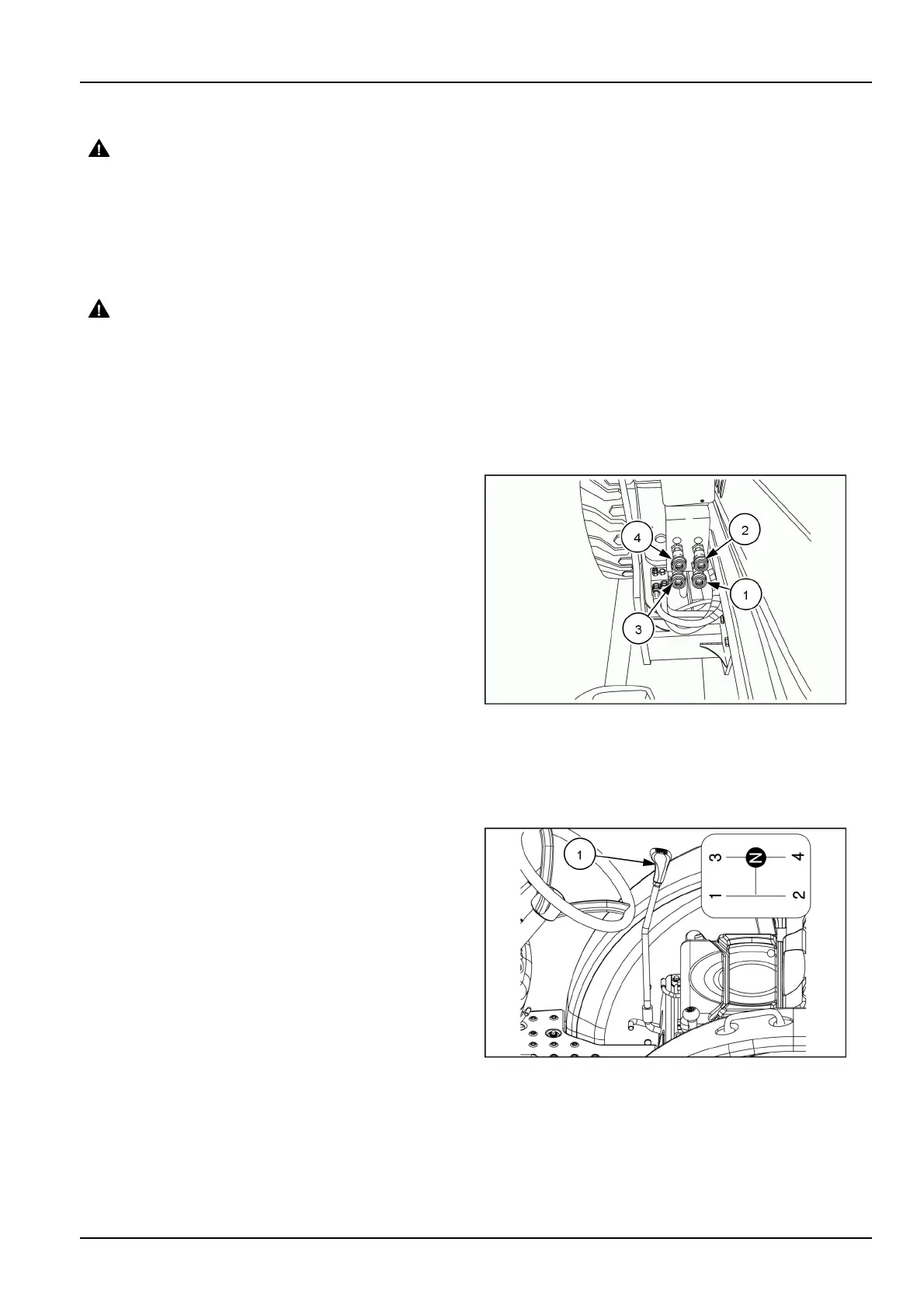

Whenconnectinghydraulichoses,followtheinstructions
listedbelow.
•
Liftcylinder,rodside,yellowcoupler(1).
•
Liftcylinder,baseside,greencoupler(2).
•
Bucketcylinder,baseside,bluecoupler(3).
•
Bucketcylinder,rodside,redcoupler(4).
NHIL13CT00023AA3
Transmissionmainshiftlever
Gearmodel
Thetransmissionmaingearshiftlever(1)islocatedon
theright-handsideoftheoperatorsplatform,andisused
toselectanyoneofthefourforwardorreversegears.
NOTE:Withthecombinationoftheshuttleshift,main
shift,andrangeselectorleveroffertheoperatoracom-
binationoftwelveforwardandtwelvereversegears.
ThemaingearshiftlevermustbeoperatedonlyAFTER
thetractorhasstoppedcompletely.Shiftthemaingear
shiftleverbydesignated“H”pattern.Ifthemaingearshift
leverisoperatedwhenthetractorisinmotion,damageto
thetransmissiongearscouldoccur.
NOTE:Theshiftpatternisshownassittingintheopera-
torsseat.
NHIL12CT00776AA1
3-21
