7-MAINTENANCE
Clutchpedalfreeplay
NOTE:Checkclutchpedalfreetravelafterevery50hours
ofoperation.

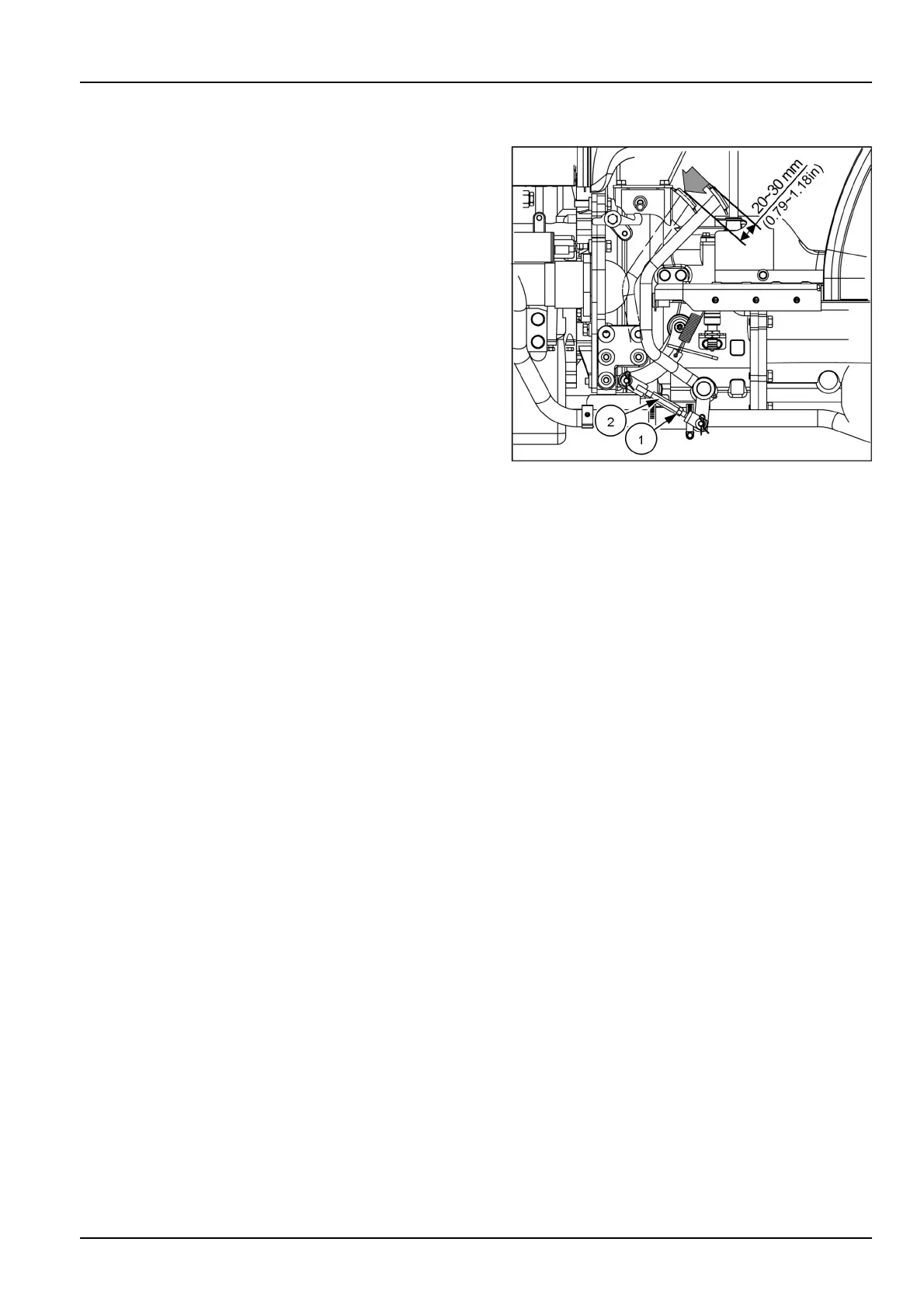

ClutchpedalfreetravelshouldbemaintainedatA=20-
30mm(0.79-1.18in).
Toadjusttheclutchpedal:
1.Loosenlocknut(1)androtateadjuster(2)
2.Tighteningtheadjusterwilldecreasethefreeplaytravel
andlooseningtheadjusterwillincreasethefreeplay
travel.
3.Tightenthelocknutwhenthecorrectfreeplaytravelis
obtained
4.Checkclutchfordisengagementwhenclutchpedalis
fullydepressed.
NHIL12CT00783AA1
HydrostaticTransmission(HST)neutraladjustment
CheckingHSTreturnto"NEUTRAL"
1.Placerangegearin"LOW"rangeandenginespeedat
highidleposition.
2.Drivetractorinforwardandreverse,removefootfrom
HSTpedal.Tractorshouldstopandrearwheelsshould
notrotatewhenpedalsareat"NEUTRAL"position.
3.IfrearwheelsrotatewhenHSTpedalsareinthe"NEU-
TRAL"position,theHSTcontrollinkageneedstobe
adjusted.
