3-CONTROLSANDINSTRUMENTS
Midmounttwospoolhydraulicvalve
The(optional)midmounttwo-spoolhydraulicvalve(1)
ismountedtothevalvemountingbracket,locatedatthe
rightfrontoftheoperator’splatform.Thisvalveisused
mainlyforfrontendloaderoperation,butmayalsobe
usedtooperateotherfrontmountedimplements.

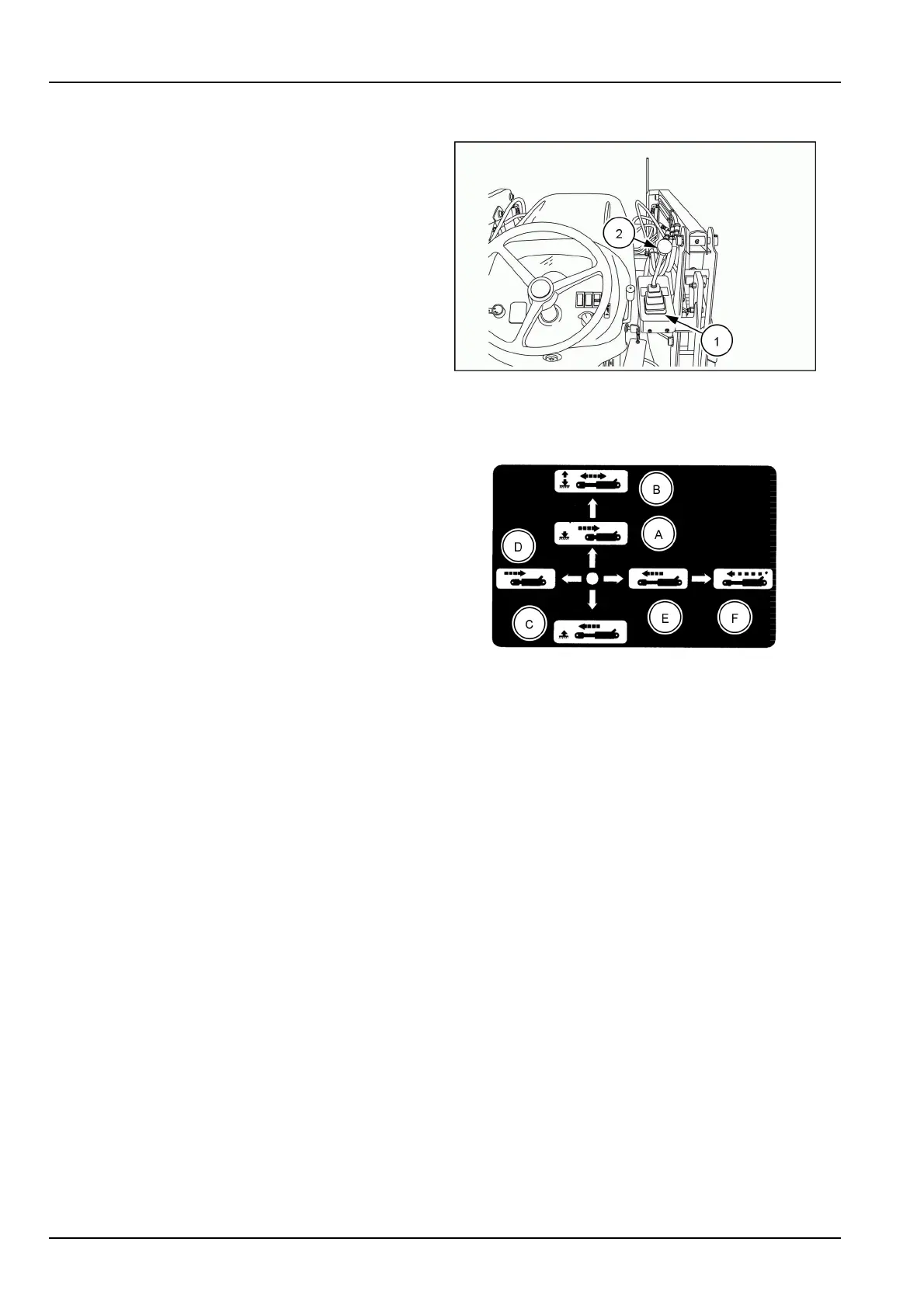

NHIL13CT00001AA1
Valveoperation
Tooperatethetwo-spoolvalve,movethecontrollever(2)
inanyofthefourdirections.
Releasethecontrollevertostopthecylinderinanyposi-
tion,theleverautomaticallyreturnstoneutral.
NOTE:Ifyoumovethecontrolleverdiagonallytheloader
andbucketwilloperateatthesametime.
•
Movethecontrolleverforwardtolowertheloaderor
retractliftcylinders(A).
•
Movethecontrolleverfullyforwardto"FLOAT"the
loaderboom(B)whichallowstheliftcylinderstoextend
orretractfreely.
•
Movethecontrolleverrearwardtoraisetheloaderor
extendliftcylinders(C).
•
Movethecontrollevertothelefttocurlthebucketor
retractthebucketcylinders(D).
•
Movethecontrollevertotherighttodumpbucketor
extendcylindersatslowerrate.(E).
•
Movethecontrolleverfullytotherighttodumpbucket
orextendcylindersatfasterrate.(F).
NOTE:Donotusethe"FLOAT"positioniftheloaderis
raisedtoitshighestposition.
SBA86532911N2
Valvelock
ThisstyleofmidmounttwospoolvalvedoesNOThave
avalvelockfeature.
3-20

New Holland WORKMASTER 40 Specifications

General

Manufacturer	New Holland
Model	WORKMASTER 40
Category	Tractor
Engine Type	Diesel
Engine Power	40 HP
3-Point Hitch	Category I
Wheelbase	73.2 inches
Hydraulic System	Open Center
Fuel Capacity	9.2 gallons
Transmission	8x8 Synchro Shuttle
