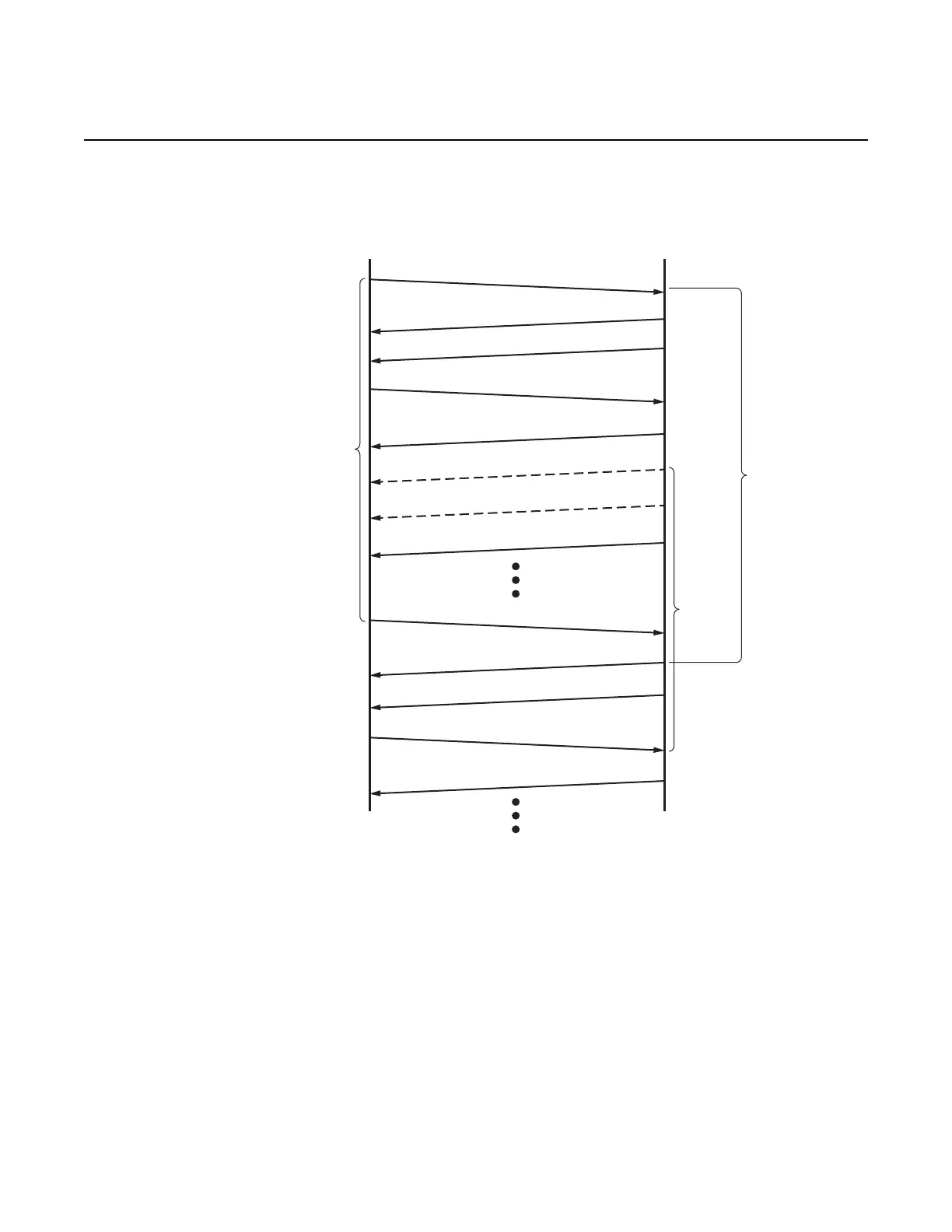

Figure 27 Messaging Sequence Between the PTP Slave Clock
and PTP Master Clocks
6.5.8.1 PTP Clock Synchronization
The IEEE 1588v2 standard synchronizes the frequency and time from a master clock
to one or more slave clocks over a packet stream. This packet-based
synchronization can be over unicast IP/UDP unicast or Ethernet multicast.
OSSG666
Announce
Duration
Interval
Sync
Duration
Interval
Signaling (Announce-grant)
Signaling (Announce-grant)
Signaling (Sync-grant)
Signaling (Sync-grant)
Sync
Sync
Announce
Announce
Announce
Signaling (Announce-request)
Signaling (Sync-request)
Signaling (Sync-request)
Signaling (Announce-request)
Packet
Master
Packet
Slave
Unicast
Renewal
Interval
