P10 hose routing options
Installation
3-22
Part 1024496_06
2014 Nordson Corporation
Connecting Hoses and Guns (contd)

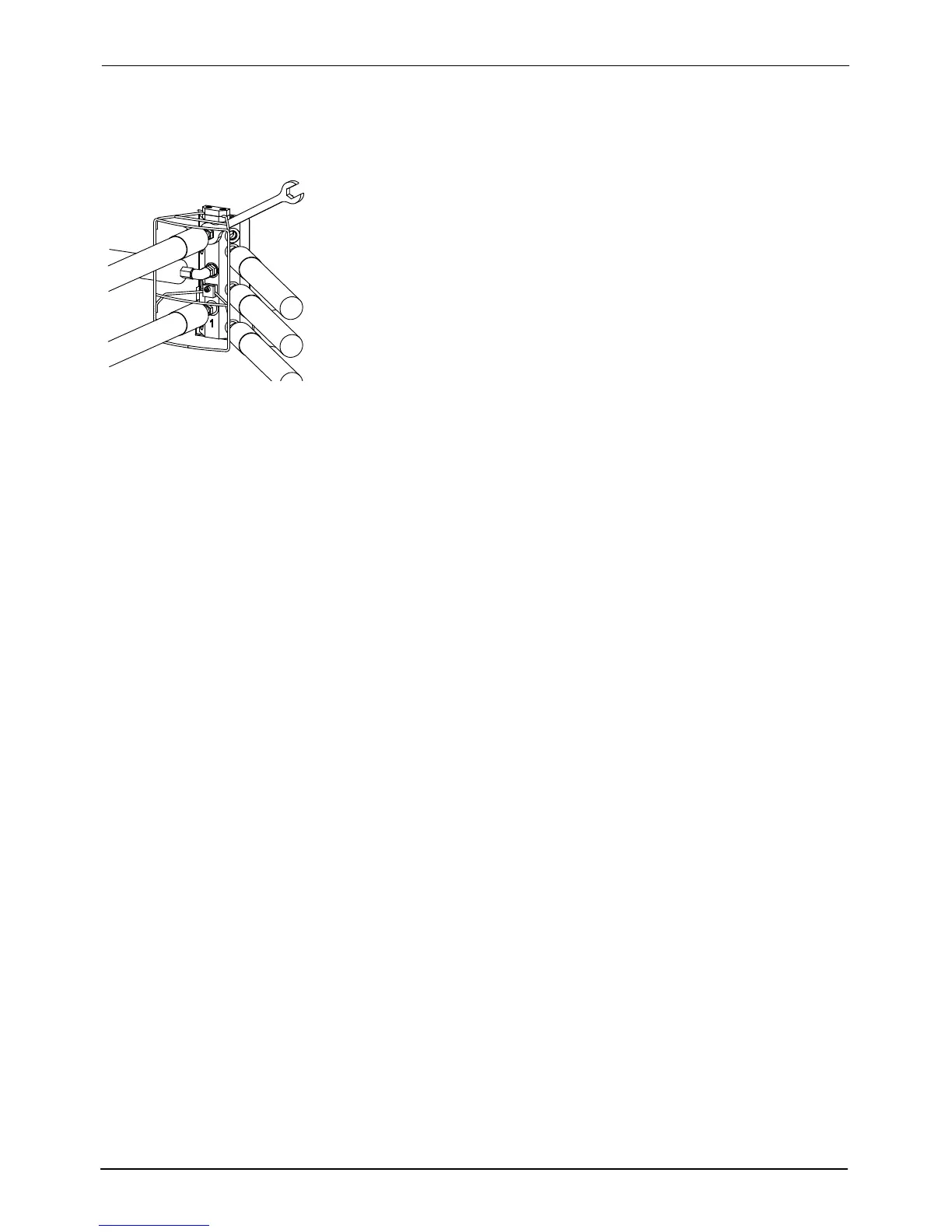

P10 Hose Routing Options
The unique angled design of the manifold on the P10 melter allows each
hose (six hoses maximum) to be routed in the same or different directions
without interfering with each other. Use the 45‐ or 90‐degree hose fitting
supplied with the melter. Additional 45‐degree, 90‐degree, and straight
fittings may be ordered to customize your hose configuration.
To connect guns
Observe the following guidelines:
ProBlue melters support all T‐style handguns.
For information about choosing the most appropriate Nordson hot melt
gun for your manufacturing process, refer to the latest edition of
Nordson's hot melt dispensing equipment Replacement Parts Catalog or
contact your Nordson representative. Refer to Appendix A, Calculating
Melter Power Requirements, for information about how to calculate the
power required by Nordson hot melt guns.
Refer to the user's guide that is shipped with each gun for information
about installing the gun and connecting a hose to the gun.
NOTE: ProBlue melters are shipped with a 100‐mesh (.15 mm) hot melt filter
installed in the pump. Order the appropriate gun nozzle based on this filter
mesh size.
