Polaris RZR 900 2016 Service Manual

3.112
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.

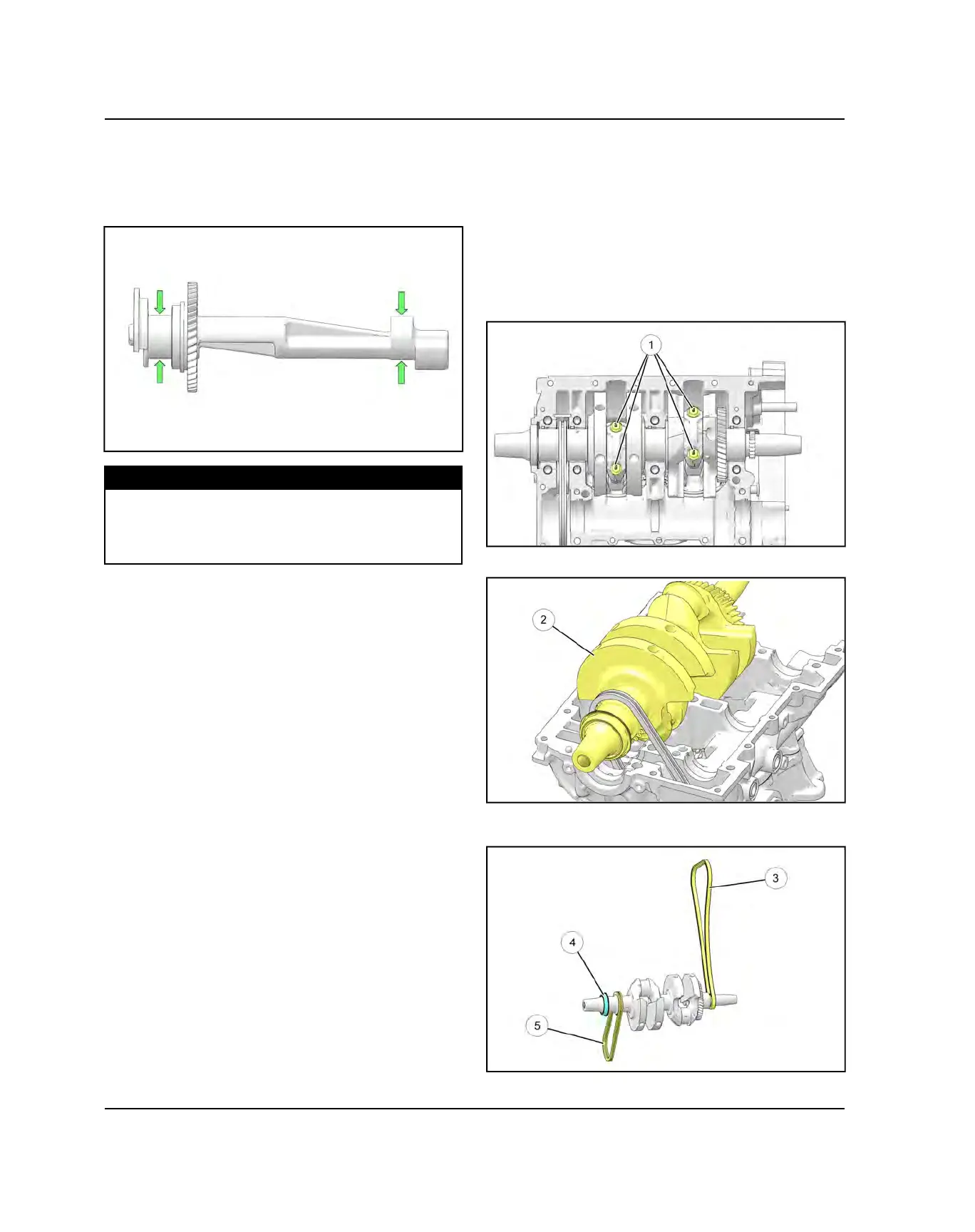

5. Measure each bearing journal in two locations, 90
degrees apart. Replace balance shaft if either journal
is worn below the service limit specification. If worn
past the service limit, replace the balance shaft
assembly.
MEASUREMENT
Balance Shaft Diameter (MAG & PTO):
1.4939 - 1.4946" (37.946 - 37.962 mm)
Service Limit:
1.4921" (37.900 mm)
CRANKSHAFT REMOVAL / INSPECTION
1. Perform Crankcase Disassembly / Inspection, page
3.109 procedure.
2. Perform Balance Shaft Removal / Inspection, page
3.111 procedure.
3. For ease of assembly, mark each connecting rod and
end cap.
4. Loosen, remove and discard the four connecting rod
bolts
q
. Remove the end caps from the crankshaft.
5. Carefully lift the crankshaft
w
out of the crankcase.
6. Remove the cam chain
e
, oil pump drive chain
t
and PTO main seal
r
from the crankshaft.
ENGINE / COOLING SYSTEM
