9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

5.11

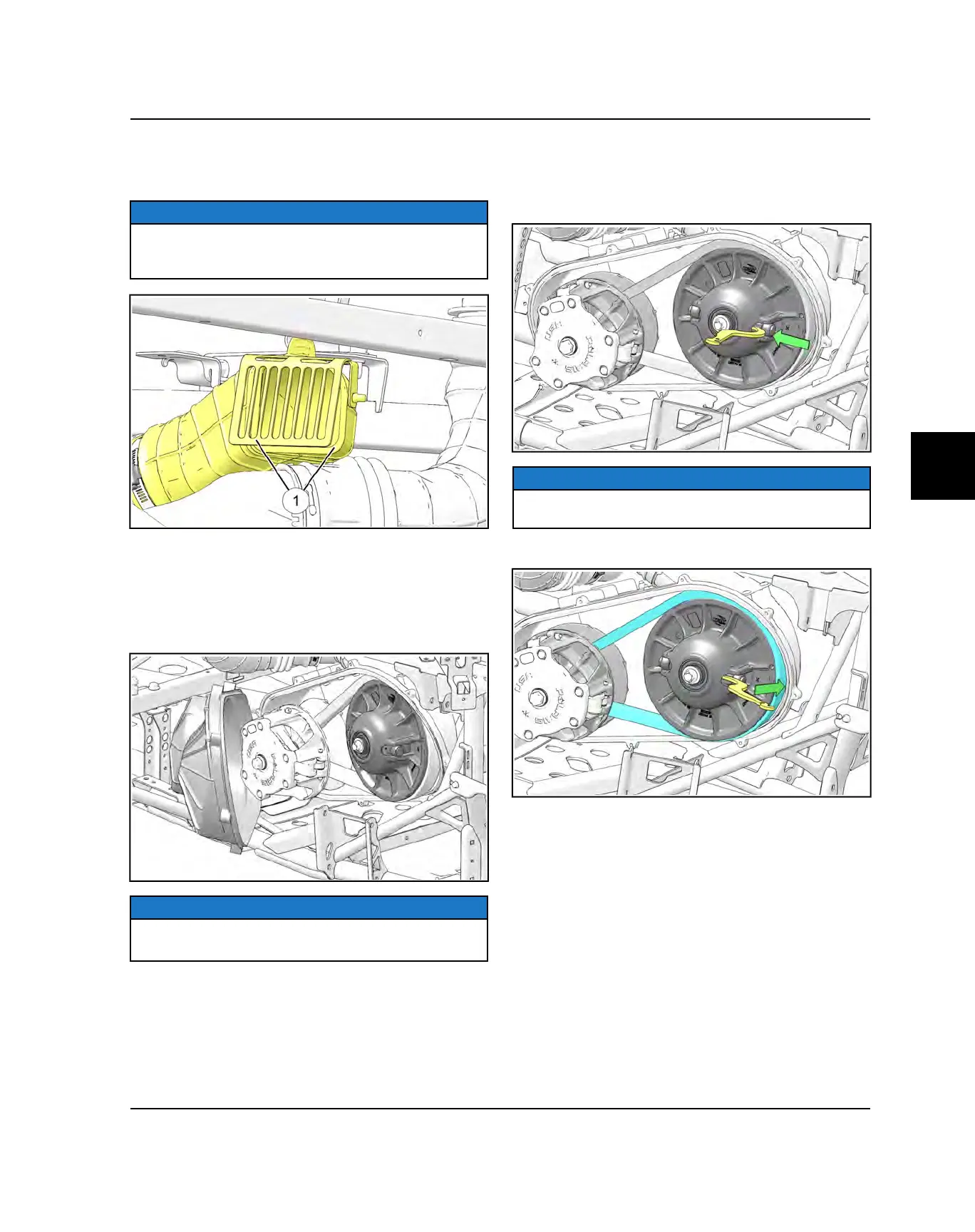

DRIVE BELT

BELT REMOVAL (EBS)

NOTE

Inspect the entire clutch outlet duct (including the outlet

duct screen) when replacing a drive belt. Remove any

debris found in the outlet duct or outlet duct screen

1. Remove the grease fitting on the left rear upper

control arm.

2. Remove the eight screws that retain the outer clutch

cover.

3. Maneuver the outer clutch cover outward as shown

below to access the drive belt.

NOTE

Removal of left rear wheel or left rear shock is NOT

necessary for belt replacement.

4. Mark the drive belt direction of rotation so that it can

be installed in the same direction.

5. Insert clutch spreader tool (2877408)

into the

driven clutch as shown (tool included with vehicle’s

tool kit).

NOTE

Make sure the tool is square with the moveable sheave

surface of the driven clutch.

6. Rotate tool towards the clutch to open the sheaves.

7. Walk the belt out of the driven clutch and drive clutch.

Remove the belt from the vehicle.

PVT SYSTEM
