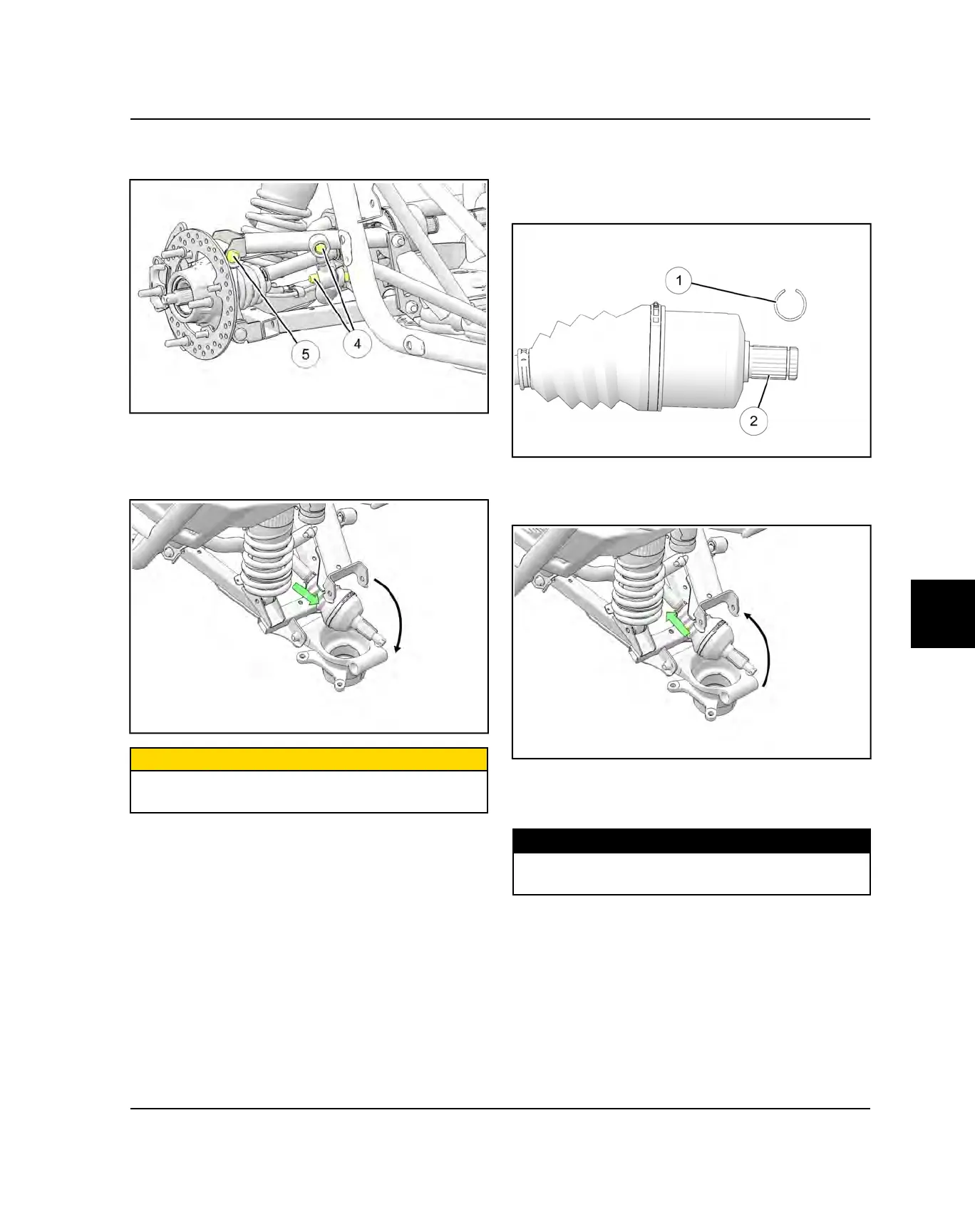

7.13
6. 50″ ONLY Remove the fasteners
r
retaining the rear
stabilizer bar to the upper control arm.
7. Remove the fasteners
t
retaining the upper control
arm to the bearing carrier.
8. Rotate the bearing carrier down while pushing in on
the half shaft.
CAUTION
Be careful not to pinch or stretch the brake line. Use
rope or wire to secure the bearing carrier.
9. With a quick, short jerk outward, remove the half shaft
from the transmission.
REAR HALF SHAFT INSTALLATION
1. If the half shaft is not being replaced, install a new
spring ring
q
on the half shaft. Apply anti-seize to the
splines
w
.
2. Align splines of the half shaft with transmission
splines and reinstall the half shaft by pushing in with a
quick jerk.
3. Install the half shaft through the carrier bearing and
rotate the bearing carrier upward. Install fasteners
e
and torque to specification.
TORQUE
Bearing Carrier Mounting Fasteners:
42 ft-lb (57 Nm)
