DRIVEN CLUTCH SERVICE (EBS)

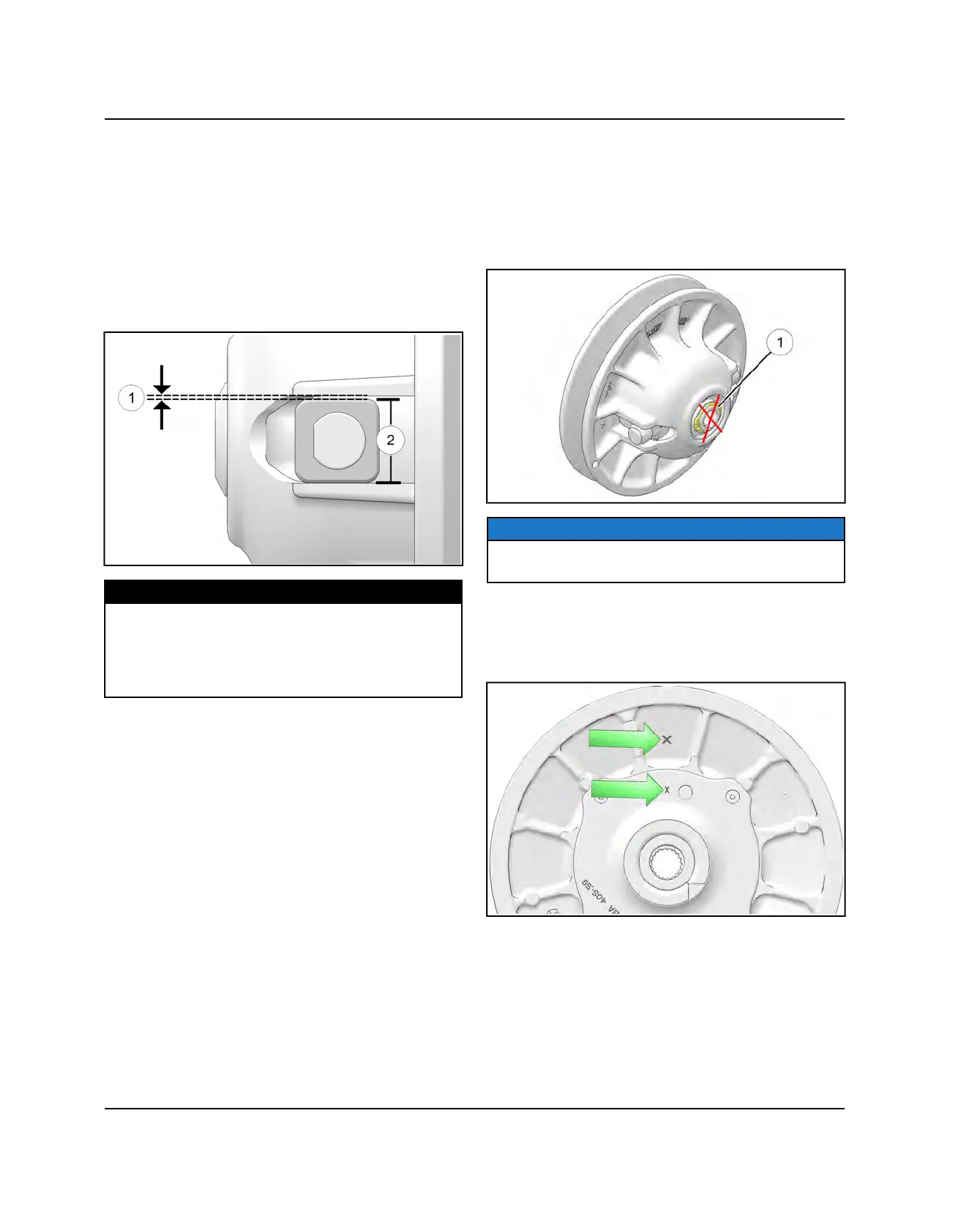

DRIVEN CLUTCH SLIDER INSPECTION

The square sliders can be inspected with the driven

clutch installed on the vehicle.

Using a feeler gauge, measure the distance between the

slider and the stationary sheave at the widest point

. If

the measurement is over the service limit, the sliders or

driven clutch will need to be replaced. Also measure the

width of the slider block

. Replace the sliders if they are

smaller than the service limit.

MEASUREMENT

Slider to Sheave Clearance

Service Limit: 0.175″ (4.5 mm)

Slider Width

Service Limit: 0.975″ (24.8 mm)

DRIVEN CLUTCH DISASSEMBLY

1. Remove driven clutch from the transmission input

shaft. Do NOT attempt disassembly of the driven

clutch from the outside snap ring

. The driven

clutch must be disassembled from the helix side.

NOTE

If driven clutch is difficult to remove, use 2871056

Driven clutch puller to remove driven clutch.

2. It is important to mark the position of the shaft, cam

cover and sheave with a grease marker or tape

before disassembly or use the X’s on the components

for reference. This will aid in assembly and maintains

clutch balance.
