STEERING ASSEMBLY (NON-EPS)

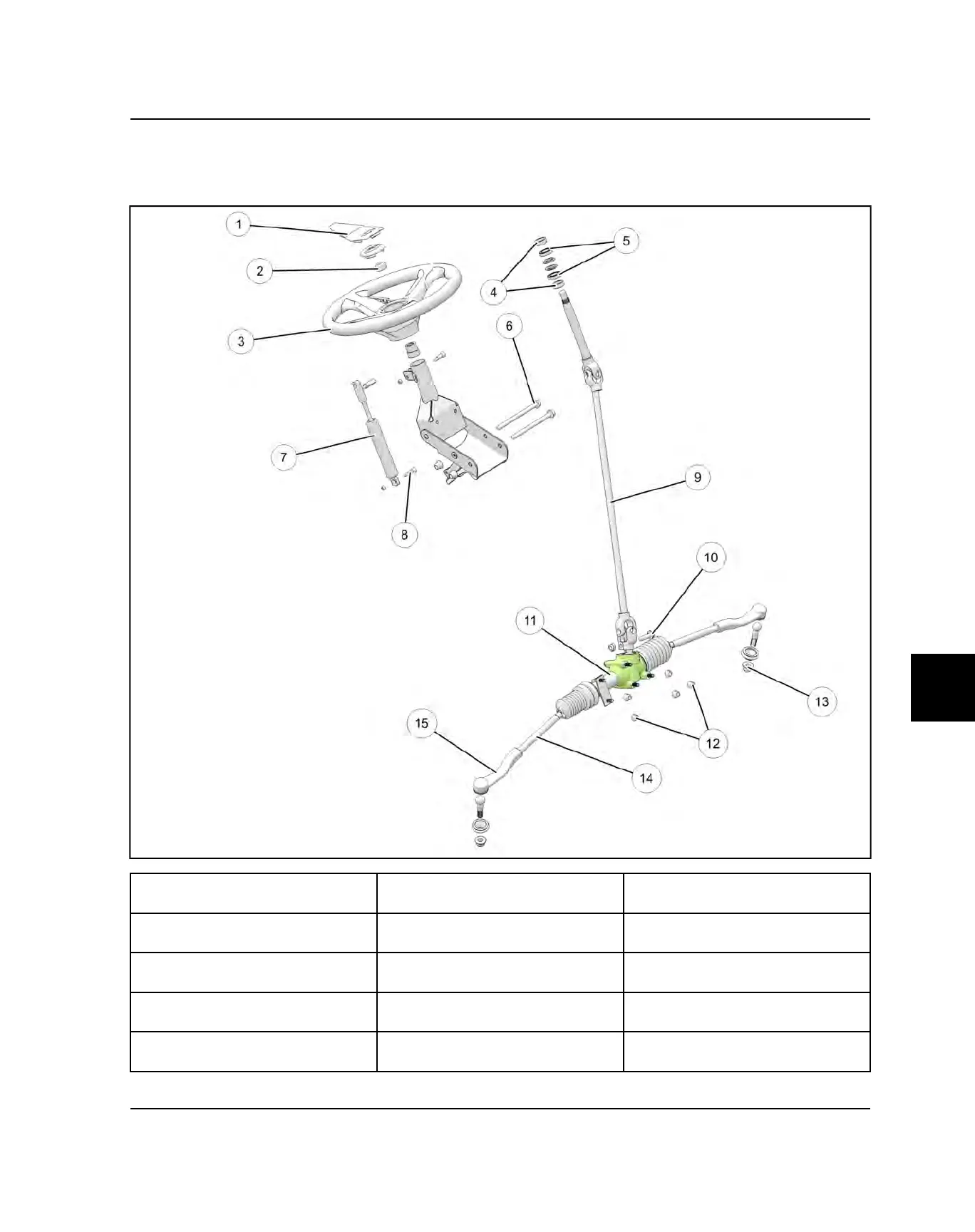

STEERING ASSEMBLY VIEW
q
Steering Wheel Cover
y
Steering Pivot Fasteners
40 ft-lb (54 Nm)
s
Steering Rack
w
Steering Wheel Nut
65 ft-lbs (88 Nm)
u
Tilt Steering Shock
d
Rack Mounting Fasteners
16 ft-lbs (22 Nm)
e
Steering Wheel
i
Tilt Shock Fasteners
7 ft-lb (10 Nm)
f
Tie Rod End Nuts
30 ft-lbs (41 Nm) + 90°
r
Bushing
o
Steering Shaft
g
Tie Rod Jam Nut
14 ft-lbs (19 Nm)
t
Bearing
a
Shaft to Rack Fasteners
48 ft-lb (65 Nm)
h
Tie Rod End
