REAR BRAKES

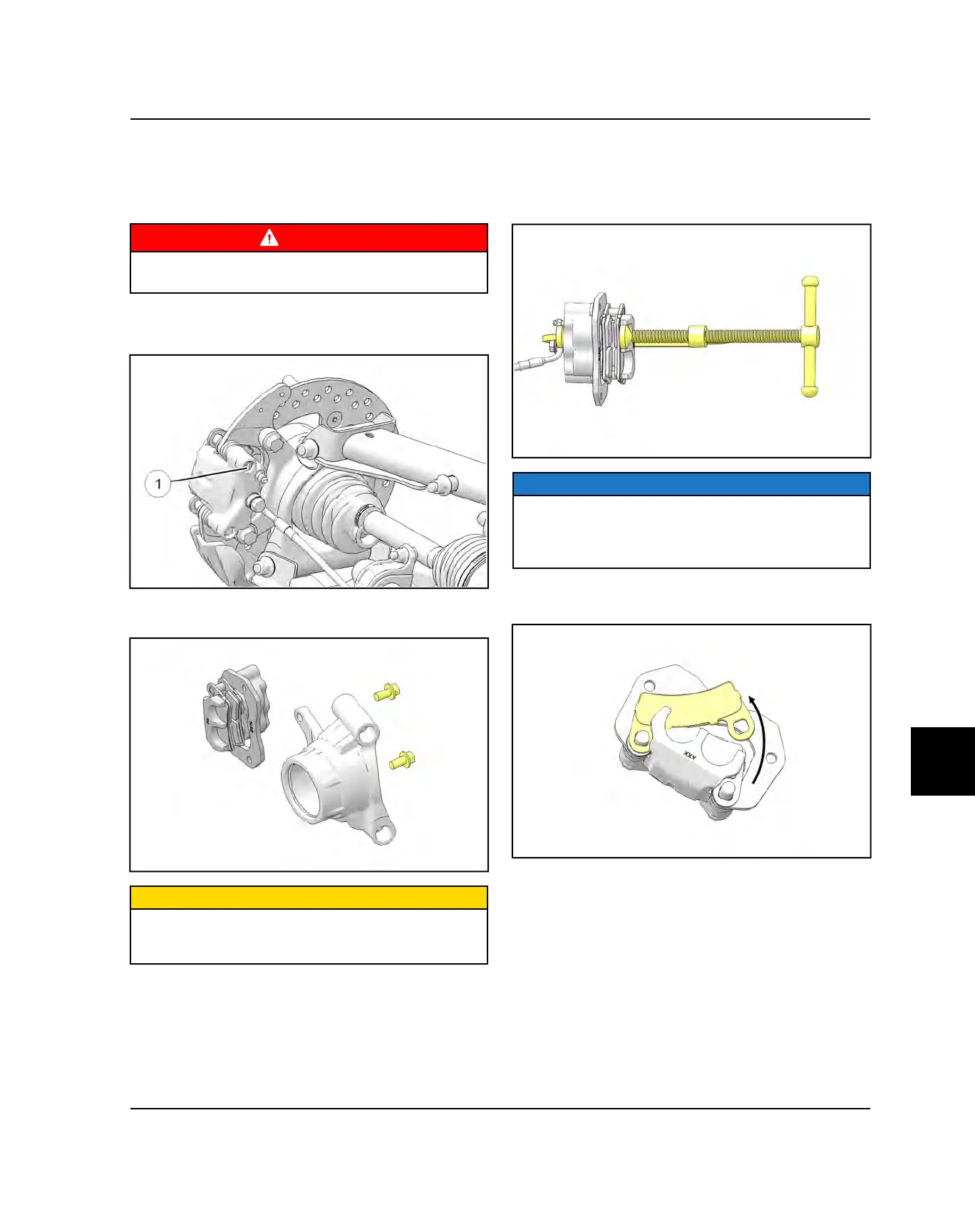

REAR CALIPER / BRAKE PAD REMOVAL

1. Elevate and support rear of vehicle.

WARNING

Use care when supporting vehicle so that it does not tip

or fall. Severe injury may occur if machine tips or falls.

2. Remove the rear wheel.

3. Loosen pad adjuster screw

2-3 turns.

4. Remove the two caliper mounting bolts and lift caliper

off the brake disc.

CAUTION

When removing caliper, be careful not to damage brake

line. Support caliper to avoid kinking or bending brake

line.

5. If brake caliper will not come off, push caliper piston

into the caliper bore slowly using a C-clamp or locking

pliers with pads installed.

NOTE

Brake fluid will be forced through compensating port

into master cylinder fluid reservoir when piston is

pushed back into caliper. Remove excess fluid from

reservoir as required.

6. Push caliper mounting bracket inward and slip outer

brake pad past the edge to remove.

7. Remove the inner brake pad.

BRAKE SYSTEM

Polaris RZR 900 2016 Service Manual
