3.136

9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

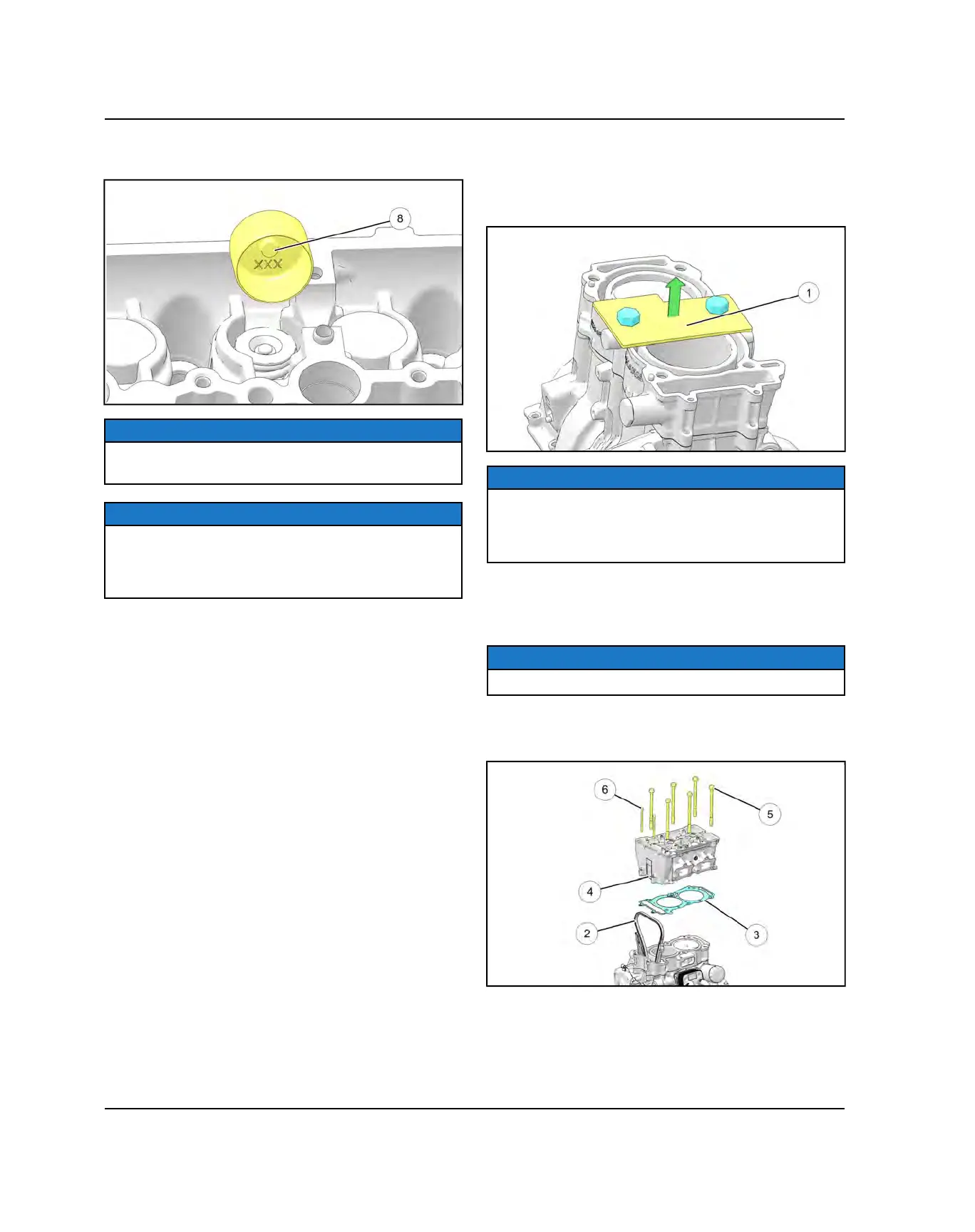

11. Install the valve adjustment tappet

for each valve

in the order they were removed.

NOTE

Refer to Valve Clearance Adjustment, page 3.142

procedure for proper tappet selection.

NOTE

If any valve train components were replaced, refer to

“Valve Clearance Adjustment”, page 3.142 procedure

prior to Camshaft Installation / Timing, page 3.137

procedure.

CYLINDER HEAD INSTALLATION

1. Rotate the engine so the cylinder is facing up.

2. Remove the Cylinder Holding & Camshaft Timing

Plate (PU-50563)

from the cylinder.

NOTE

Once the cylinder head is removed, nothing retains the

cylinder to the engine. DO NOT rotate the engine

without using the Cylinder Holding & Camshaft Timing

Plate (PU-50563).

3. Prepare cylinder head gasket sealing surfaces by

cleaning thoroughly to remove all residue. The head

gasket must be installed clean and dry, free from oil

or grease.

NOTE

Do not touch sealing surfaces of gasket.

4. Guide cam chain

through a new head gasket

and install the gasket on the cylinder, locating it on

the alignment pins.

5. Carefully set the cylinder head

in place on

alignment pins.

6. Install new bolts and finger tighten the six cylinder

head bolts

evenly.

ENGINE / COOLING SYSTEM

Polaris RZR 900 2016 Service Manual
