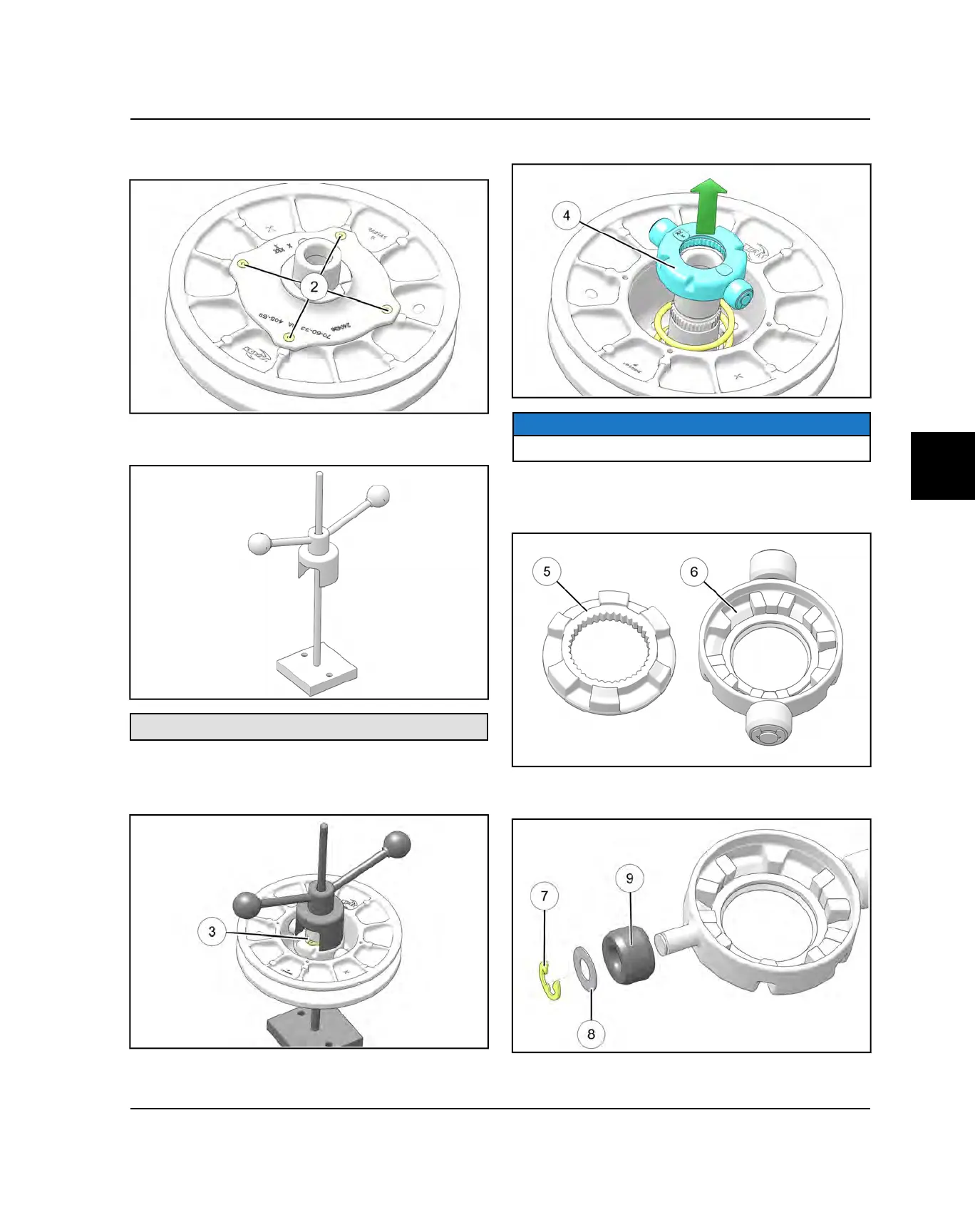

3. Remove the four screws
w
that secure the cam
(helix) assembly using a T25 Torx driver.
4. Place the driven clutch into the Universal Clutch
Compressor.
Universal Clutch Compressor: PU-50518-A
5. Press down on the top of the spider assembly,
pushing the spider onto the shaft. Remove snap ring
e
and slowly release the assembly.
6. Remove the spider assembly
r
and spring.
NOTE
Spring is compression only and has no torsional wind.
7. Remove the inside spider plate
t
and spider
dampener
y
. Inspect the spider dampener for wear
and replace if needed.
8. Remove the E-clips
u
, washers
i
, and the clutch
rollers
o
. Inspect the rollers for wear; replace if worn.
9. Remove the clutch assembly from the holding tool.
