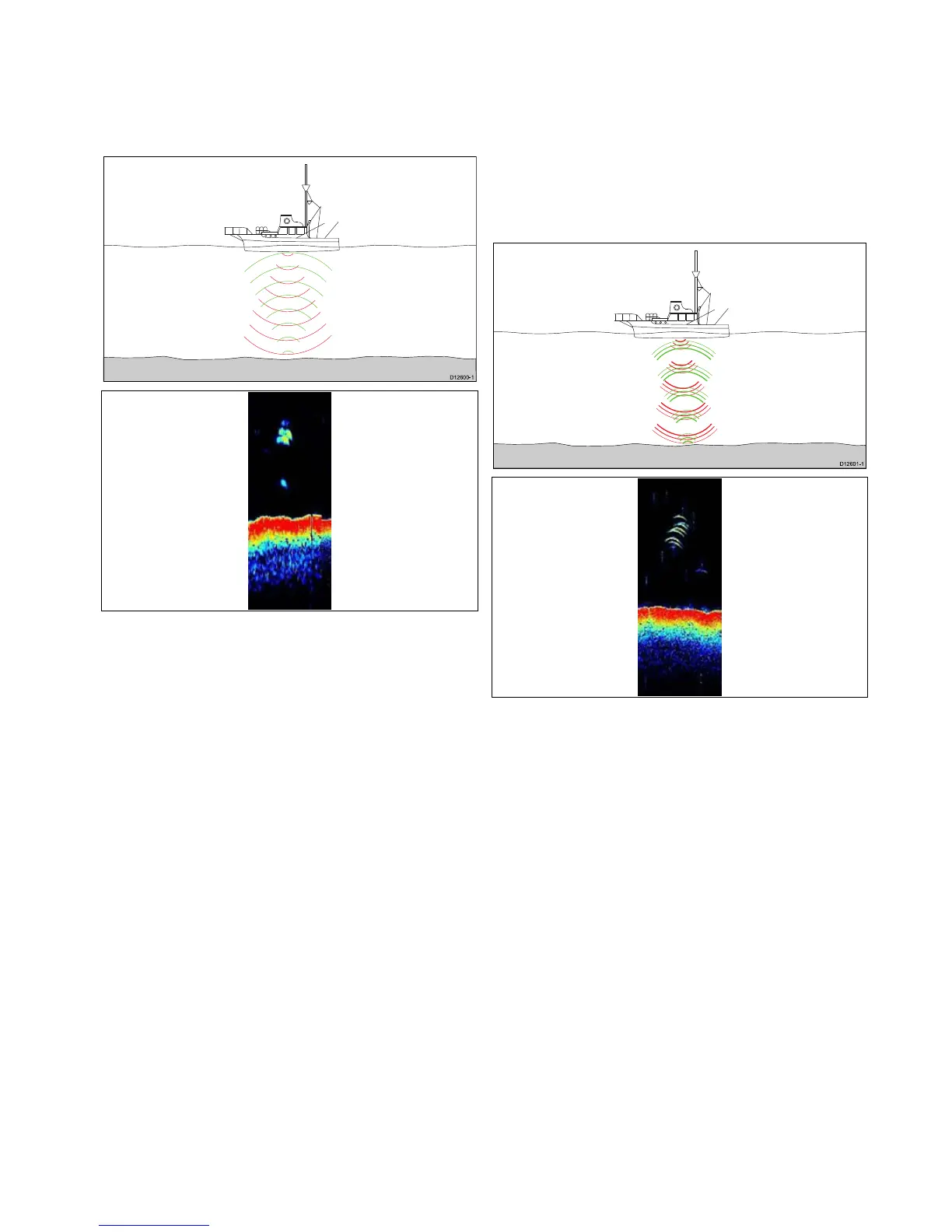

17.3Traditionalsonartechnology

Traditionalsoundersuseasinglecarrierfrequencyorcarrier

waveforthesonarping.Thesesoundersworkbymeasuring

thetimeittakesthepingechotoreturntothetransducerto

determinetargetdepth.Usingthismethodif2targetsareclose

togethertheycanbeshownasasinglelargetarget,ratherthan

multiplesmallertargets

D12 60 0-1

17.4BroadbandCHIRPsonar

technology

Broadbandsonarsuseasweptfrequency'CHIRP'signalwhich

candistinguishbetweenmultipleclosetargets,thisenables

thesonartodisplaymultipletargetsinsteadoflargecombined

targets.

Someofthebenetsareimproved:

•T argetresolution.

•Bottomdetectioneventhroughbaitballsandthermoclines.

•Detectionsensitivity.

D12 60 1-1

Fishnderapplication

185
