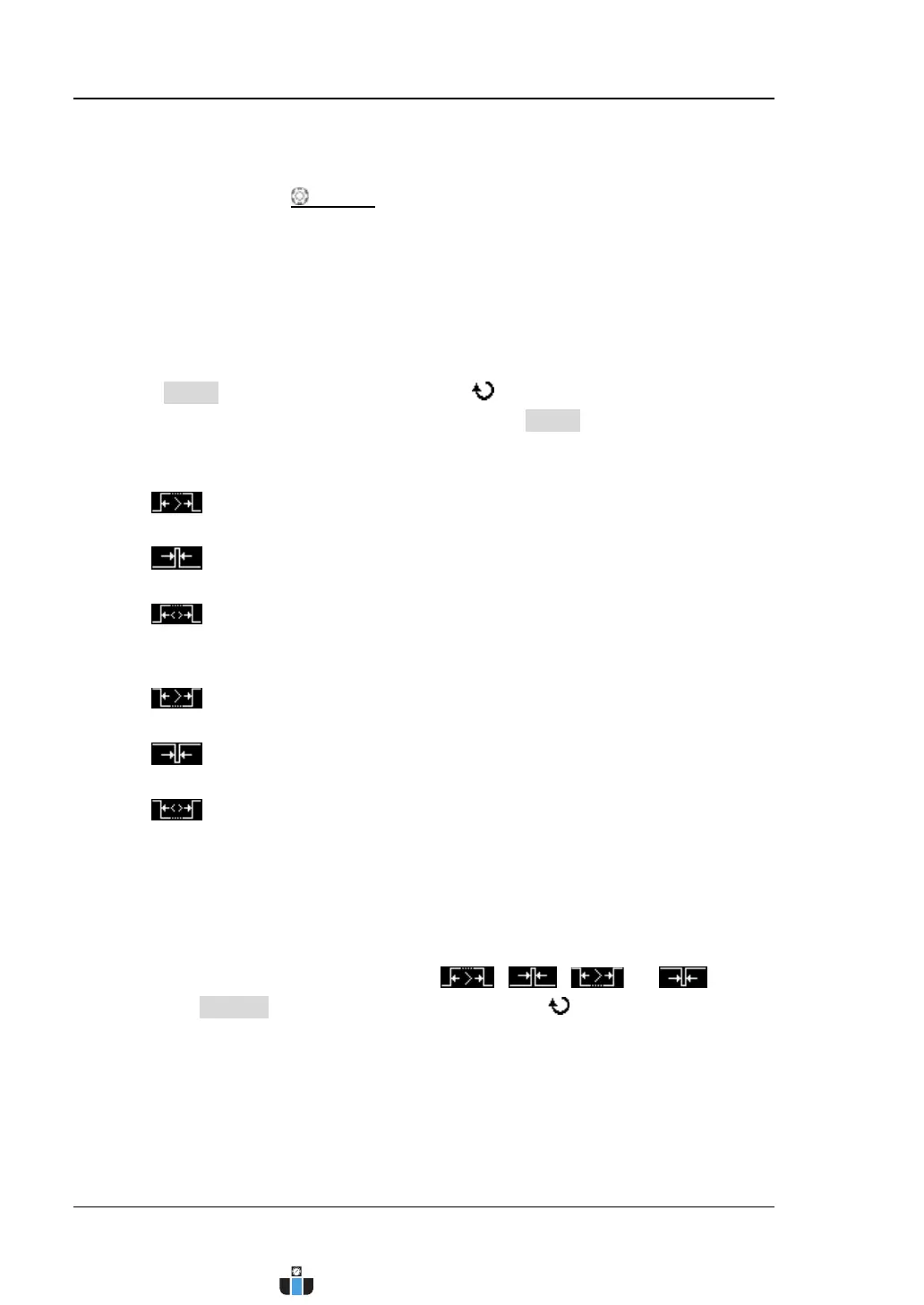

RIGOL Chapter 5 Trigger
5-14 MSO4000/DS4000 User’s Guide
source.
2) Turn TRIGGER
LEVEL to adjust the trigger level (when the trigger
source is CH1 to CH4 or EXT) or threshold level (when the trigger source is
D0 to D15) (please refer to “
Trigger Level/Threshold Level”). The
current trigger level/threshold level is displayed at the upper-right side of
the screen.
2. Specify the pulse width condition
Press When, turn the multi-function knob to select the desired pulse width
condition and press the knob. You can also press When continuously to switch
the current pulse width condition. The pulse type of the pulse width condition
currently selected is displayed at the upper-right side of the screen.
 : trigger when the positive pulse width of the input signal is greater
than the specified pulse width setting.
 : trigger when the positive pulse width of the input signal is lower
than the specified pulse width setting.

: trigger when the positive pulse width of the input signal is greater
than the specified lower limit of pulse width and lower than the upper limit
of pulse width.

: trigger when the negative pulse width of the input signal is greater
than the specified pulse width setting.
 : trigger when the negative pulse width of the input signal is lower
than the specified pulse width setting.

: trigger when the negative pulse width of the input signal is greater
than the specified lower limit of pulse width and lower than the upper limit
of pulse width.
3. Specify the pulse width range
The pulse width range is related to the current pulse width condition setting.
 When the pulse width condition is
, , or ,
press Setting and turn the multi-function knob or the inner knob of the
navigation knob to adjust the pulse width at a relatively smaller step or turn
the outer knob of the navigation knob to adjust the pulse width at a
relatively larger step. The range available is from 4 ns to 4 s.
Note: The larger the rotation amplitude of the outer knob of the navigation
knob is, the faster the variation of the value will be. When you need to
