RIGOL Chapter 13 Store and Recall
13-2 MSO4000/DS4000 User’s Guide
Storage System
The internal memory (Local Disk) of MSO4000/DS4000 can store at most 10 setting
files, 10 reference waveform files and 10 mask files of the Pass/Fail test. Besides,
this oscilloscope provides two USB Host interfaces (one located on the front panel
and another on the rear panel) used to connect USB storage devices for external
storage. The USB storage device connected is marked as “Disk D” (front panel) and

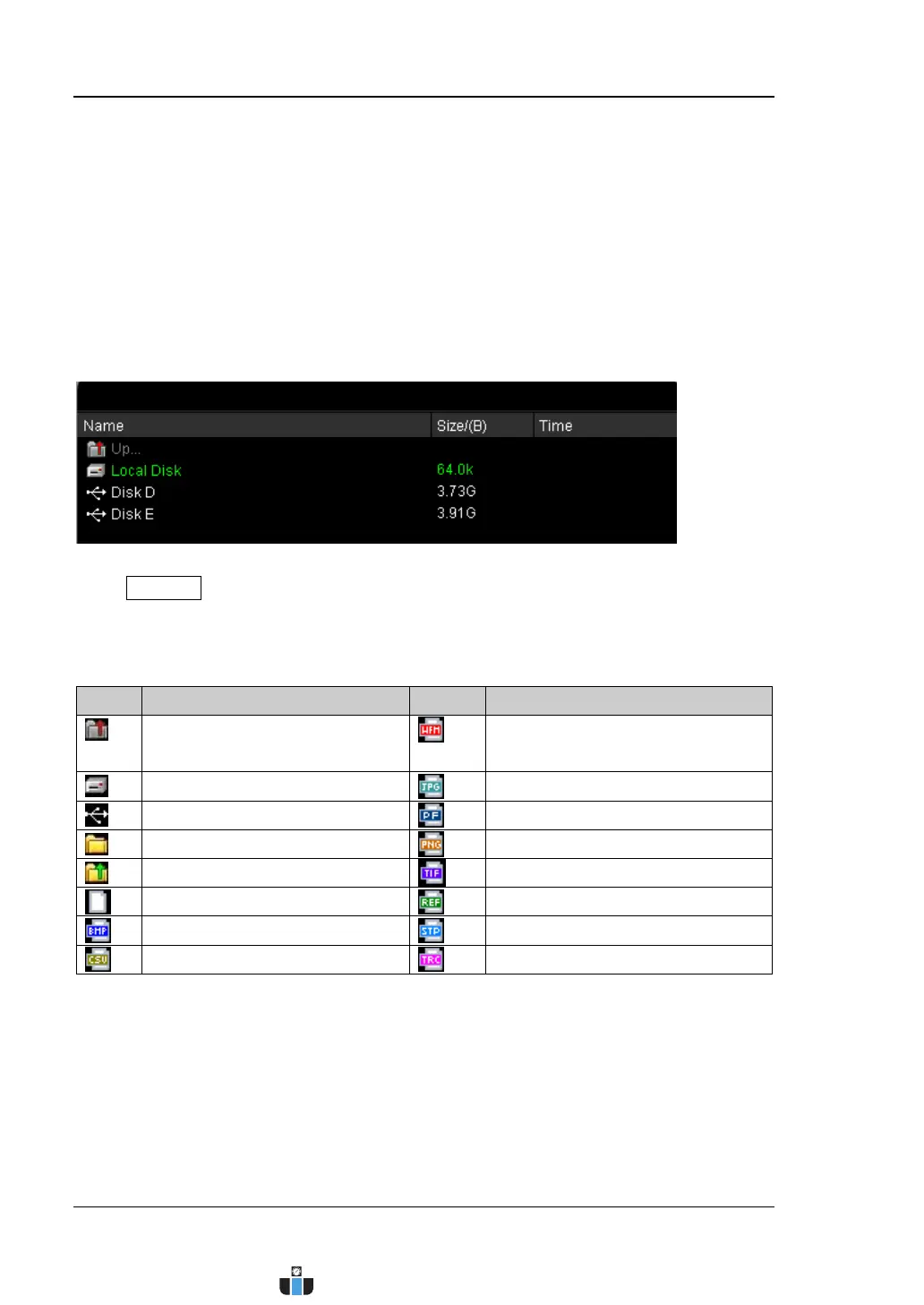

“Disk E” (rear panel). Below is the disk selecting interface:
Press Storage to enter the store and recall setting interface. When performing the
store or recall operation, the following icons might be displayed.
Table 13-1 Probable Icons
Icon Description Icon Description
Return to the previous disk
management interface
Waveform File
Local Disk Memory
JPEG File
External USB Storage Device
Pass/Fail Mask File
Folder
PNG File
Return to the previous folder
TIFF File
Unknown File
Reference Waveform File
Bitmap File
Setting File
CSV File
Trace File
