Chapter 2 Vertical System Setting RIGOL

MSO4000/DS4000 User’s Guide 2-13

To Turn Waveform Invert On/Off

Press CH1 and its backlight is illuminated; then, press Invert to turn on or off

waveform invert (the default is off). When waveform invert is turned off, the

waveform display is normal; when waveform invert is turned on, the waveform

voltage values are inverted (as shown in the figures below).

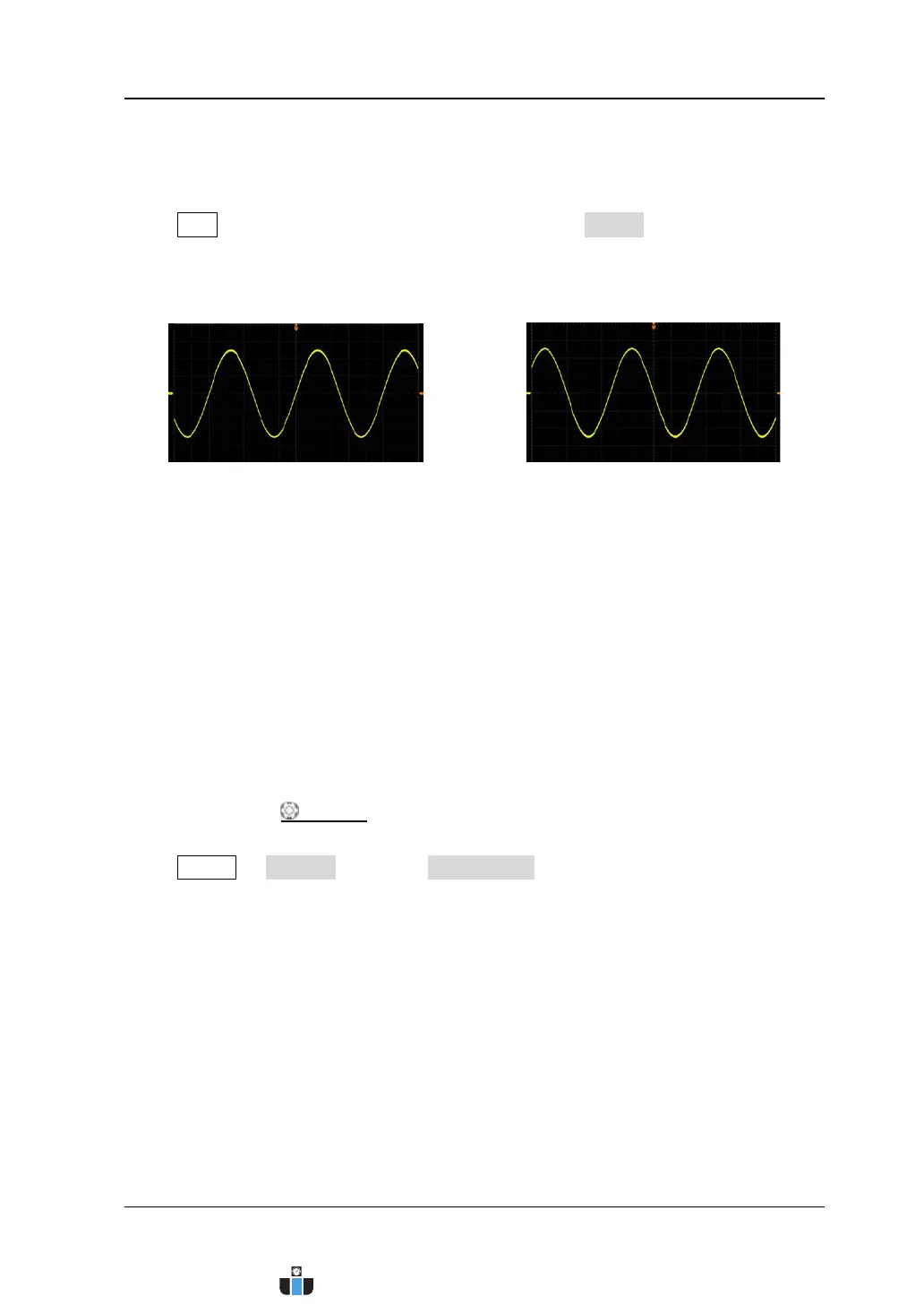

(a) “Invert” is On

(b) “Invert” is Off

Figure 2-1 Waveform Invert

Note: Turning waveform invert on will change the results of math operations and

waveform measurements.

To Specify the Vertical Reference

The vertical reference refers to the reference position according to which the

waveform of the corresponding channel is expanded or compressed vertically when

using VERTICAL

SCALE to modify the vertical scale of the analog channel.

Press Utility  System and press VerticalExp to switch the current vertical

reference (the default is Ground).

 Center: when the vertical scale is modified, the waveform of the corresponding

channel will be expanded or compressed relative to the center of the screen.

 Ground: when the vertical scale is modified, the waveform of the corresponding

channel will be expanded or compressed relative to the ground level.
