Chapter 5 Trigger RIGOL
MSO4000/DS4000 User’s Guide 5-41

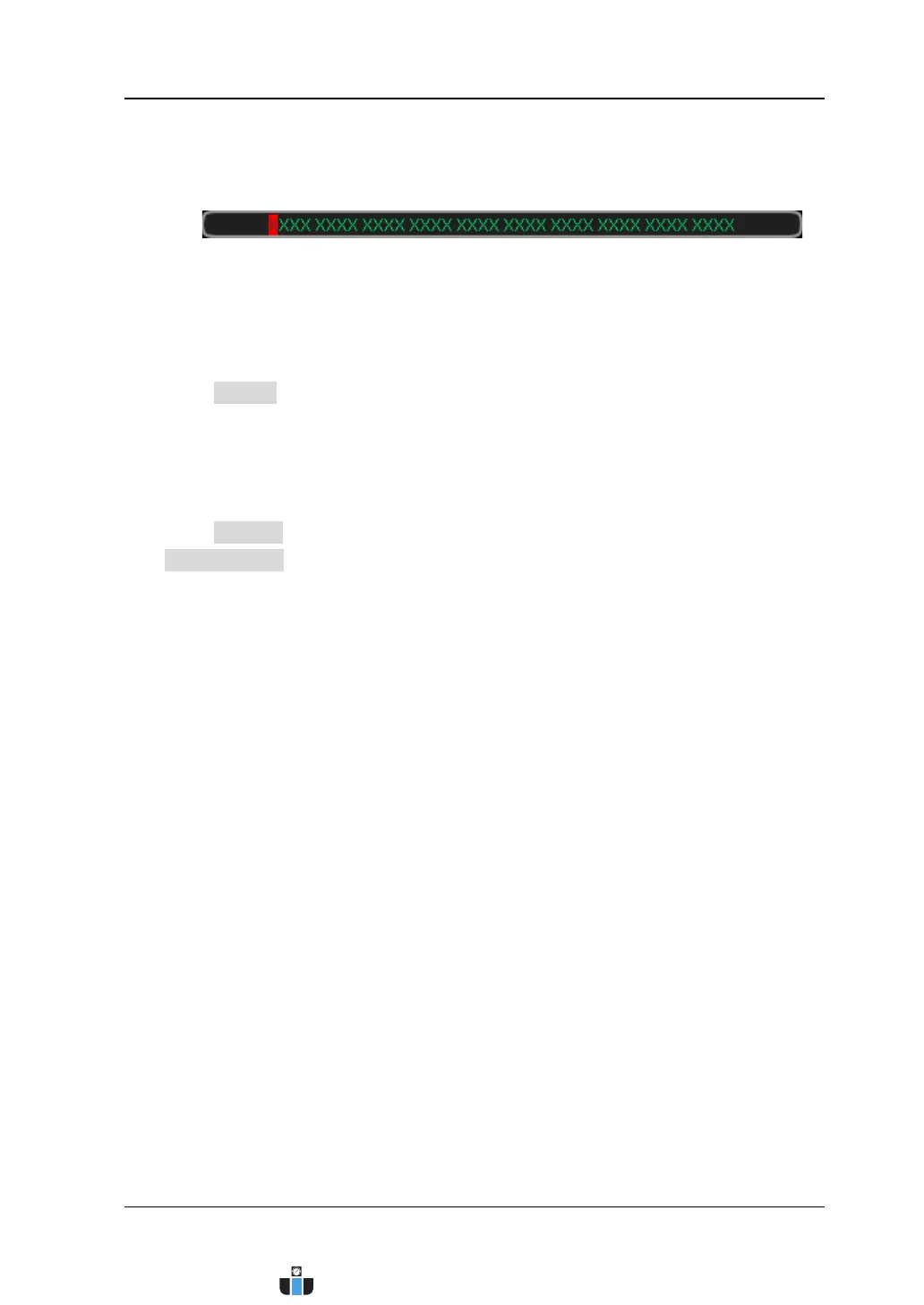

displayed at the bottom of the screen, as shown in the figure below. The bit
currently selected is highlighted in red. When the data parameter is
modified, the data information changes accordingly.
Please set the address and data parameters by referring to the
introductions in "Address" and "Data".
4. Specify the trigger mode
Press Sweep to select “Auto”, “Normal” or “Single” (please refer to “Trigger
Mode”). The corresponding status light of the trigger mode currently selected in
the trigger control area (TRIGGER) at the front panel turns on.
5. Turn the noise rejection on or off
Press Setting to enter the trigger setting submenu. In this submenu, press
Noise Reject to turn the noise rejection on or off (please refer to “Noise
Rejection”).
Note: When the clock line signal source or/and data line signal source is set to
D0 to D15, the noise rejection is invalid.
