Chapter 4 Wire Your Controller

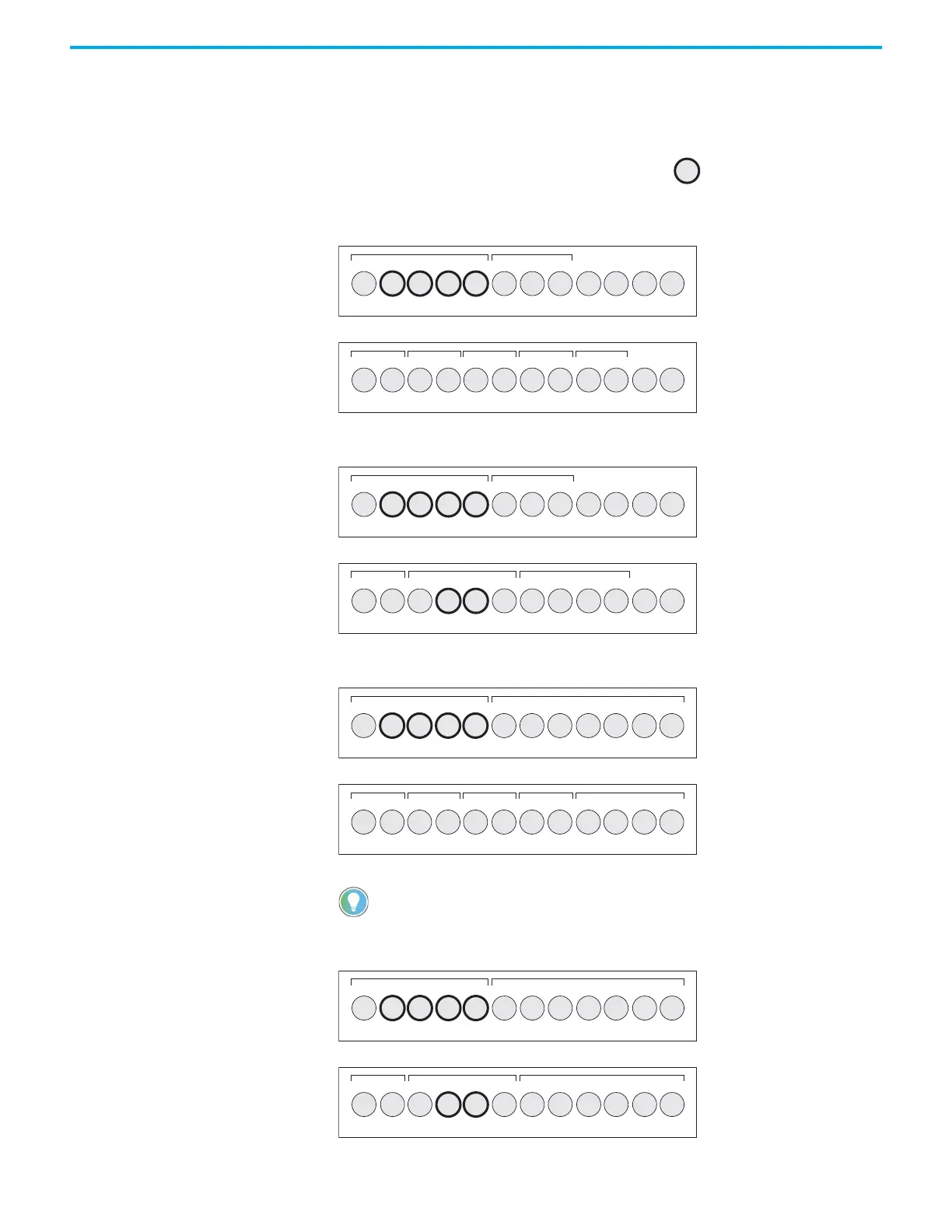

Wiring Diagrams The following illustrations show the wiring diagrams for the Micro800
controllers. Controllers with DC inputs can be wired as either sinking or
sourcing inputs. Sinking and sourcing does not apply to AC inputs.
High-speed inputs and outputs are indicated by .
2080-LC30-10QWB
2080-LC30-10QVB
2080-LC30-16AWB / 2080-LC30-16QWB
2080-LC30-16QVB
2080-LC30-16AWB has no high-speed inputs.
I-00
COM0 I-01
I-02
I-03
COM1
I-04
I-05 NC
NC
NC
NC
123456789101112
+DC24 CM0
O-00-DC24
CM1
O-01
CM2
O-02 O-03
CM3
NC
NC
123456789101112
Input terminal block
Output terminal block
I-00
COM0 I-01
I-02
I-03
COM1
I-04
I-05 NC
NC
NC
NC
123456789101112
+DC24 +CM0
O-00-DC24
O-01
-CM0
+CM1
O-02 -CM1
O-03
NC
NC
123456789101112
Input terminal block
Output terminal block
I-00
COM0 I-01
I-02
I-03
COM1
I-04
I-05 I-07
I-06
I-09
I-08
123456789101112
+DC24 CM0
O-00-DC24
CM1
O-01
CM2
O-02 O-03
CM3
O-05
O-04
123456789101112
Input terminal block
Output terminal block
I-00
COM0 I-01
I-02
I-03
COM1
I-04
I-05 I-07
I-06
I-09
I-08
123456789101112
+DC24 +CM0
O-00-DC24
O-01
-CM0
+CM1
O-02 -CM1
O-03
O-05
O-04
123456789101112
Input terminal block
Output terminal block
