Rockwell Automation Publication 2080-UM002L-EN-E - November 2021 67
Chapter 5 Communication Connections

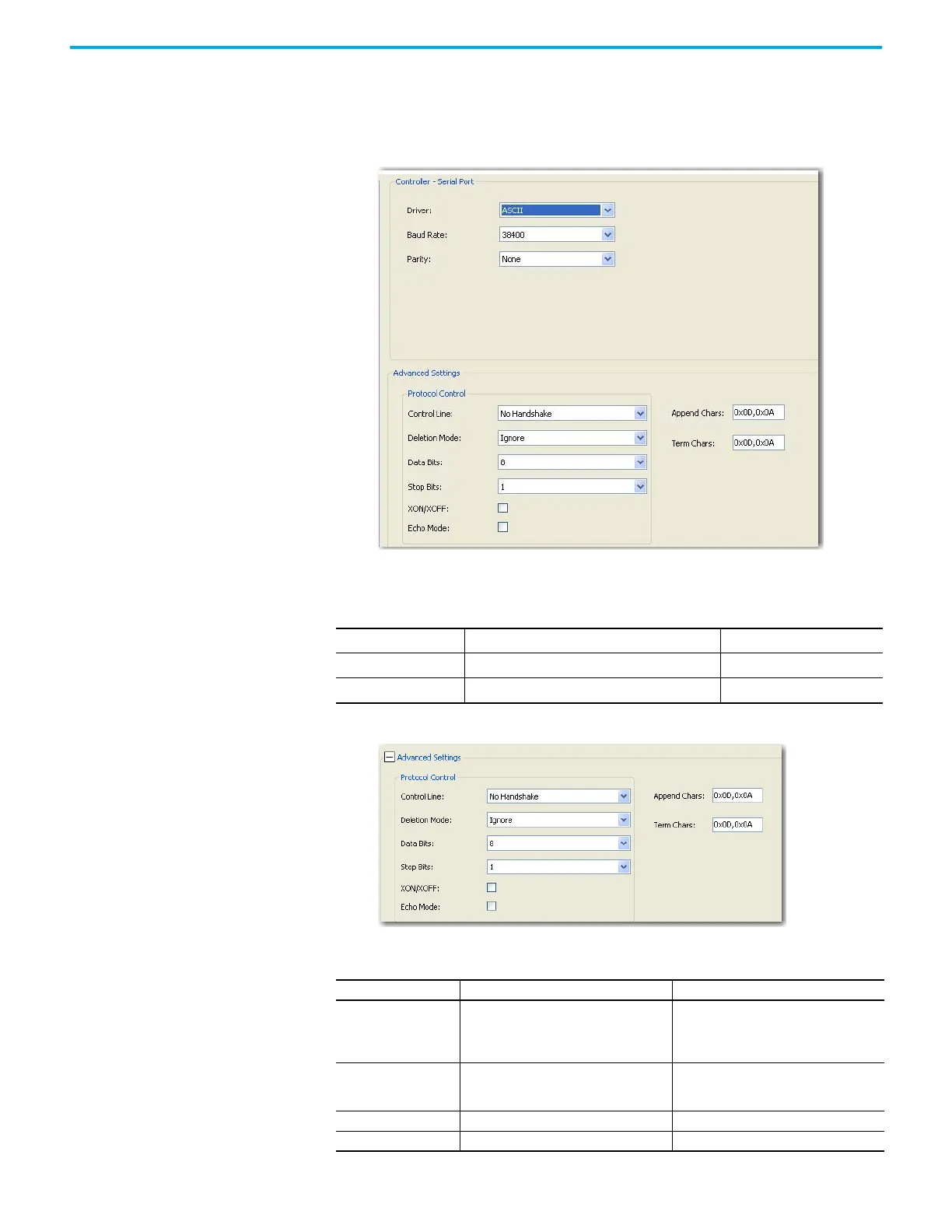

Configure ASCII
1. Open your Connected Components Workbench project. On the device
configuration tree, go to Controller properties. Click Serial Port.
2.
Select ASCII on the Driver field.
3.
Specify baud rate and parity.
4.
Click Advanced Settings to co
nfigure advanced parameters.
ASCII Parameters
Parameter Options Default
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400 19200
Parity None, Odd, Even None
ASCII Advanced Parameters
Parameters Options Default
Control Line
Full Duplex
Half-duplex with continuous carrier
Half-duplex without continuous carrier
No Handshake
No Handshake
Deletion Mode
CRT
Ignore
Printer
Ignore
Data bits 7, 8 8
Stop bits 1, 2 1
