Introduction
Introduction
Placement

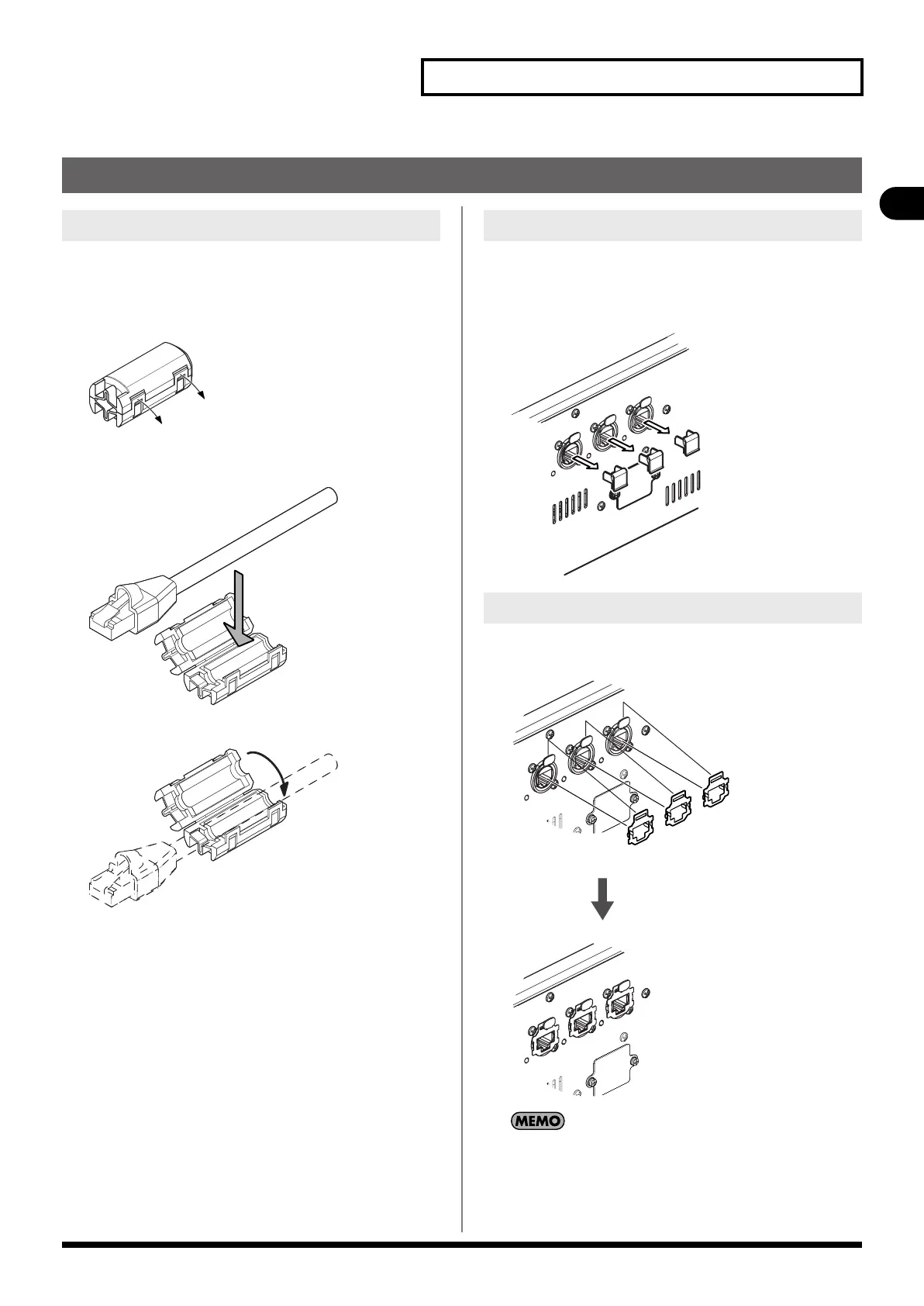

Before using the M-480, you must attach the ferrite cores to the
Ethernet cable or coaxial cable. This is for the purpose of
preventing electromagnetic noise; do not remove it.
1.
Spread the tabs, and open the ferrite core.
fig.core1.eps
2.
Attach a ferrite core near the RJ45 plug on the Ethernet
cable or near the RCA plug on the coaxial cable.
fig.core2.eps
3.
Close the ferrite core until you hear it snap shut.
fig.core3.eps
4.
Connect the plug with the ferrite core to the M-480’s
REAC port or DIGITAL OUT jack.
When the M-480 is shipped from the factory, REAC caps are
attached to the REAC ports. In order to use REAC port, you’ll need
to remove the REAC cap. Take care not to lose the REAC caps you
remove.
fig.connection.eps
When using an Ethernet cable with standard RJ45 plugs, fit the
included REAC connector covers on the REAC ports as shown.
fig.REAC-cover-inst3.eps
Remove the REAC connector cover if you’re using an EtherCon
type REAC cable (SC-W20F/SC-W100S/W100S-R). Take care not
to lose the REAC connector covers you removed.
Attaching the ferrite core
About the REAC caps
About the REAC connector covers
