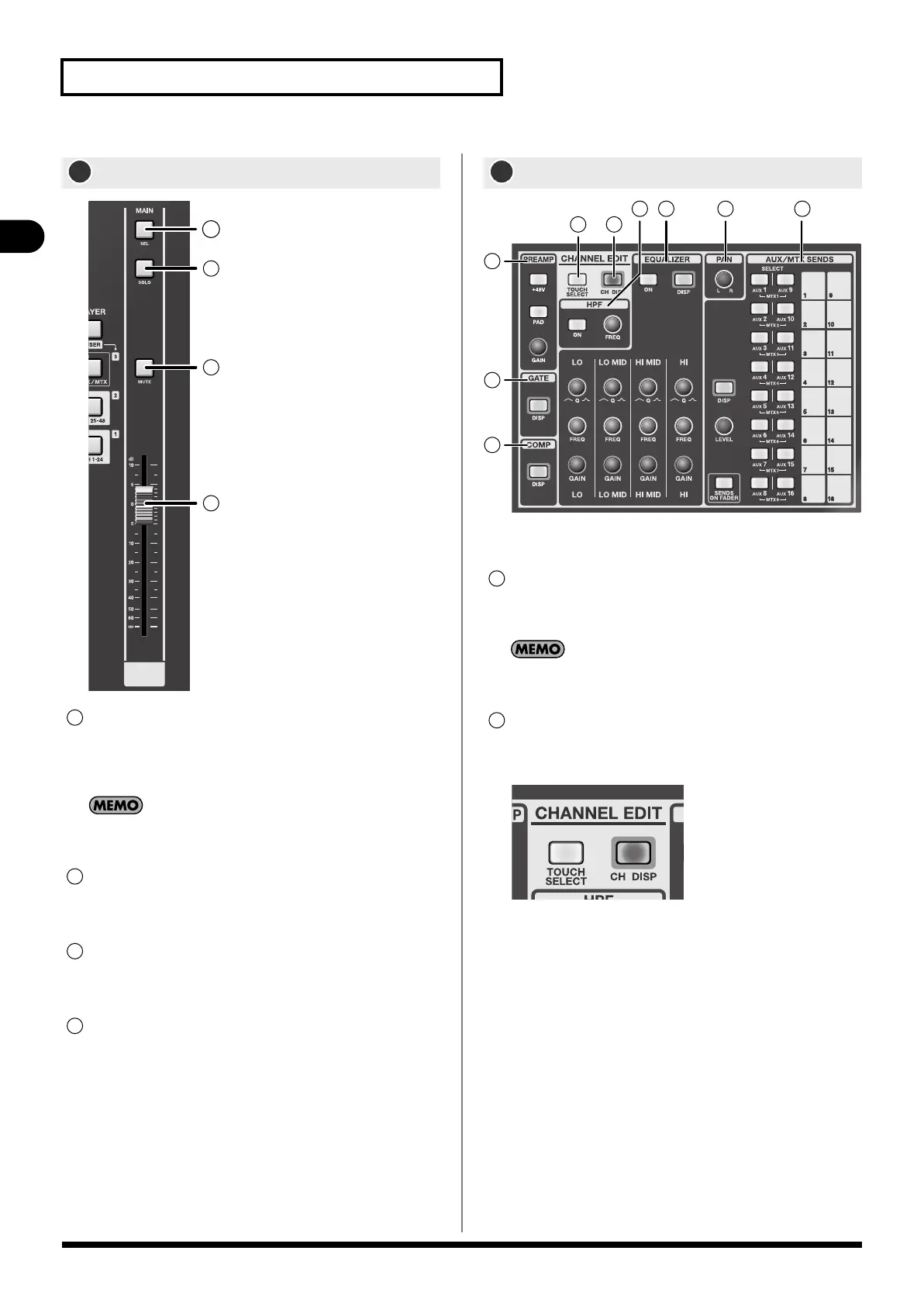

Explanation of the panels
Explanation of the panels
fig.MainFaderModGuide.eps
[SEL] button
This button selects the MAIN channel so that it can be
controlled from the CHANNEL EDIT section or in the screen.
It will light if the MAIN channel is selected.
By repeatedly pressing [SEL] you can alternately select the MAIN
L, MAIN R, or MAIN C channels.
[SOLO] button
This button turns solo on/off for the MAIN L/R/C channels. It
will be lit if solo is on.
[MUTE] button
This turns muting on/off for the MAIN L/R/C channel. The
button will be lit if mute is active.
Fader
This adjusts the signal level of the MAIN L/R/C channels.
fig.ChEditSectGuide.eps
In this section you can operate the main parameters of the
currently selected channel.
[TOUCH SELECT] button
This button turns the Touch Select function on/off. It will
light if the Touch Select function is on.
The Touch Select function lets you select a channel by touching
its fader.
[CH DISP] button
This button accesses the CHANNEL DISPLAY screen. It will
light red when the screen is shown.
fig.ChEdtBtn.eps
MAIN fader module
3
1
2
4
3
1
2
3
4
CHANNEL EDIT section
2
3
4
5
6 7 8
1
9
1
2
