Basic operation
Basic operation
When you press a screen select button that’s lit in green, or a screen select button that has a blue border, the corresponding screen or
popup will appear, and the button will light in red.
The following illustration shows the name of the screen or popup that appears for each button:

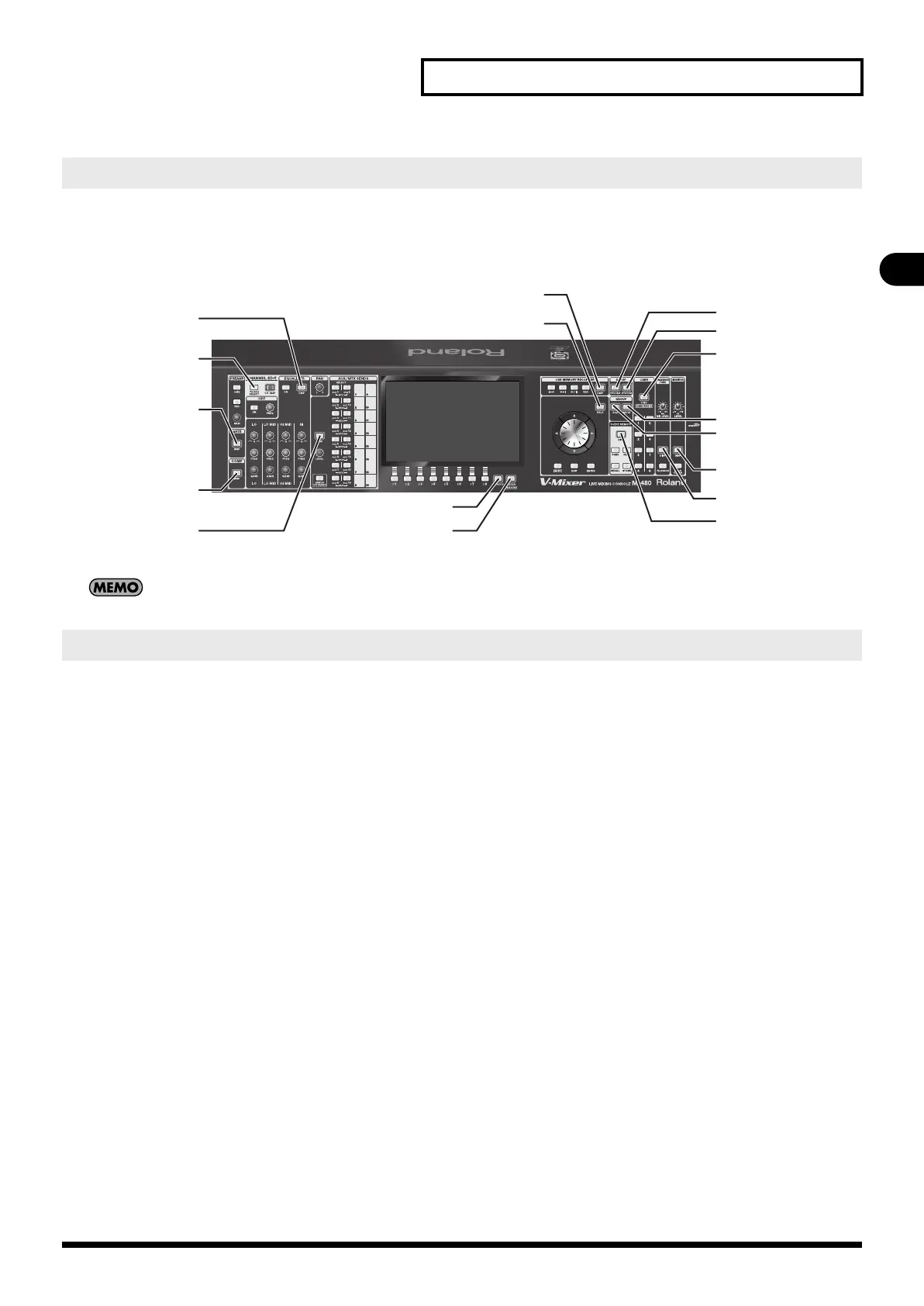

fig.DispBtnGuide.eps
Popups are displayed on top of the screen. You can close the popup by pressing the button that turned red when you accessed that popup.
To return to the Home screen, press the button that turned red when you pressed it to access a screen. (Buttons that access a popup are
excepted.)
A user setting lets you choose either the CHANNEL DISPLAY screen or the METER screen as the Home screen. For details on how to choose
the Home screen, refer to “Editing other user preferences” (p. 141).
Accessing a screen
Home screen
CHANNEL DISPLAY
screen
AUX/MTX SENDS
popup
SCENE screen
HELP CONTENTS popup
MONITOR screen
TALKBACK/
OSCILLATOR screen
METER screen
SYSTEM screen
EFFECTS screen
DCA GROUP screen
RECORDER screen
PATCHBAY screen
USER screen
COMPRESSOR/
LIMITER popup
GATE/EXPANDER
popup
4-BAND EQ popup
MUTE GROUP screen
