45
Input channel operations
Input channel operations

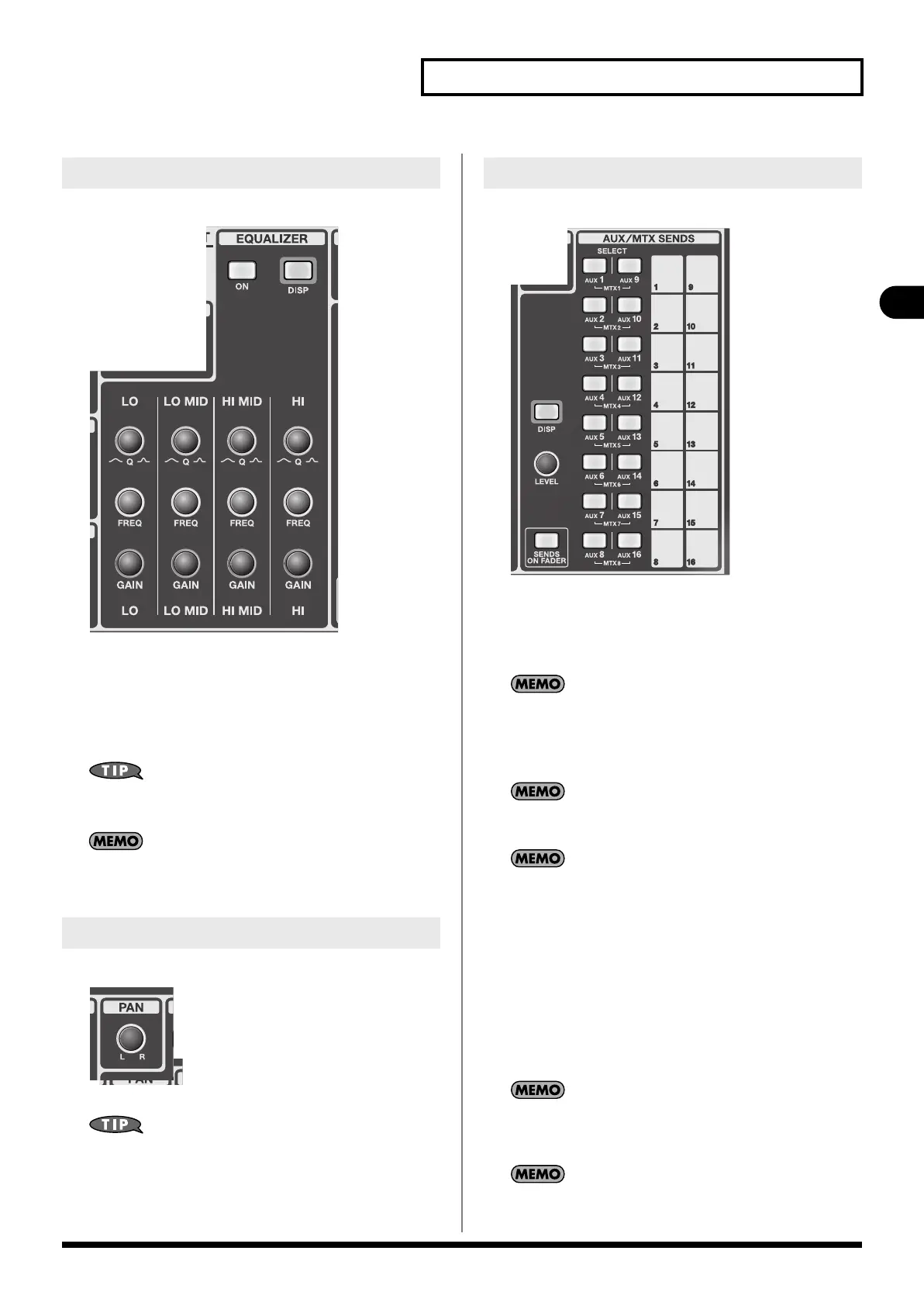

Use the EQUALIZER area to operate the 4-band EQ.
fig.ChEdtEQ.eps
1.
Press [ON] to turn the 4-band EQ on/off.
2.
Use the GAIN knob to adjust the gain.
3.
Use the FREQ knob to adjust the frequency.
4.
Use the Q knob to adjust the Q.
You can make fine adjustments by holding down [SHIFT] while you
operate the knob.
By pressing [DISP] you can access the 4-BAND EQ popup, where
you can make detailed settings for the 4-band EQ. For details,
refer to “4-band EQ operations” (p. 82).
Use the PAN area to adjust the PAN.
fig.ChEdtPan.eps
1.
Use the PAN knob to adjust the pan.
You can make fine adjustments by holding down [SHIFT] while you
operate the knob.
Use the AUX/MTX SENDS area to perform these operations.
fig.ChEdtAux.eps
Using the SEND LEVEL knob
1.
Press [AUX1]–[AUX16] to select the send-destination
AUX/MTX bus.
To select an MTX as the send-destination, hold down one of the
[AUX1]–[AUX8], and press its right side [AUX9]–[AUX16].
2.
Use the LEVEL encoder to adjust the amount sent to the
selected AUX/MTX bus.
You can make fine adjustments by holding down [SHIFT] while
you operate SEND LEVEL.
You can turn the corresponding send switch on/off by holding
down [SHIFT] and pressing [AUX1]–[AUX16].
Using the SENDS ON FADER
1.
Press [AUX1]–[AUX16] to select the send-destination
AUX bus.
2.
Press [SENDS ON FADER] so it is blinking.
3.
Use the top panel faders to adjust the amount sent from
each input channel to the selected AUX/MTX bus.
If the MAIN FADER item “SENDS ON FADER MASTER” in User
Preference (p. 141) is checked, the MAIN fader module becomes
the send-destination AUX/MTX fader.
By pressing [DISP] you can access the AUX (MTX) SENDS popup.
For details, refer to “AUX (MTX) SENDS popup” (p. 84).
4-band EQ operations
Adjusting the pan
Sending to the AUX/MTX buses
M-480_e.book 45 ページ ２０１１年３月２日 水曜日 午前９時２０分
